Element diggs:Uncertainty
Namespace http://diggsml.org/schemas/3
Annotations

An object that defines uncertainty values for the coordinates of a location.
Uncertainty values must be expressed in the same unit of measure as the
corresponding coordinate axis of the CRS of the associated geometry.

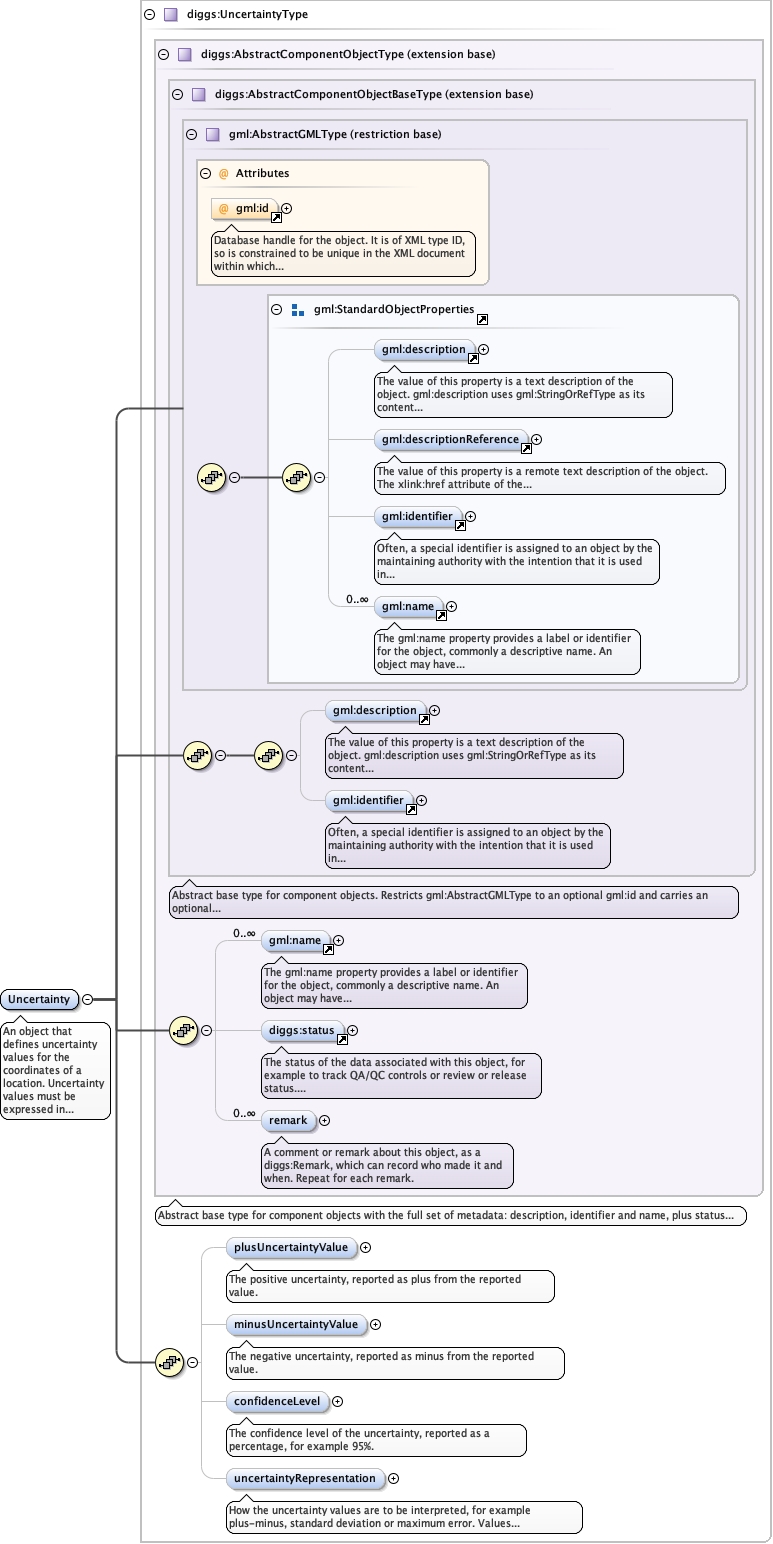

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeCommon_xsd_Complex_Type_diggs_UncertaintyType.tmp#UncertaintyType_plusUncertaintyValueCommon_xsd_Complex_Type_diggs_UncertaintyType.tmp#UncertaintyType_minusUncertaintyValueCommon_xsd_Complex_Type_diggs_UncertaintyType.tmp#UncertaintyType_confidenceLevelCommon_xsd_Complex_Type_diggs_UncertaintyType.tmp#UncertaintyType_uncertaintyRepresentationCommon_xsd_Complex_Type_diggs_UncertaintyType.tmp#UncertaintyType
Type diggs:UncertaintyType
Type hierarchy
Properties
content complex
abstract false
Used by
Model
Children diggs:confidenceLevel, diggs:minusUncertaintyValue, diggs:plusUncertaintyValue, diggs:remark, diggs:status, diggs:uncertaintyRepresentation, gml:description, gml:identifier, gml:name
Instance

<diggs:Uncertainty gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:plusUncertaintyValue howDetermined="" qualifier="">{0,1}</diggs:plusUncertaintyValue>
  <diggs:minusUncertaintyValue howDetermined="" qualifier="">{0,1}</diggs:minusUncertaintyValue>
  <diggs:confidenceLevel howDetermined="" qualifier="" uom="">{0,1}</diggs:confidenceLevel>
  <diggs:uncertaintyRepresentation>{0,1}</diggs:uncertaintyRepresentation>
</diggs:Uncertainty>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="Uncertainty" type="diggs:UncertaintyType" abstract="false">
  <annotation>
    <documentation>An object that defines uncertainty values for the coordinates of a location. Uncertainty values must be expressed in the same unit of measure as the corresponding coordinate axis of the CRS of the associated geometry.</documentation>
  </annotation>
</element>
