Complex Type diggs:PatchedLocationUncertaintyPropertyType
Namespace http://diggsml.org/schemas/3
Annotations
Property type that contains one object, a diggs:LocationUncertainty or a
diggs:Uncertainty, inline. The diggs:Uncertainty branch is deprecated and retained
only for pre-3.1 instances of diggs:Solid, diggs:Shell and diggs:PlanarSurfacePatch,
the three geometry types that carried this property type before it existed; select
diggs:LocationUncertainty instead.

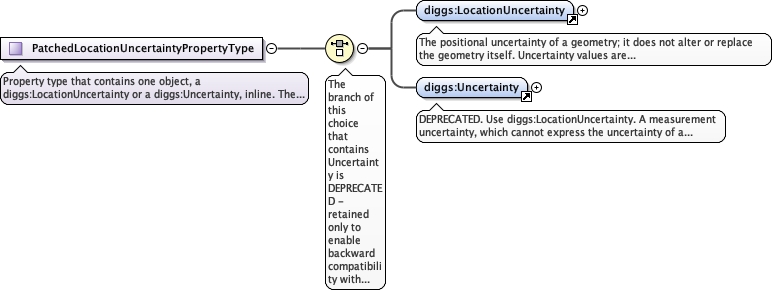

Diagram
DiagramCommon_xsd_Element_diggs_LocationUncertainty.tmp#LocationUncertaintyCommon_xsd_Element_diggs_Uncertainty.tmp#Uncertainty
Used by
Model
Children diggs:LocationUncertainty, diggs:Uncertainty
Source
<complexType name="PatchedLocationUncertaintyPropertyType">
  <annotation>
    <documentation>Property type that contains one object, a diggs:LocationUncertainty or a diggs:Uncertainty, inline. The diggs:Uncertainty branch is deprecated and retained only for pre-3.1 instances of diggs:Solid, diggs:Shell and diggs:PlanarSurfacePatch, the three geometry types that carried this property type before it existed; select diggs:LocationUncertainty instead.</documentation>
  </annotation>
  <choice>
    <annotation>
      <documentation>The branch of this choice that contains Uncertainty is DEPRECATED - retained only to enable backward compatibility with version 3.0.0. For version 3.1 and higher, use only the branch containing LocationUncertainty.</documentation>
    </annotation>
    <element ref="diggs:LocationUncertainty" minOccurs="1" maxOccurs="1"/>
    <element ref="diggs:Uncertainty">
      <annotation>
        <appinfo>
          <diggs:deprecated since="3.1.0" replacedBy="diggs:LocationUncertainty"/>
        </appinfo>
        <documentation>DEPRECATED. Use diggs:LocationUncertainty. A measurement uncertainty, which cannot express the uncertainty of a position.</documentation>
      </annotation>
    </element>
  </choice>
</complexType>
