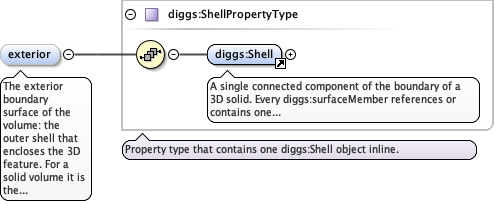

Element diggs:SolidType / diggs:exterior
Namespace http://diggsml.org/schemas/3
Annotations

The exterior boundary surface of the volume: the outer shell that
encloses the 3D feature. For a solid volume it is the only boundary
surface needed.
Diagram
DiagramExtSamplingFeatures_xsd_Element_diggs_Shell.tmp#ShellExtSamplingFeatures_xsd_Complex_Type_diggs_ShellPropertyType.tmp#ShellPropertyType
Type diggs:ShellPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Shell
Instance

<diggs:exterior xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Shell aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:Shell>
</diggs:exterior>
Source

<element minOccurs="0" name="exterior" type="diggs:ShellPropertyType">
  <annotation>
    <documentation>The exterior boundary surface of the volume: the outer shell that encloses the 3D feature. For a solid volume it is the only boundary surface needed.</documentation>
  </annotation>
</element>

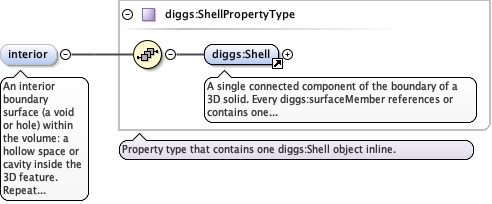

Element diggs:SolidType / diggs:interior
Namespace http://diggsml.org/schemas/3
Annotations

An interior boundary surface (a void or hole) within the volume: a
hollow space or cavity inside the 3D feature. Repeat for each void.
Not needed for a volume without internal voids.
Diagram
DiagramExtSamplingFeatures_xsd_Element_diggs_Shell.tmp#ShellExtSamplingFeatures_xsd_Complex_Type_diggs_ShellPropertyType.tmp#ShellPropertyType
Type diggs:ShellPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Shell
Instance

<diggs:interior xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Shell aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:Shell>
</diggs:interior>
Source

<element maxOccurs="unbounded" minOccurs="0" name="interior" type="diggs:ShellPropertyType">
  <annotation>
    <documentation>An interior boundary surface (a void or hole) within the volume: a hollow space or cavity inside the 3D feature. Repeat for each void. Not needed for a volume without internal voids.</documentation>
  </annotation>
</element>

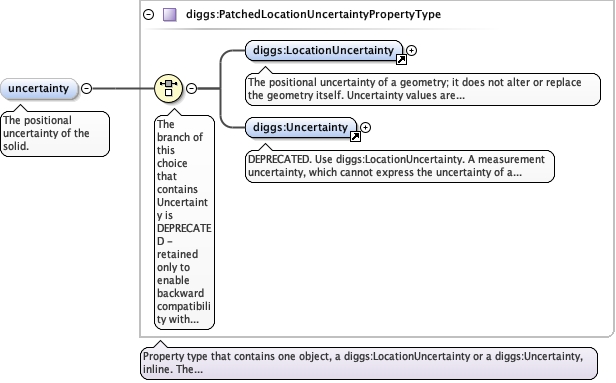

Element diggs:SolidType / diggs:uncertainty
Namespace http://diggsml.org/schemas/3
Annotations

The positional uncertainty of the solid.
Diagram
DiagramCommon_xsd_Element_diggs_LocationUncertainty.tmp#LocationUncertaintyCommon_xsd_Element_diggs_Uncertainty.tmp#UncertaintyCommon_xsd_Complex_Type_diggs_PatchedLocationUncertaintyPropertyType.tmp#PatchedLocationUncertaintyPropertyType
Type diggs:PatchedLocationUncertaintyPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:LocationUncertainty, diggs:Uncertainty
Instance

<diggs:uncertainty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LocationUncertainty gml:id="">{1,1}</diggs:LocationUncertainty>
  <diggs:Uncertainty gml:id="">{1,1}</diggs:Uncertainty>
</diggs:uncertainty>
Source

<element minOccurs="0" name="uncertainty" type="diggs:PatchedLocationUncertaintyPropertyType">
  <annotation>
    <documentation>The positional uncertainty of the solid.</documentation>
  </annotation>
</element>

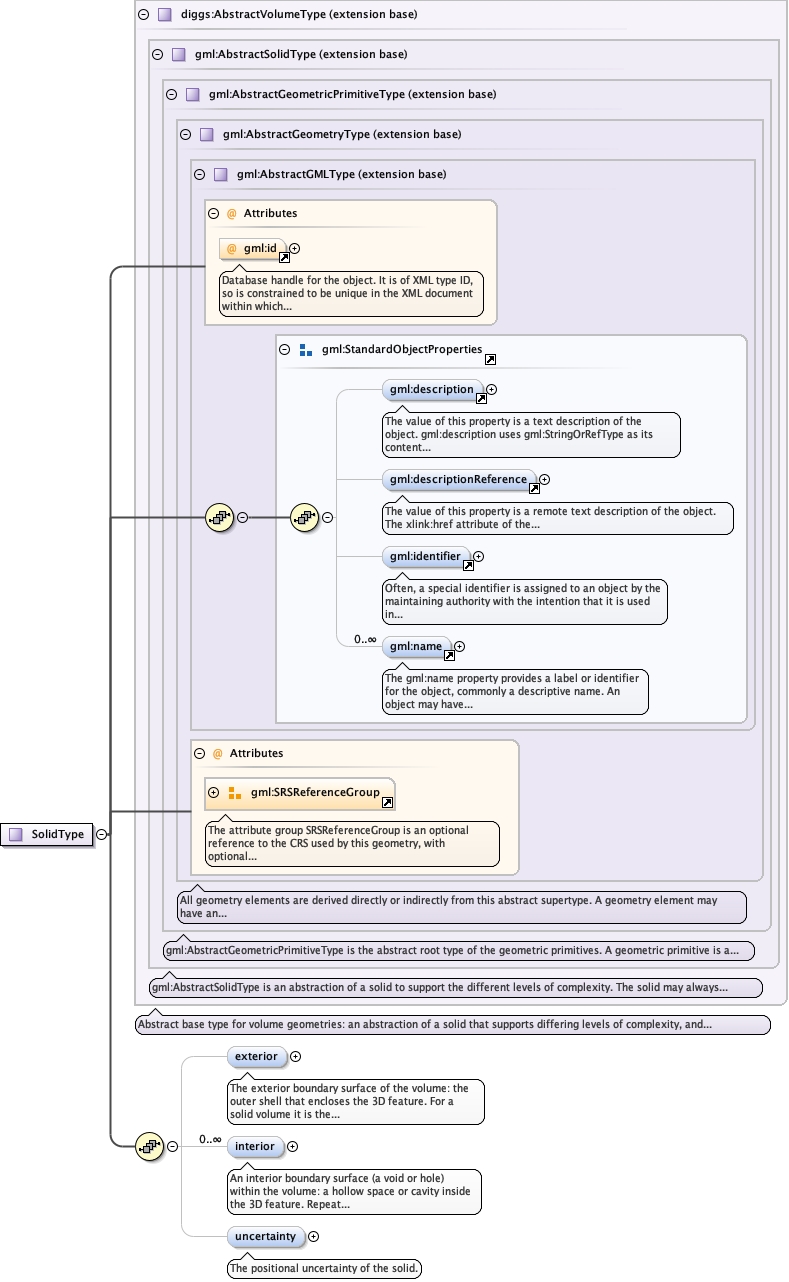

Complex Type diggs:SolidType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometricPrimitiveType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometricPrimitiveTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractSolidType.tmp#AbstractSolidTypeExtSamplingFeatures_xsd_Complex_Type_diggs_AbstractVolumeType.tmp#AbstractVolumeTypeExtSamplingFeatures_xsd_Complex_Type_diggs_SolidType.tmp#SolidType_exteriorExtSamplingFeatures_xsd_Complex_Type_diggs_SolidType.tmp#SolidType_interiorExtSamplingFeatures_xsd_Complex_Type_diggs_SolidType.tmp#SolidType_uncertainty
Type extension of diggs:AbstractVolumeType
Type hierarchy
Used by
Element diggs:Solid
Model
Children diggs:exterior, diggs:interior, diggs:uncertainty, gml:description, gml:descriptionReference, gml:identifier, gml:name
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<complexType name="SolidType">
  <complexContent>
    <extension base="diggs:AbstractVolumeType">
      <sequence>
        <element minOccurs="0" name="exterior" type="diggs:ShellPropertyType">
          <annotation>
            <documentation>The exterior boundary surface of the volume: the outer shell that encloses the 3D feature. For a solid volume it is the only boundary surface needed.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="interior" type="diggs:ShellPropertyType">
          <annotation>
            <documentation>An interior boundary surface (a void or hole) within the volume: a hollow space or cavity inside the 3D feature. Repeat for each void. Not needed for a volume without internal voids.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="uncertainty" type="diggs:PatchedLocationUncertaintyPropertyType">
          <annotation>
            <documentation>The positional uncertainty of the solid.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
