Element diggs:Solid
Namespace http://diggsml.org/schemas/3
Annotations

A geometry object that forms the basis for 3D geometry: a volume bounded by shells.
exterior specifies the outer boundary and interior the inner boundaries (voids or
holes) of the solid.

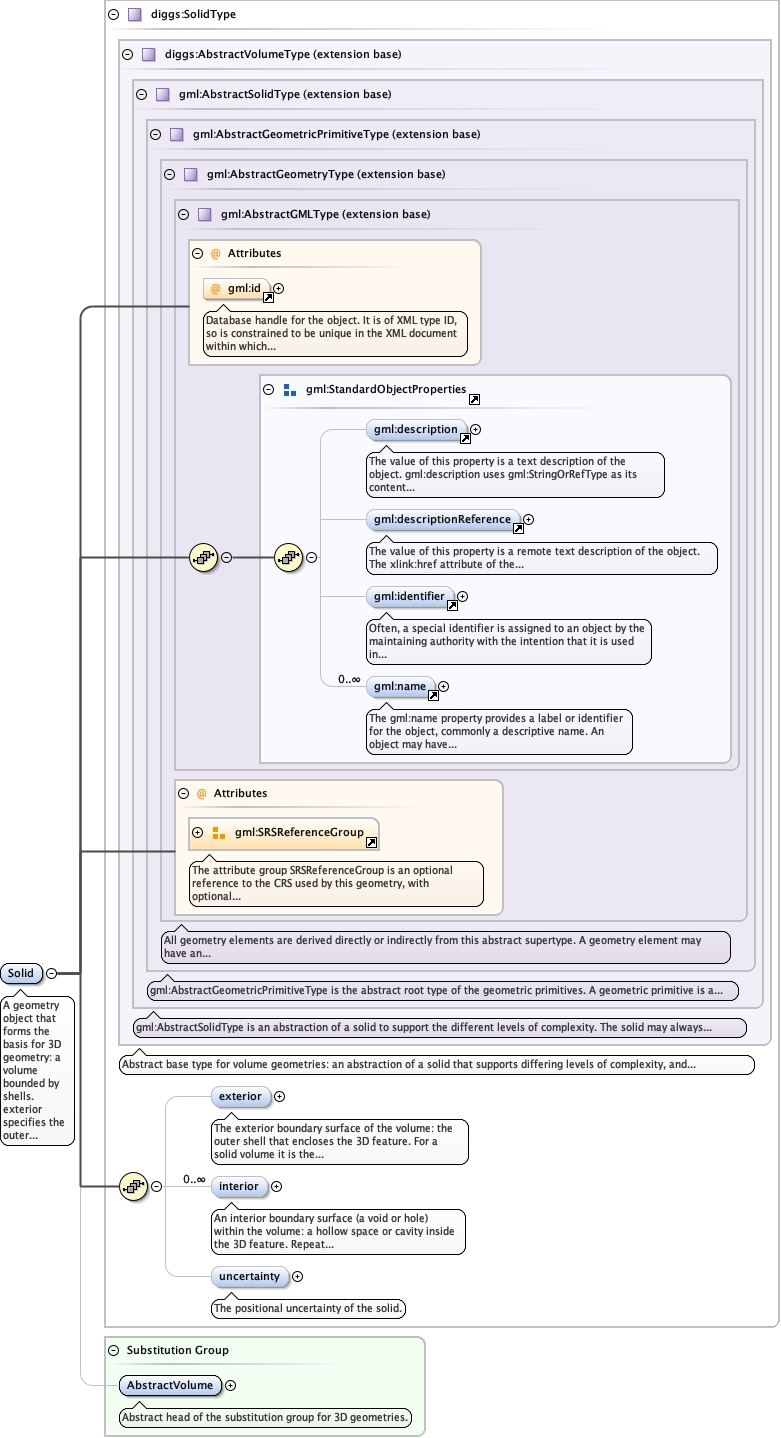

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometricPrimitiveType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometricPrimitiveTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractSolidType.tmp#AbstractSolidTypeExtSamplingFeatures_xsd_Complex_Type_diggs_AbstractVolumeType.tmp#AbstractVolumeTypeExtSamplingFeatures_xsd_Complex_Type_diggs_SolidType.tmp#SolidType_exteriorExtSamplingFeatures_xsd_Complex_Type_diggs_SolidType.tmp#SolidType_interiorExtSamplingFeatures_xsd_Complex_Type_diggs_SolidType.tmp#SolidType_uncertaintyExtSamplingFeatures_xsd_Complex_Type_diggs_SolidType.tmp#SolidTypeExtSamplingFeatures_xsd_Element_diggs_AbstractVolume.tmp#AbstractVolume
Type diggs:SolidType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:exterior, diggs:interior, diggs:uncertainty, gml:description, gml:descriptionReference, gml:identifier, gml:name
Instance

<diggs:Solid axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:descriptionReference xlink:href="" nilReason="" owns="false">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:exterior>{0,1}</diggs:exterior>
  <diggs:interior>{0,unbounded}</diggs:interior>
  <diggs:uncertainty>{0,1}</diggs:uncertainty>
</diggs:Solid>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="Solid" substitutionGroup="diggs:AbstractVolume" type="diggs:SolidType">
  <annotation>
    <documentation>A geometry object that forms the basis for 3D geometry: a volume bounded by shells. exterior specifies the outer boundary and interior the inner boundaries (voids or holes) of the solid.</documentation>
  </annotation>
</element>
