Complex Type diggs:AbstractVolumeType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for volume geometries: an abstraction of a solid that supports
differing levels of complexity, and is always a continuous geometric primitive. It
extends gml:AbstractSolidType, GML's equivalent concept (DIGGS names it "Volume"
rather than "Solid"). Use one of its concrete extensions, for example diggs:Solid.

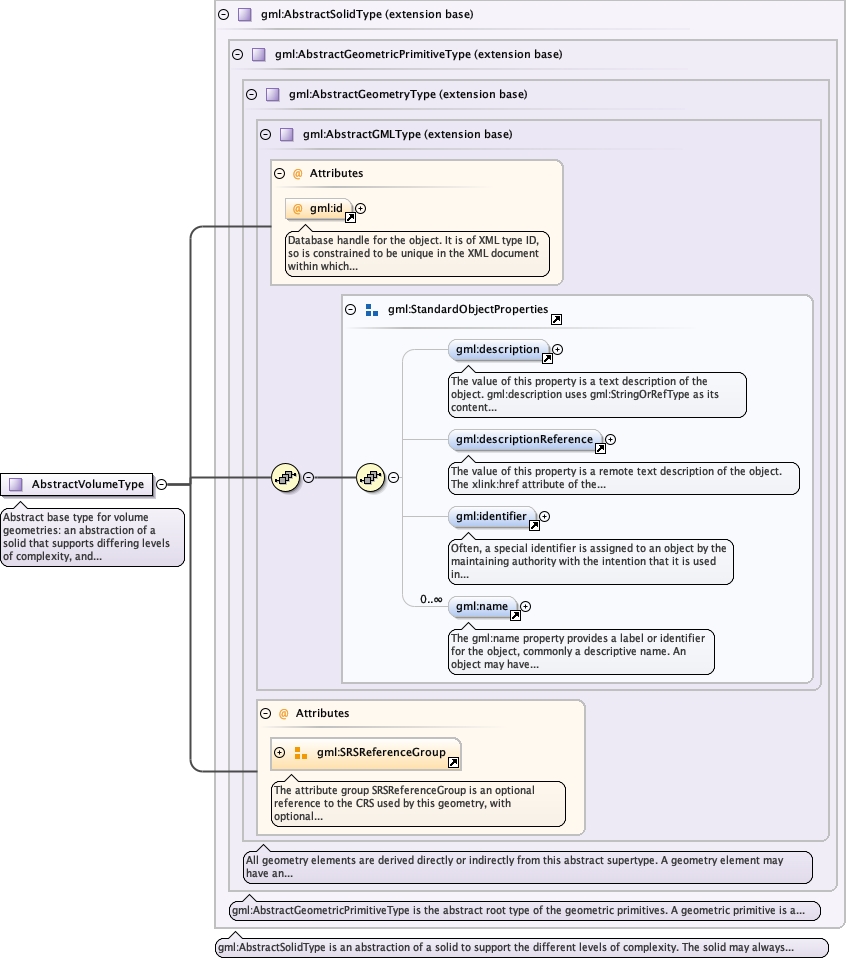

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometricPrimitiveType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometricPrimitiveTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractSolidType.tmp#AbstractSolidType
Type extension of gml:AbstractSolidType
Type hierarchy
Properties
abstract true
Used by
Model
Children gml:description, gml:descriptionReference, gml:identifier, gml:name
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<complexType abstract="true" name="AbstractVolumeType">
  <annotation>
    <documentation>Abstract base type for volume geometries: an abstraction of a solid that supports differing levels of complexity, and is always a continuous geometric primitive. It extends gml:AbstractSolidType, GML's equivalent concept (DIGGS names it "Volume" rather than "Solid"). Use one of its concrete extensions, for example diggs:Solid.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractSolidType"/>
  </complexContent>
</complexType>
