Element diggs:SurfaceBoundedSolidType / diggs:footprint
Namespace http://diggsml.org/schemas/3
Annotations

The lateral extent of the volume: one planar polygon
(diggs:PlanarSurface) whose boundary is the trace of the vertical
sides, or several disjoint polygons (diggs:MultiSurface, each member
expected to be a diggs:PlanarSurface) when the plan-view extent is
itself disconnected, for instance a geologic unit present as
separate unconnected patches. Unlike topSurface and bottomSurface,
which are each one continuous surface, the footprint may be a
diggs:MultiSurface, because each component is one planar region and
walls are erected on each component's own boundary; a MultiSurface
footprint over one pair of continuous bounding surfaces yields a
separate body for each member. Each component's exterior ring is its
outer wall; each interior ring is a hole through the body and
generates its own wall. Components shall not overlap in plan view.
The footprint is normally horizontal and authored as a plan-view
polygon, but the content model does not require it. Elevation
carried by the footprint's coordinates is not the volume's top or
bottom: the footprint supplies (x, y) only, and the bounding
surfaces supply elevation.

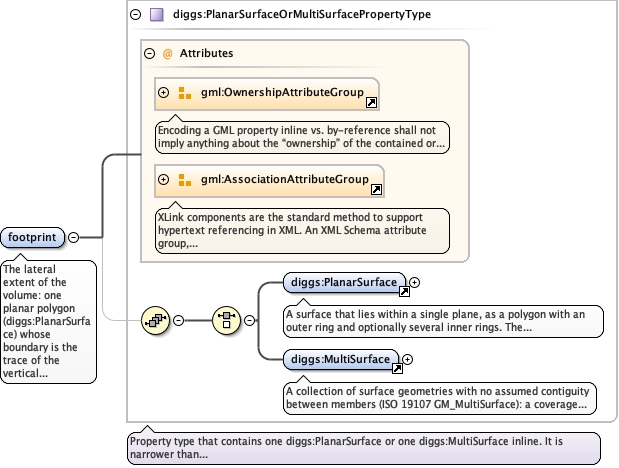

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PlanarSurface.tmp#PlanarSurfaceCore_xsd_Element_diggs_MultiSurface.tmp#MultiSurfaceCore_xsd_Complex_Type_diggs_PlanarSurfaceOrMultiSurfacePropertyType.tmp#PlanarSurfaceOrMultiSurfacePropertyType
Type diggs:PlanarSurfaceOrMultiSurfacePropertyType
Properties
content complex
Model
Children diggs:MultiSurface, diggs:PlanarSurface
Instance

<diggs:footprint xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PlanarSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PlanarSurface>
  <diggs:MultiSurface aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:MultiSurface>
</diggs:footprint>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="footprint" type="diggs:PlanarSurfaceOrMultiSurfacePropertyType">
  <annotation>
    <documentation>The lateral extent of the volume: one planar polygon (diggs:PlanarSurface) whose boundary is the trace of the vertical sides, or several disjoint polygons (diggs:MultiSurface, each member expected to be a diggs:PlanarSurface) when the plan-view extent is itself disconnected, for instance a geologic unit present as separate unconnected patches. Unlike topSurface and bottomSurface, which are each one continuous surface, the footprint may be a diggs:MultiSurface, because each component is one planar region and walls are erected on each component's own boundary; a MultiSurface footprint over one pair of continuous bounding surfaces yields a separate body for each member. Each component's exterior ring is its outer wall; each interior ring is a hole through the body and generates its own wall. Components shall not overlap in plan view. The footprint is normally horizontal and authored as a plan-view polygon, but the content model does not require it. Elevation carried by the footprint's coordinates is not the volume's top or bottom: the footprint supplies (x, y) only, and the bounding surfaces supply elevation.</documentation>
  </annotation>
</element>
Element diggs:SurfaceBoundedSolidType / diggs:topSurface
Namespace http://diggsml.org/schemas/3
Annotations

The upper bounding surface of the volume; for a geologic body, the
top of the unit. It is one continuous surface: a
diggs:PlanarSurface, a multi-patch diggs:MultiPlanarSurface or
diggs:CompositeSurface (whose patches or members share boundaries, a
step being a vertical member), or a diggs:TriangulatedSurface mesh;
not a diggs:MultiSurface. It shall extend to or beyond the footprint
over the footprint's whole area. The portion outside the footprint
is not part of the solid, which allows one authored surface to serve
several adjacent bodies.

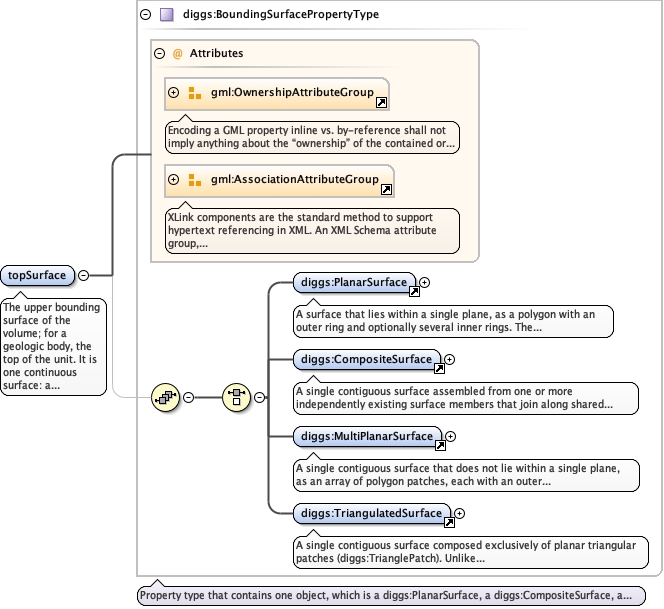

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PlanarSurface.tmp#PlanarSurfaceCore_xsd_Element_diggs_CompositeSurface.tmp#CompositeSurfaceCore_xsd_Element_diggs_MultiPlanarSurface.tmp#MultiPlanarSurfaceExtSamplingFeatures_xsd_Element_diggs_TriangulatedSurface.tmp#TriangulatedSurfaceExtSamplingFeatures_xsd_Complex_Type_diggs_BoundingSurfacePropertyType.tmp#BoundingSurfacePropertyType
Type diggs:BoundingSurfacePropertyType
Properties
content complex
Model
Children diggs:CompositeSurface, diggs:MultiPlanarSurface, diggs:PlanarSurface, diggs:TriangulatedSurface
Instance

<diggs:topSurface xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PlanarSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PlanarSurface>
  <diggs:CompositeSurface aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:CompositeSurface>
  <diggs:MultiPlanarSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:MultiPlanarSurface>
  <diggs:TriangulatedSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:TriangulatedSurface>
</diggs:topSurface>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="topSurface" type="diggs:BoundingSurfacePropertyType">
  <annotation>
    <documentation>The upper bounding surface of the volume; for a geologic body, the top of the unit. It is one continuous surface: a diggs:PlanarSurface, a multi-patch diggs:MultiPlanarSurface or diggs:CompositeSurface (whose patches or members share boundaries, a step being a vertical member), or a diggs:TriangulatedSurface mesh; not a diggs:MultiSurface. It shall extend to or beyond the footprint over the footprint's whole area. The portion outside the footprint is not part of the solid, which allows one authored surface to serve several adjacent bodies.</documentation>
  </annotation>
</element>
Element diggs:SurfaceBoundedSolidType / diggs:bottomSurface
Namespace http://diggsml.org/schemas/3
Annotations

The lower bounding surface of the volume; for a geologic body, the
base of the unit, which is commonly the top of the unit below and
may be the same surface object cited twice by reference. It admits
the same surfaces as topSurface and is subject to the same coverage
requirement. It may touch or cross topSurface: where it lies at or
above the top the body pinches out and that part of the footprint is
empty; see diggs:SurfaceBoundedSolid.

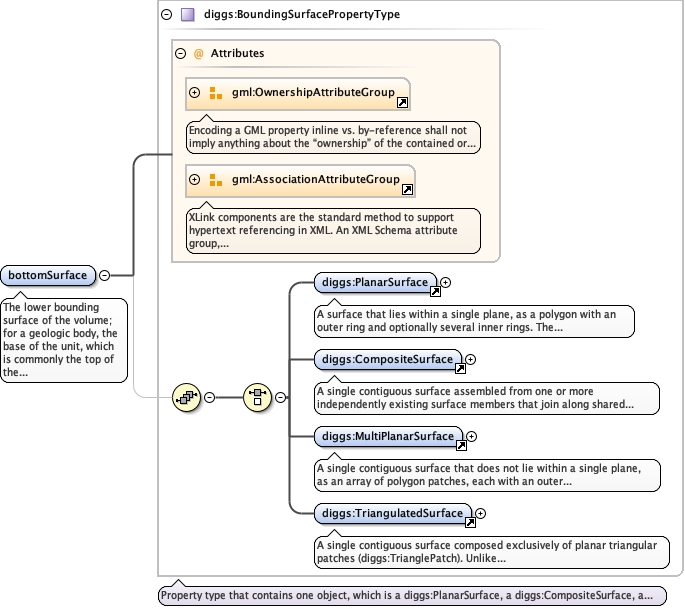

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PlanarSurface.tmp#PlanarSurfaceCore_xsd_Element_diggs_CompositeSurface.tmp#CompositeSurfaceCore_xsd_Element_diggs_MultiPlanarSurface.tmp#MultiPlanarSurfaceExtSamplingFeatures_xsd_Element_diggs_TriangulatedSurface.tmp#TriangulatedSurfaceExtSamplingFeatures_xsd_Complex_Type_diggs_BoundingSurfacePropertyType.tmp#BoundingSurfacePropertyType
Type diggs:BoundingSurfacePropertyType
Properties
content complex
Model
Children diggs:CompositeSurface, diggs:MultiPlanarSurface, diggs:PlanarSurface, diggs:TriangulatedSurface
Instance

<diggs:bottomSurface xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PlanarSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PlanarSurface>
  <diggs:CompositeSurface aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:CompositeSurface>
  <diggs:MultiPlanarSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:MultiPlanarSurface>
  <diggs:TriangulatedSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:TriangulatedSurface>
</diggs:bottomSurface>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="bottomSurface" type="diggs:BoundingSurfacePropertyType">
  <annotation>
    <documentation>The lower bounding surface of the volume; for a geologic body, the base of the unit, which is commonly the top of the unit below and may be the same surface object cited twice by reference. It admits the same surfaces as topSurface and is subject to the same coverage requirement. It may touch or cross topSurface: where it lies at or above the top the body pinches out and that part of the footprint is empty; see diggs:SurfaceBoundedSolid.</documentation>
  </annotation>
</element>
Element diggs:SurfaceBoundedSolidType / diggs:uncertainty
Namespace http://diggsml.org/schemas/3
Annotations

The positional uncertainty of the volume as a whole. Uncertainty
specific to one bounding surface belongs on that surface's own
uncertainty property.

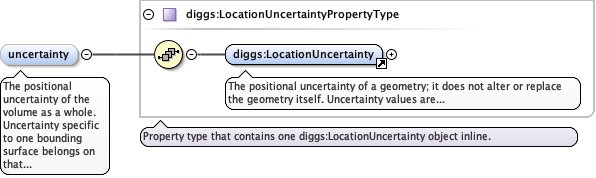

Diagram
DiagramCommon_xsd_Element_diggs_LocationUncertainty.tmp#LocationUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyPropertyType.tmp#LocationUncertaintyPropertyType
Type diggs:LocationUncertaintyPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:LocationUncertainty
Instance

<diggs:uncertainty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LocationUncertainty gml:id="">{1,1}</diggs:LocationUncertainty>
</diggs:uncertainty>
Source

<element minOccurs="0" name="uncertainty" type="diggs:LocationUncertaintyPropertyType">
  <annotation>
    <documentation>The positional uncertainty of the volume as a whole. Uncertainty specific to one bounding surface belongs on that surface's own uncertainty property.</documentation>
  </annotation>
</element>
Complex Type diggs:SurfaceBoundedSolidType
Namespace http://diggsml.org/schemas/3

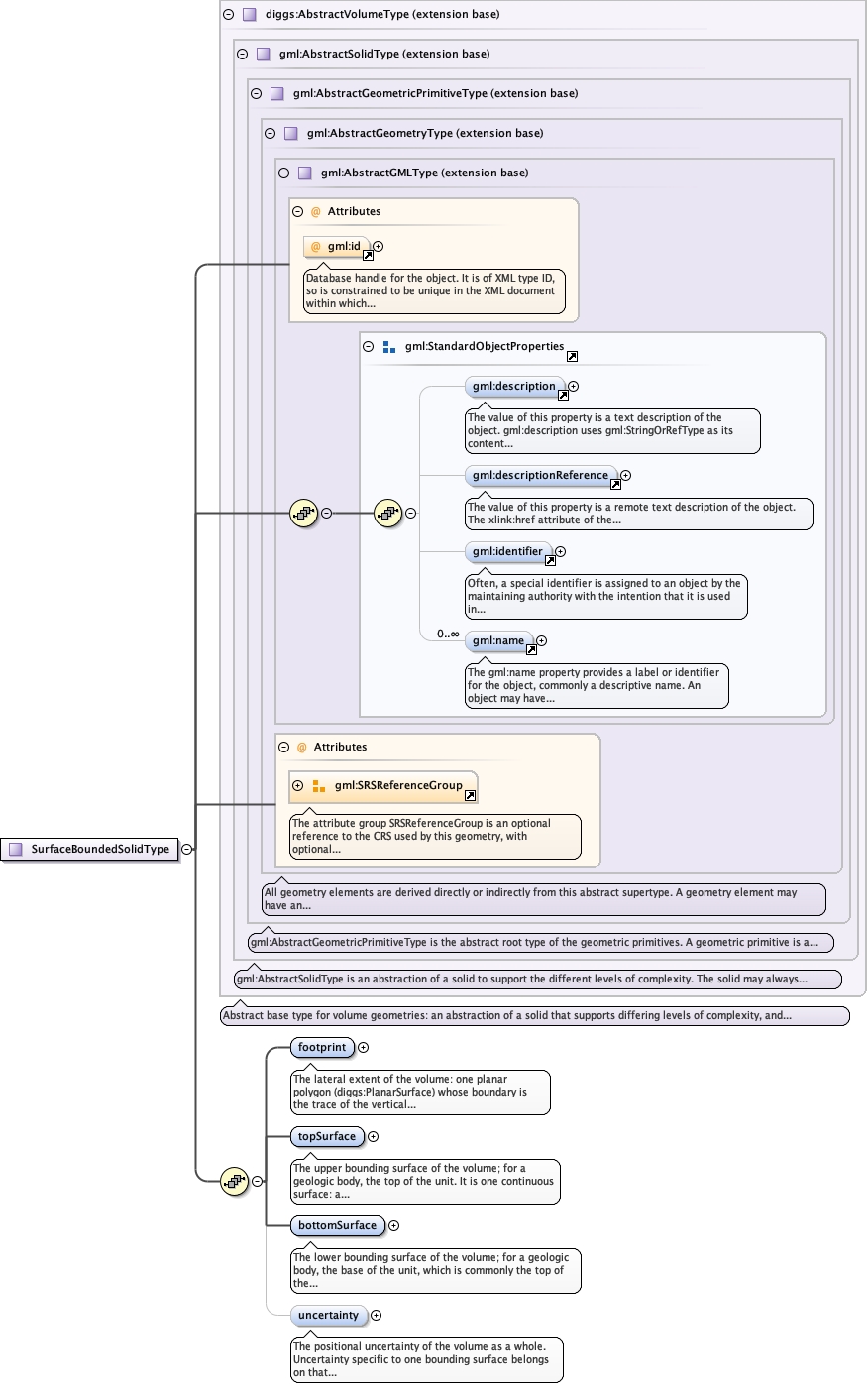

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometricPrimitiveType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometricPrimitiveTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractSolidType.tmp#AbstractSolidTypeExtSamplingFeatures_xsd_Complex_Type_diggs_AbstractVolumeType.tmp#AbstractVolumeTypeExtSamplingFeatures_xsd_Complex_Type_diggs_SurfaceBoundedSolidType.tmp#SurfaceBoundedSolidType_footprintExtSamplingFeatures_xsd_Complex_Type_diggs_SurfaceBoundedSolidType.tmp#SurfaceBoundedSolidType_topSurfaceExtSamplingFeatures_xsd_Complex_Type_diggs_SurfaceBoundedSolidType.tmp#SurfaceBoundedSolidType_bottomSurfaceExtSamplingFeatures_xsd_Complex_Type_diggs_SurfaceBoundedSolidType.tmp#SurfaceBoundedSolidType_uncertainty
Type extension of diggs:AbstractVolumeType
Type hierarchy
Used by
Model
Children diggs:bottomSurface, diggs:footprint, diggs:topSurface, diggs:uncertainty, gml:description, gml:descriptionReference, gml:identifier, gml:name
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<complexType name="SurfaceBoundedSolidType">
  <complexContent>
    <extension base="diggs:AbstractVolumeType">
      <sequence>
        <element name="footprint" type="diggs:PlanarSurfaceOrMultiSurfacePropertyType">
          <annotation>
            <documentation>The lateral extent of the volume: one planar polygon (diggs:PlanarSurface) whose boundary is the trace of the vertical sides, or several disjoint polygons (diggs:MultiSurface, each member expected to be a diggs:PlanarSurface) when the plan-view extent is itself disconnected, for instance a geologic unit present as separate unconnected patches. Unlike topSurface and bottomSurface, which are each one continuous surface, the footprint may be a diggs:MultiSurface, because each component is one planar region and walls are erected on each component's own boundary; a MultiSurface footprint over one pair of continuous bounding surfaces yields a separate body for each member. Each component's exterior ring is its outer wall; each interior ring is a hole through the body and generates its own wall. Components shall not overlap in plan view. The footprint is normally horizontal and authored as a plan-view polygon, but the content model does not require it. Elevation carried by the footprint's coordinates is not the volume's top or bottom: the footprint supplies (x, y) only, and the bounding surfaces supply elevation.</documentation>
          </annotation>
        </element>
        <element name="topSurface" type="diggs:BoundingSurfacePropertyType">
          <annotation>
            <documentation>The upper bounding surface of the volume; for a geologic body, the top of the unit. It is one continuous surface: a diggs:PlanarSurface, a multi-patch diggs:MultiPlanarSurface or diggs:CompositeSurface (whose patches or members share boundaries, a step being a vertical member), or a diggs:TriangulatedSurface mesh; not a diggs:MultiSurface. It shall extend to or beyond the footprint over the footprint's whole area. The portion outside the footprint is not part of the solid, which allows one authored surface to serve several adjacent bodies.</documentation>
          </annotation>
        </element>
        <element name="bottomSurface" type="diggs:BoundingSurfacePropertyType">
          <annotation>
            <documentation>The lower bounding surface of the volume; for a geologic body, the base of the unit, which is commonly the top of the unit below and may be the same surface object cited twice by reference. It admits the same surfaces as topSurface and is subject to the same coverage requirement. It may touch or cross topSurface: where it lies at or above the top the body pinches out and that part of the footprint is empty; see diggs:SurfaceBoundedSolid.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="uncertainty" type="diggs:LocationUncertaintyPropertyType">
          <annotation>
            <documentation>The positional uncertainty of the volume as a whole. Uncertainty specific to one bounding surface belongs on that surface's own uncertainty property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
