Element diggs:MultiPlanarSurface
Namespace http://diggsml.org/schemas/3
Annotations

A single contiguous surface that does not lie within a single plane, as an array of
polygon patches, each with an outer ring and optionally inner rings. The points of a
patch are coplanar, and each patch shares an edge with an adjacent patch. Patches
are not individually addressable (no gml:id, no independent srsName); use
diggs:CompositeSurface when panels need their own CRS, gml:id or reuse by reference,
and diggs:MultiSurface for a collection with no assumed adjacency between members.

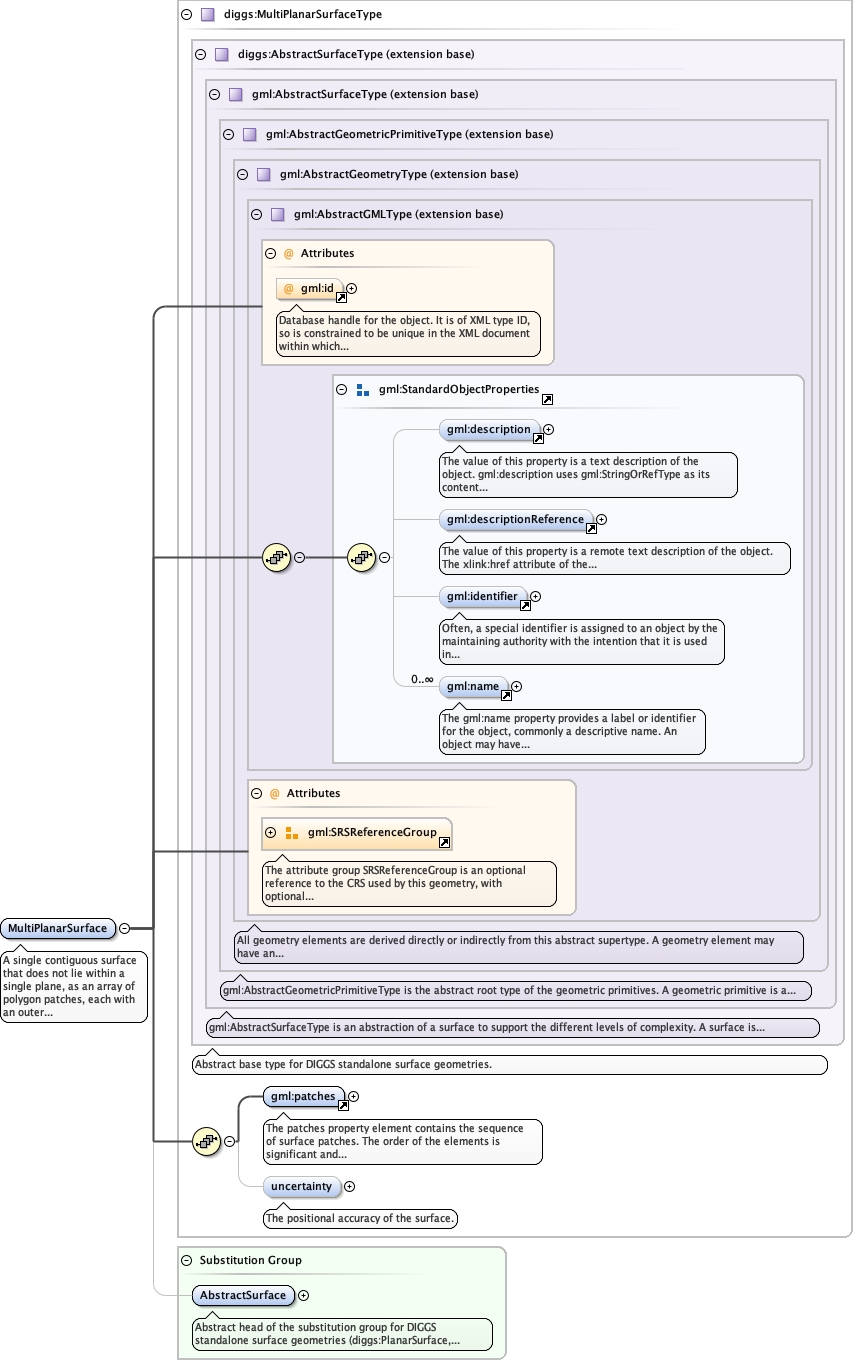

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometricPrimitiveType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometricPrimitiveTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractSurfaceType.tmp#http___www.opengis.net_gml_3.2_AbstractSurfaceTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSurfaceType.tmp#AbstractSurfaceTypegml3_2Profile_diggs_xsd_Element_gml_patches.tmp#patchesCore_xsd_Complex_Type_diggs_MultiPlanarSurfaceType.tmp#MultiPlanarSurfaceType_uncertaintyCore_xsd_Complex_Type_diggs_MultiPlanarSurfaceType.tmp#MultiPlanarSurfaceTypeAbstractTypes_xsd_Element_diggs_AbstractSurface.tmp#http___diggsml.org_schemas_3_AbstractSurface
Type diggs:MultiPlanarSurfaceType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children diggs:uncertainty, gml:description, gml:descriptionReference, gml:identifier, gml:name, gml:patches
Instance

<diggs:MultiPlanarSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:descriptionReference xlink:href="" nilReason="" owns="false">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:patches>{1,1}</gml:patches>
  <diggs:uncertainty>{0,1}</diggs:uncertainty>
</diggs:MultiPlanarSurface>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="MultiPlanarSurface" substitutionGroup="diggs:AbstractSurface" type="diggs:MultiPlanarSurfaceType">
  <annotation>
    <documentation>A single contiguous surface that does not lie within a single plane, as an array of polygon patches, each with an outer ring and optionally inner rings. The points of a patch are coplanar, and each patch shares an edge with an adjacent patch. Patches are not individually addressable (no gml:id, no independent srsName); use diggs:CompositeSurface when panels need their own CRS, gml:id or reuse by reference, and diggs:MultiSurface for a collection with no assumed adjacency between members.</documentation>
  </annotation>
</element>
XML Schema documentation generated by ® XML Editor.
