Element diggs:AbstractSurface
Namespace http://diggsml.org/schemas/3
Annotations

Abstract head of the substitution group for DIGGS standalone surface geometries
(diggs:PlanarSurface, diggs:MultiPlanarSurface, diggs:TriangulatedSurface,
diggs:CompositeSurface). It excludes diggs:Shell, which is one boundary component of
a solid rather than a surface in its own right. A property that wants any real
surface, not the boundary piece of a solid, should reference diggs:AbstractSurface
rather than gml:AbstractSurface.

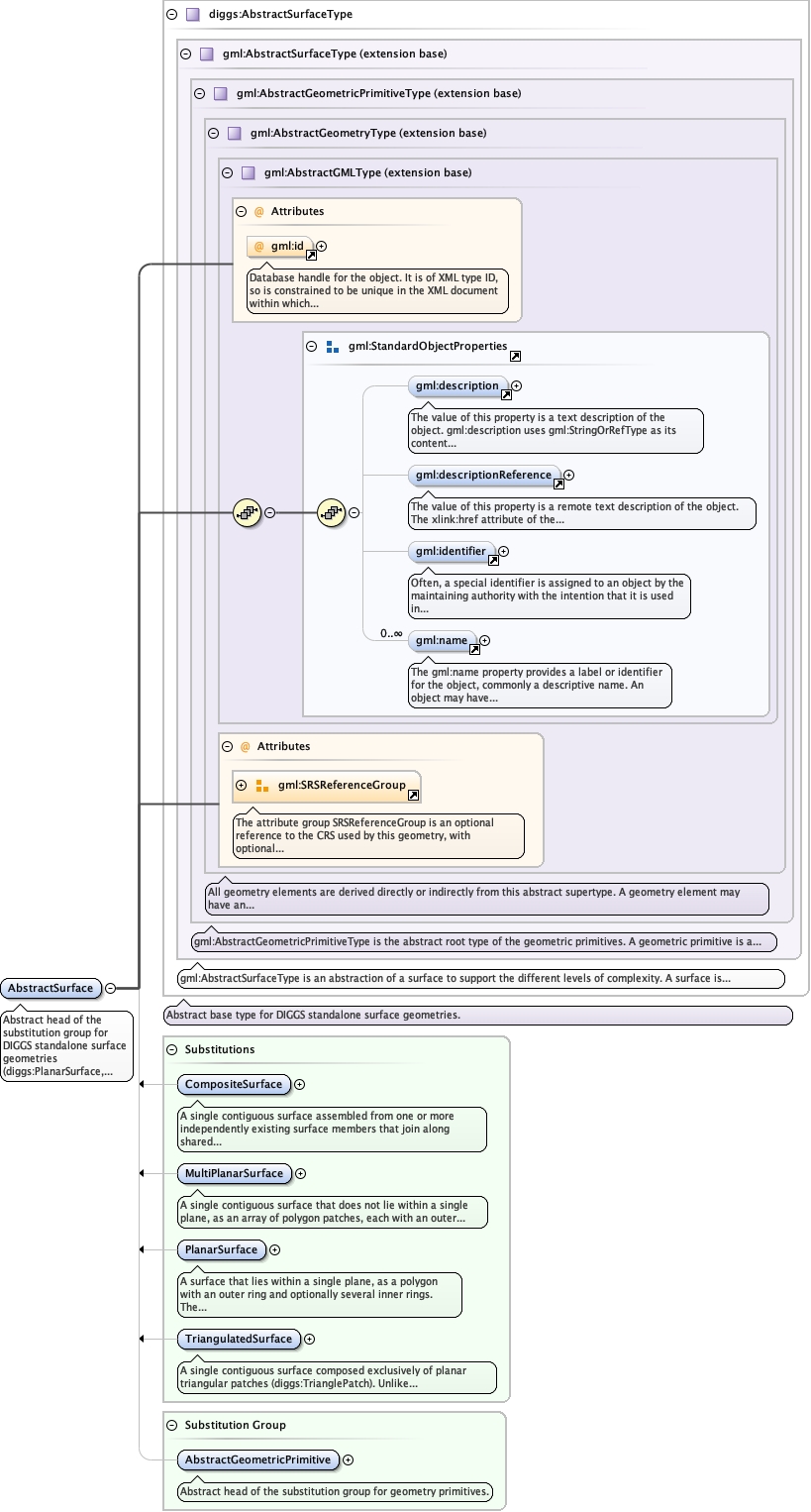

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometricPrimitiveType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometricPrimitiveTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractSurfaceType.tmp#http___www.opengis.net_gml_3.2_AbstractSurfaceTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSurfaceType.tmp#AbstractSurfaceTypeCore_xsd_Element_diggs_CompositeSurface.tmp#CompositeSurfaceCore_xsd_Element_diggs_MultiPlanarSurface.tmp#MultiPlanarSurfaceCore_xsd_Element_diggs_PlanarSurface.tmp#PlanarSurfaceExtSamplingFeatures_xsd_Element_diggs_TriangulatedSurface.tmp#TriangulatedSurfaceCore_xsd_Element_diggs_AbstractGeometricPrimitive.tmp#http___diggsml.org_schemas_3_AbstractGeometricPrimitive
Type diggs:AbstractSurfaceType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Used by
Complex Types diggs:SurfaceMemberPropertyType, diggs:SurfaceMembersArrayPropertyType, diggs:SurfacePropertyType
Model
gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name*
Children gml:description, gml:descriptionReference, gml:identifier, gml:name
Instance

<diggs:AbstractSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:descriptionReference xlink:href="" nilReason="" owns="false">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</diggs:AbstractSurface>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element abstract="true" name="AbstractSurface" substitutionGroup="diggs:AbstractGeometricPrimitive" type="diggs:AbstractSurfaceType">
  <annotation>
    <documentation>Abstract head of the substitution group for DIGGS standalone surface geometries (diggs:PlanarSurface, diggs:MultiPlanarSurface, diggs:TriangulatedSurface, diggs:CompositeSurface). It excludes diggs:Shell, which is one boundary component of a solid rather than a surface in its own right. A property that wants any real surface, not the boundary piece of a solid, should reference diggs:AbstractSurface rather than gml:AbstractSurface.</documentation>
  </annotation>
</element>
