Complex Type diggs:SurfaceMemberPropertyType
Namespace http://diggsml.org/schemas/3
Annotations

Property type that contains one object that substitutes for diggs:AbstractSurface
inline, or refers to one with xlink:href. Give either the reference or the contained
element, not both and not neither.

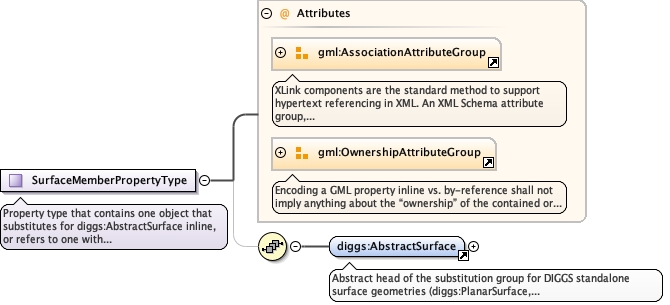

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupAbstractTypes_xsd_Element_diggs_AbstractSurface.tmp#http___diggsml.org_schemas_3_AbstractSurface
Used by
Model
Children diggs:AbstractSurface
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<complexType name="SurfaceMemberPropertyType">
  <annotation>
    <documentation>Property type that contains one object that substitutes for diggs:AbstractSurface inline, or refers to one with xlink:href. Give either the reference or the contained element, not both and not neither.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <element ref="diggs:AbstractSurface"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
  <attributeGroup ref="gml:OwnershipAttributeGroup"/>
</complexType>
