Element diggs:PlanarSurface
Namespace http://diggsml.org/schemas/3
Annotations

A surface that lies within a single plane, as a polygon with an outer ring and
optionally several inner rings. The coordinate points of all rings are coplanar.

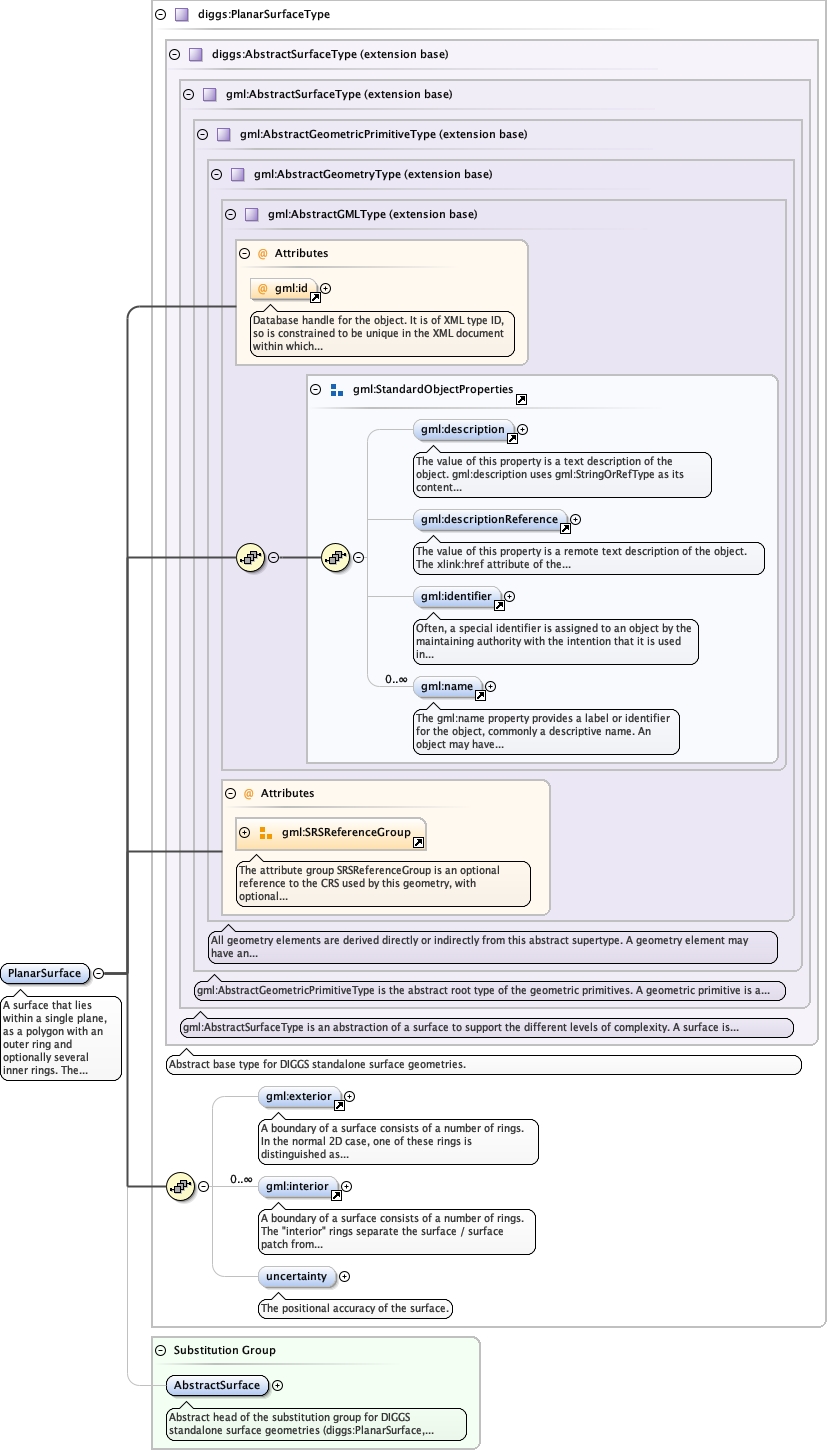

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometricPrimitiveType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometricPrimitiveTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractSurfaceType.tmp#http___www.opengis.net_gml_3.2_AbstractSurfaceTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSurfaceType.tmp#AbstractSurfaceTypegml3_2Profile_diggs_xsd_Element_gml_exterior.tmp#exteriorgml3_2Profile_diggs_xsd_Element_gml_interior.tmp#interiorCore_xsd_Complex_Type_diggs_PlanarSurfaceType.tmp#PlanarSurfaceType_uncertaintyCore_xsd_Complex_Type_diggs_PlanarSurfaceType.tmp#PlanarSurfaceTypeAbstractTypes_xsd_Element_diggs_AbstractSurface.tmp#http___diggsml.org_schemas_3_AbstractSurface
Type diggs:PlanarSurfaceType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children diggs:uncertainty, gml:description, gml:descriptionReference, gml:exterior, gml:identifier, gml:interior, gml:name
Instance

<diggs:PlanarSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:descriptionReference xlink:href="" nilReason="" owns="false">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:exterior>{0,1}</gml:exterior>
  <gml:interior>{0,unbounded}</gml:interior>
  <diggs:uncertainty>{0,1}</diggs:uncertainty>
</diggs:PlanarSurface>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="PlanarSurface" substitutionGroup="diggs:AbstractSurface" type="diggs:PlanarSurfaceType">
  <annotation>
    <documentation>A surface that lies within a single plane, as a polygon with an outer ring and optionally several inner rings. The coordinate points of all rings are coplanar.</documentation>
  </annotation>
</element>
