Element diggs:TriangulatedSurface
Namespace http://diggsml.org/schemas/3
Annotations

A single contiguous surface composed exclusively of planar triangular patches
(diggs:TrianglePatch). Unlike diggs:MultiPlanarSurface, whose arbitrary polygon
patches must each be verified as coplanar, every patch has exactly three vertices
and is planar by construction. It is intended for an inherently irregular
(non-planar) surface, such as a geologic contact, stratigraphic boundary or other
soil or rock model bounding surface, as a triangulated mesh, typically as one of the
faces (diggs:Shell surfaceMembers) of a diggs:Solid soil-model volume. Each patch
shall share an edge with an adjacent patch to form a continuous surface, the same
connectivity requirement as diggs:MultiPlanarSurface.

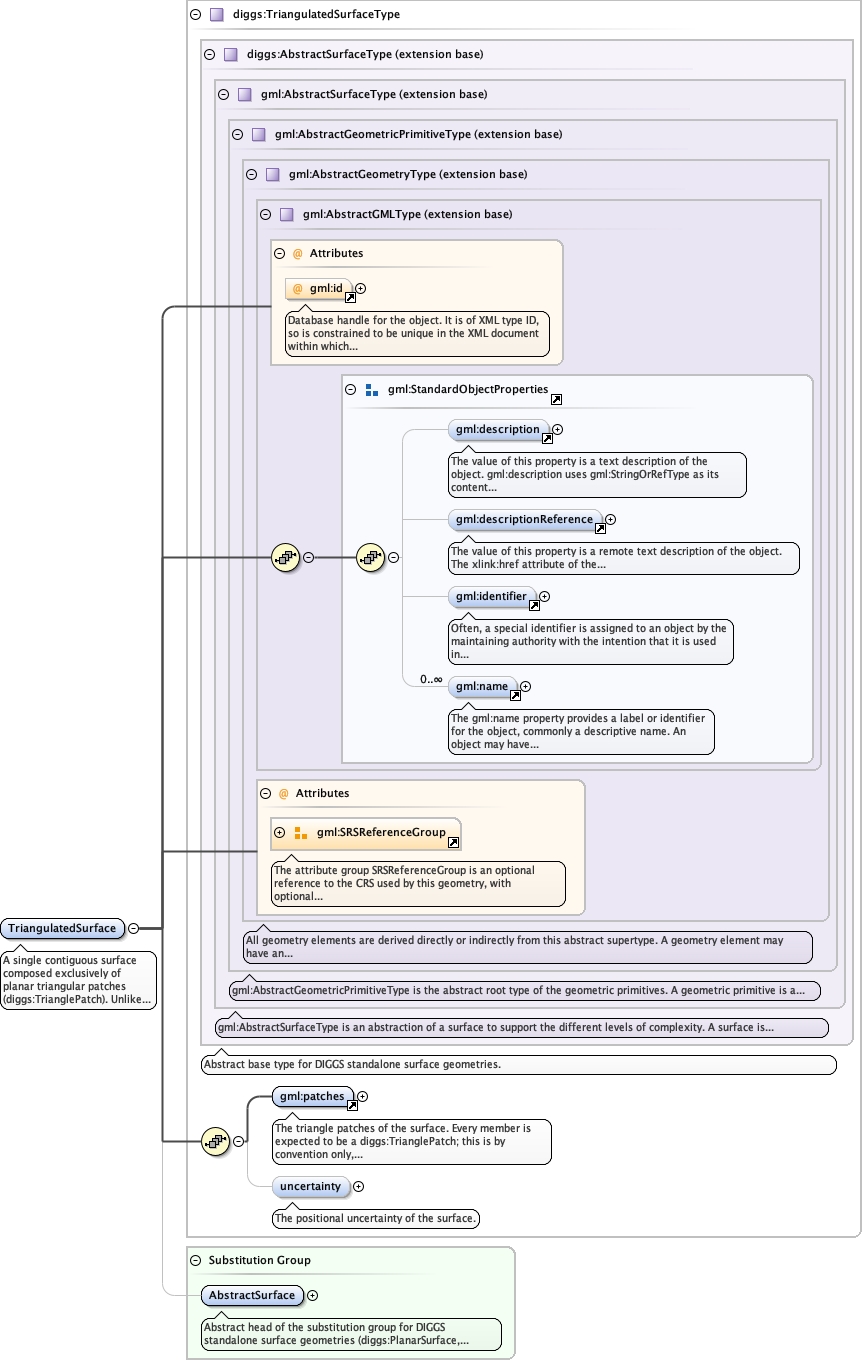

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometricPrimitiveType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometricPrimitiveTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractSurfaceType.tmp#http___www.opengis.net_gml_3.2_AbstractSurfaceTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSurfaceType.tmp#AbstractSurfaceTypegml3_2Profile_diggs_xsd_Element_gml_patches.tmp#patchesExtSamplingFeatures_xsd_Complex_Type_diggs_TriangulatedSurfaceType.tmp#TriangulatedSurfaceType_uncertaintyExtSamplingFeatures_xsd_Complex_Type_diggs_TriangulatedSurfaceType.tmp#TriangulatedSurfaceTypeAbstractTypes_xsd_Element_diggs_AbstractSurface.tmp#http___diggsml.org_schemas_3_AbstractSurface
Type diggs:TriangulatedSurfaceType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children diggs:uncertainty, gml:description, gml:descriptionReference, gml:identifier, gml:name, gml:patches
Instance

<diggs:TriangulatedSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:descriptionReference xlink:href="" nilReason="" owns="false">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:patches>{1,1}</gml:patches>
  <diggs:uncertainty>{0,1}</diggs:uncertainty>
</diggs:TriangulatedSurface>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
