Element diggs:TriangulatedSurfaceType / diggs:uncertainty
Namespace http://diggsml.org/schemas/3
Annotations

The positional uncertainty of the surface.

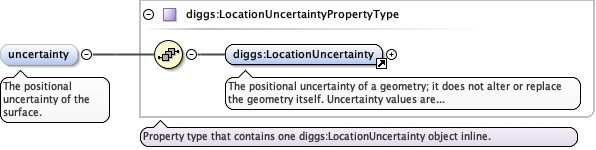

Diagram
DiagramCommon_xsd_Element_diggs_LocationUncertainty.tmp#LocationUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyPropertyType.tmp#LocationUncertaintyPropertyType
Type diggs:LocationUncertaintyPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:LocationUncertainty
Instance

<diggs:uncertainty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LocationUncertainty gml:id="">{1,1}</diggs:LocationUncertainty>
</diggs:uncertainty>
Source

<element minOccurs="0" name="uncertainty" type="diggs:LocationUncertaintyPropertyType">
  <annotation>
    <documentation>The positional uncertainty of the surface.</documentation>
  </annotation>
</element>
Complex Type diggs:TriangulatedSurfaceType
Namespace http://diggsml.org/schemas/3

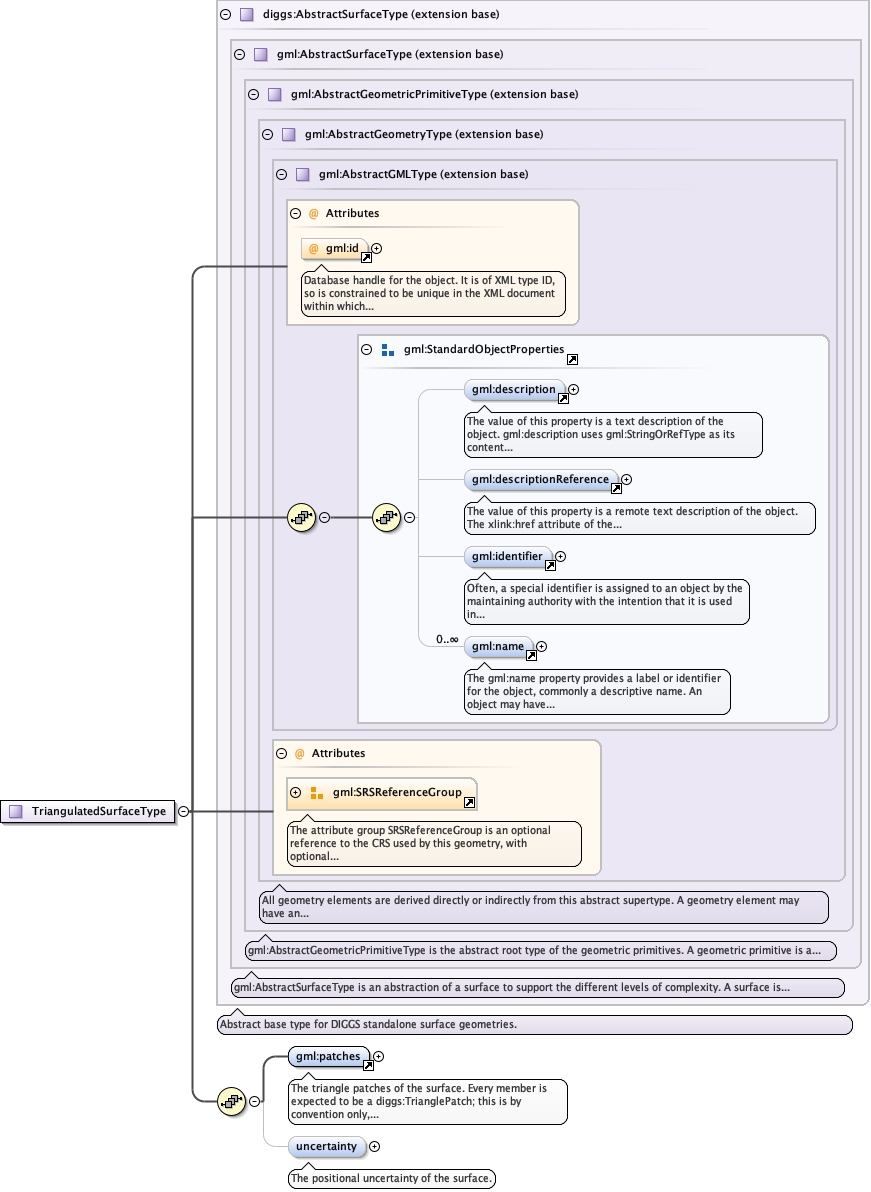

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometricPrimitiveType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometricPrimitiveTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractSurfaceType.tmp#http___www.opengis.net_gml_3.2_AbstractSurfaceTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSurfaceType.tmp#AbstractSurfaceTypegml3_2Profile_diggs_xsd_Element_gml_patches.tmp#patchesExtSamplingFeatures_xsd_Complex_Type_diggs_TriangulatedSurfaceType.tmp#TriangulatedSurfaceType_uncertainty
Type extension of diggs:AbstractSurfaceType
Type hierarchy
Used by
Model
Children diggs:uncertainty, gml:description, gml:descriptionReference, gml:identifier, gml:name, gml:patches
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<complexType name="TriangulatedSurfaceType">
  <complexContent>
    <extension base="diggs:AbstractSurfaceType">
      <sequence>
        <element ref="gml:patches">
          <annotation>
            <documentation>The triangle patches of the surface. Every member is expected to be a diggs:TrianglePatch; this is by convention only, as for the patches of gml:TriangulatedSurface.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="uncertainty" type="diggs:LocationUncertaintyPropertyType">
          <annotation>
            <documentation>The positional uncertainty of the surface.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
