Element diggs:LocationUncertainty
Namespace http://diggsml.org/schemas/3
Annotations

The positional uncertainty of a geometry; it does not alter or replace the geometry
itself. Uncertainty values are expressed in the units of the CRS of the geometry and
can be given in axis-based or radial (horizontal and vertical) form. Several
representations can be given together and are alternative expressions of the same
uncertainty.

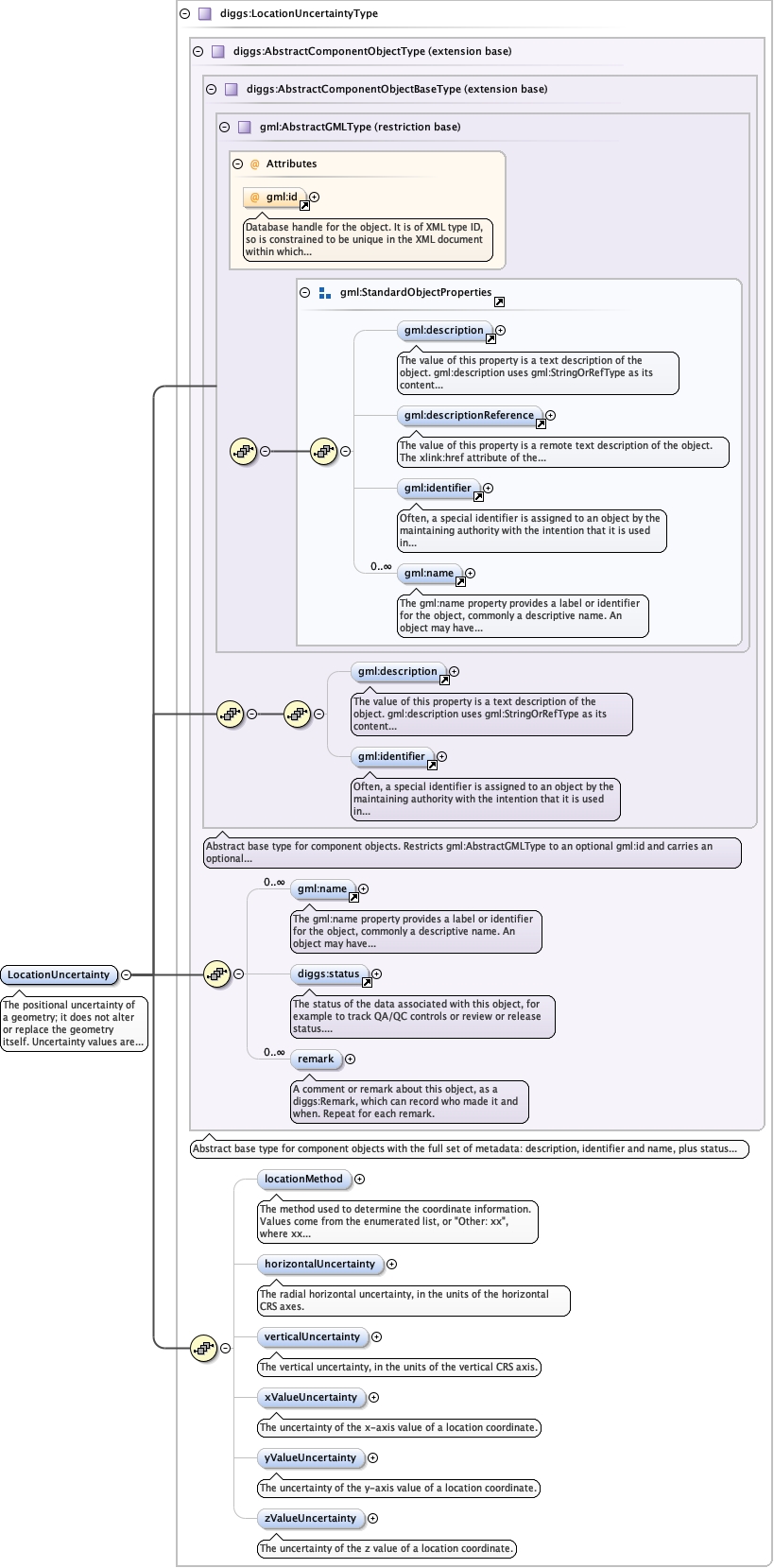

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_locationMethodCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_horizontalUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_verticalUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_xValueUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_yValueUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_zValueUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType
Type diggs:LocationUncertaintyType
Type hierarchy
Properties
content complex
abstract false
Used by
Model
Children diggs:horizontalUncertainty, diggs:locationMethod, diggs:remark, diggs:status, diggs:verticalUncertainty, diggs:xValueUncertainty, diggs:yValueUncertainty, diggs:zValueUncertainty, gml:description, gml:identifier, gml:name
Instance

<diggs:LocationUncertainty gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:locationMethod>{0,1}</diggs:locationMethod>
  <diggs:horizontalUncertainty>{0,1}</diggs:horizontalUncertainty>
  <diggs:verticalUncertainty>{0,1}</diggs:verticalUncertainty>
  <diggs:xValueUncertainty>{0,1}</diggs:xValueUncertainty>
  <diggs:yValueUncertainty>{0,1}</diggs:yValueUncertainty>
  <diggs:zValueUncertainty>{0,1}</diggs:zValueUncertainty>
</diggs:LocationUncertainty>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="LocationUncertainty" type="diggs:LocationUncertaintyType" abstract="false">
  <annotation>
    <documentation>The positional uncertainty of a geometry; it does not alter or replace the geometry itself. Uncertainty values are expressed in the units of the CRS of the geometry and can be given in axis-based or radial (horizontal and vertical) form. Several representations can be given together and are alternative expressions of the same uncertainty.</documentation>
  </annotation>
</element>
