Schema documentation for component diggs:MultiSurface

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:MultiSurface

Namespace

http://diggsml.org/schemas/3

Annotations

A collection of surface geometries with no assumed contiguity between members (ISO
19107 GM_MultiSurface): a coverage domain (N surfaces, N values) or a genuinely
discontinuous extent, such as several isolated footing surfaces. Members may be
given inline (surfaceMember or surfaceMembers) or by xlink:href to a surface defined
elsewhere in the document; a coverage domain should prefer the inline surfaceMembers
array so its element count stays directly readable without resolving references.
Contrast diggs:CompositeSurface (contiguous, one domain value) and
diggs:MultiPlanarSurface (contiguous, non-addressable patches).

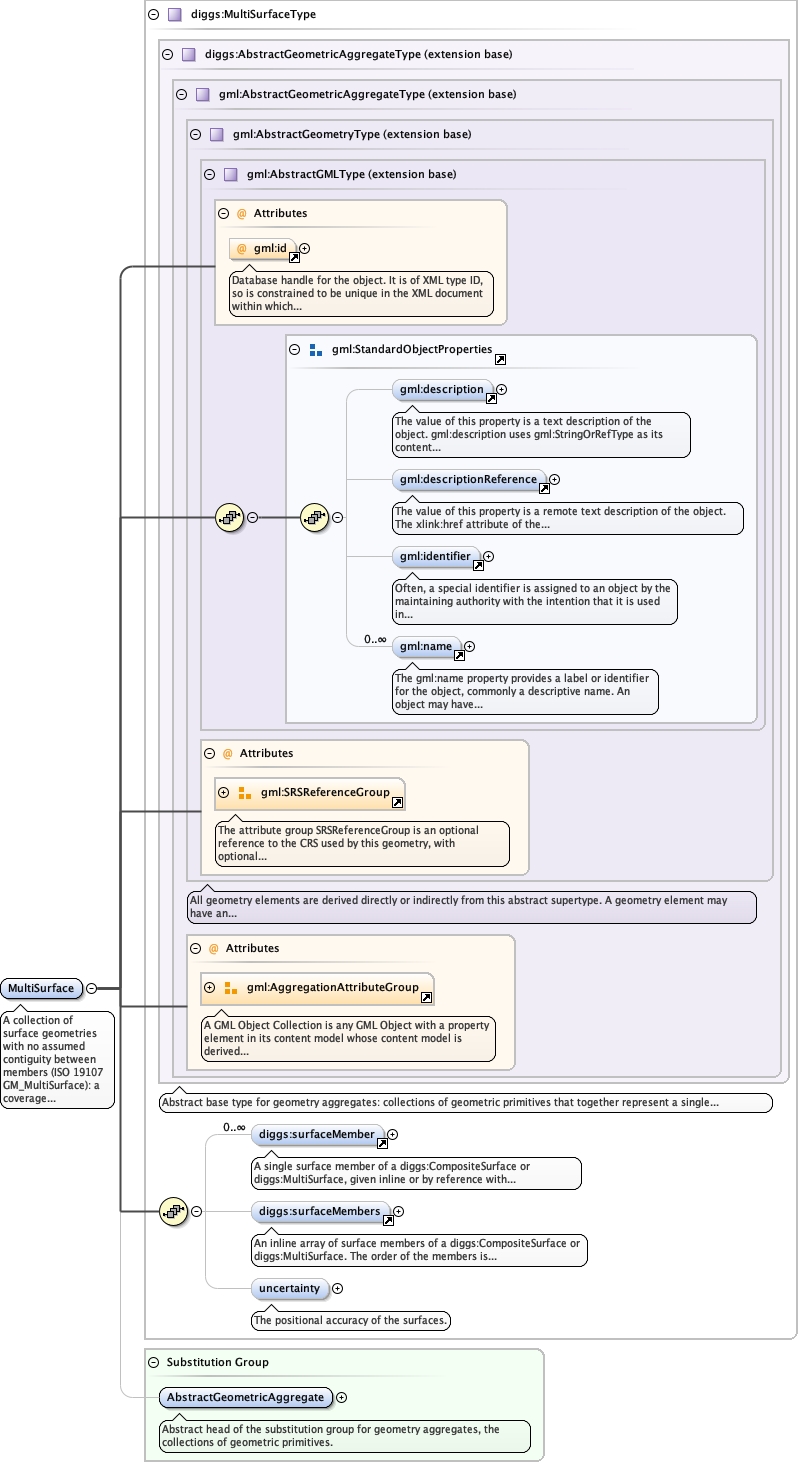

Diagram

Type

diggs:MultiSurfaceType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractGeometryType
  - gml:AbstractGeometricAggregateType
    - diggs:AbstractGeometricAggregateType
      - diggs:MultiSurfaceType

Properties

content

complex

Substitution Group Affiliation

diggs:AbstractGeometricAggregate

Used by

Complex Types

diggs:PlanarSurfaceOrMultiSurfacePropertyType, diggs:SurfacePropertyType

Model

gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , diggs:surfaceMember* , diggs:surfaceMembers{0,1} , diggs:uncertainty{0,1}

Children

diggs:surfaceMember, diggs:surfaceMembers, diggs:uncertainty, gml:description, gml:descriptionReference, gml:identifier, gml:name

Instance

<diggs:MultiSurface aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:descriptionReference xlink:href="" nilReason="" owns="false">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:surfaceMember xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:surfaceMember>
  <diggs:surfaceMembers>{0,1}</diggs:surfaceMembers>
  <diggs:uncertainty>{0,1}</diggs:uncertainty>
</diggs:MultiSurface>

Attributes

QName

Type

Use

Annotation

aggregationType

gml:AggregationType

optional

axisLabels

gml:NCNameList

optional

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

srsDimension

positiveInteger

optional

srsName

anyURI

optional

uomLabels

gml:NCNameList

optional

Source

<element name="MultiSurface" substitutionGroup="diggs:AbstractGeometricAggregate" type="diggs:MultiSurfaceType">
  <annotation>
    <documentation>A collection of surface geometries with no assumed contiguity between members (ISO 19107 GM_MultiSurface): a coverage domain (N surfaces, N values) or a genuinely discontinuous extent, such as several isolated footing surfaces. Members may be given inline (surfaceMember or surfaceMembers) or by xlink:href to a surface defined elsewhere in the document; a coverage domain should prefer the inline surfaceMembers array so its element count stays directly readable without resolving references. Contrast diggs:CompositeSurface (contiguous, one domain value) and diggs:MultiPlanarSurface (contiguous, non-addressable patches).</documentation>
  </annotation>
</element>
