Element diggs:surfaceMembers
Namespace http://diggsml.org/schemas/3
Annotations

An inline array of surface members of a diggs:CompositeSurface or
diggs:MultiSurface. The order of the members is significant and shall be preserved
when processing the array. Prefer this form over repeated diggs:surfaceMember
elements when every member is inline and the element count should stay directly
readable (for example a coverage domain with one value per surface). Referencing
members by xlink is not supported here; use diggs:surfaceMember for that.

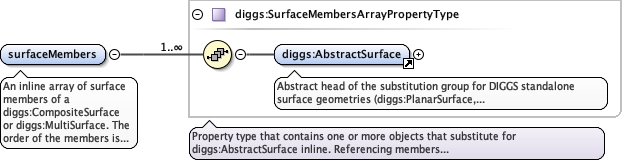

Diagram
DiagramAbstractTypes_xsd_Element_diggs_AbstractSurface.tmp#http___diggsml.org_schemas_3_AbstractSurfaceExtSamplingFeatures_xsd_Complex_Type_diggs_SurfaceMembersArrayPropertyType.tmp#SurfaceMembersArrayPropertyType
Type diggs:SurfaceMembersArrayPropertyType
Properties
content complex
Used by
Model
Children diggs:AbstractSurface
Instance

<diggs:surfaceMembers xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:AbstractSurface>
</diggs:surfaceMembers>
Source

<element name="surfaceMembers" type="diggs:SurfaceMembersArrayPropertyType">
  <annotation>
    <documentation>An inline array of surface members of a diggs:CompositeSurface or diggs:MultiSurface. The order of the members is significant and shall be preserved when processing the array. Prefer this form over repeated diggs:surfaceMember elements when every member is inline and the element count should stay directly readable (for example a coverage domain with one value per surface). Referencing members by xlink is not supported here; use diggs:surfaceMember for that.</documentation>
  </annotation>
</element>
