Element diggs:AbstractSamplingFeatureType / diggs:currentDesign
Namespace http://diggsml.org/schemas/3
Annotations

The program design this feature was realized to satisfy, as
currently built.

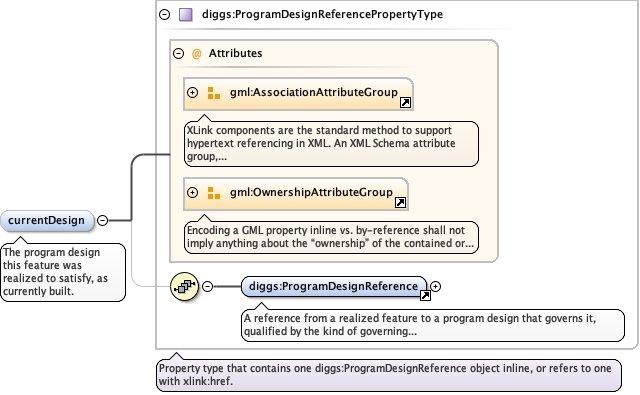

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCore_xsd_Element_diggs_ProgramDesignReference.tmp#ProgramDesignReferenceCommon_xsd_Complex_Type_diggs_ProgramDesignReferencePropertyType.tmp#ProgramDesignReferencePropertyType
Type diggs:ProgramDesignReferencePropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:ProgramDesignReference
Instance

<diggs:currentDesign xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:ProgramDesignReference gml:id="">{1,1}</diggs:ProgramDesignReference>
</diggs:currentDesign>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element minOccurs="0" maxOccurs="1" name="currentDesign" type="diggs:ProgramDesignReferencePropertyType">
  <annotation>
    <documentation>The program design this feature was realized to satisfy, as currently built.</documentation>
  </annotation>
</element>

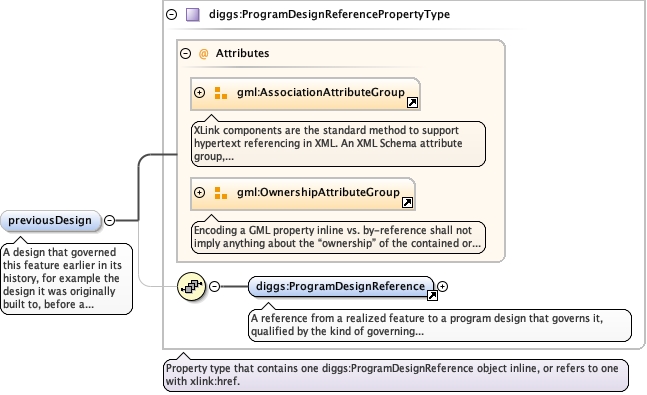

Element diggs:AbstractSamplingFeatureType / diggs:previousDesign
Namespace http://diggsml.org/schemas/3
Annotations

A design that governed this feature earlier in its history, for
example the design it was originally built to, before a later repair
or modification. Use designRole and effectiveFrom on the reference
to state which design and when.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCore_xsd_Element_diggs_ProgramDesignReference.tmp#ProgramDesignReferenceCommon_xsd_Complex_Type_diggs_ProgramDesignReferencePropertyType.tmp#ProgramDesignReferencePropertyType
Type diggs:ProgramDesignReferencePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:ProgramDesignReference
Instance

<diggs:previousDesign xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:ProgramDesignReference gml:id="">{1,1}</diggs:ProgramDesignReference>
</diggs:previousDesign>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element minOccurs="0" maxOccurs="unbounded" name="previousDesign" type="diggs:ProgramDesignReferencePropertyType">
  <annotation>
    <documentation>A design that governed this feature earlier in its history, for example the design it was originally built to, before a later repair or modification. Use designRole and effectiveFrom on the reference to state which design and when.</documentation>
  </annotation>
</element>

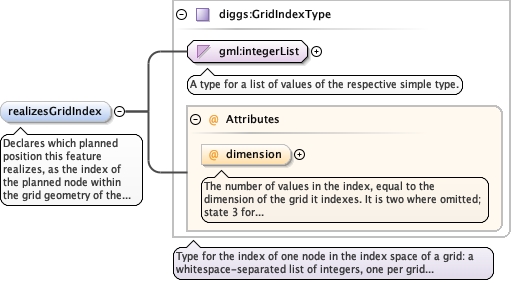

Element diggs:AbstractSamplingFeatureType / diggs:realizesGridIndex
Namespace http://diggsml.org/schemas/3
Annotations

Declares which planned position this feature realizes, as the index
of the planned node within the grid geometry of the design cited by
programDesignRef. Where that design states no plannedPositions of
its own, the grid is the one resolved through its basedOnRef chain,
most specific first. Ordered per the grid's axisLabels and of the
same dimension as the grid; see diggs:GridIndexType. Omit it for
instance-scoped designs, where programDesignRef alone identifies the
plan, and for zone-scoped designs, which state no planned positions
to index into. Only the grid form needs it, because a grid node is
not an object and has no gml:id to point at. Do not match a realized
feature to its planned position by proximity: nearest-node matching
fails silently where it matters most, since a column placed outside
its position tolerance is what a conformance check exists to catch,
and it may lie nearer another node.
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_integerList.tmp#integerListCore_xsd_Complex_Type_diggs_GridIndexType.tmp#GridIndexType_dimensionCore_xsd_Complex_Type_diggs_GridIndexType.tmp#GridIndexType
Type diggs:GridIndexType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use Annotation
dimension positiveInteger 2 optional
The number of values in the index, equal to the dimension of the grid it
indexes. It is two where omitted; state 3 for an index into a
three-dimensional grid.
Source

<element minOccurs="0" name="realizesGridIndex" type="diggs:GridIndexType">
  <annotation>
    <documentation>Declares which planned position this feature realizes, as the index of the planned node within the grid geometry of the design cited by programDesignRef. Where that design states no plannedPositions of its own, the grid is the one resolved through its basedOnRef chain, most specific first. Ordered per the grid's axisLabels and of the same dimension as the grid; see diggs:GridIndexType. Omit it for instance-scoped designs, where programDesignRef alone identifies the plan, and for zone-scoped designs, which state no planned positions to index into. Only the grid form needs it, because a grid node is not an object and has no gml:id to point at. Do not match a realized feature to its planned position by proximity: nearest-node matching fails silently where it matters most, since a column placed outside its position tolerance is what a conformance check exists to catch, and it may lie nearer another node.</documentation>
  </annotation>
</element>

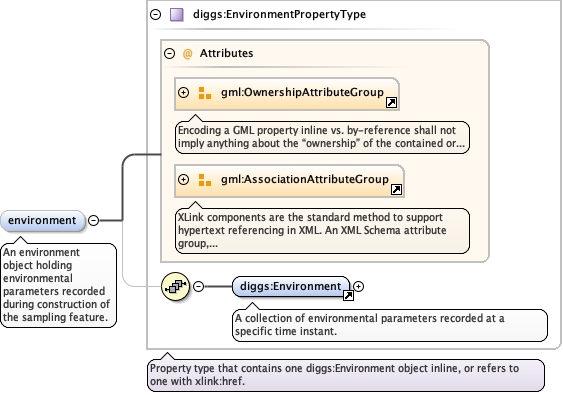

Element diggs:AbstractSamplingFeatureType / diggs:environment
Namespace http://diggsml.org/schemas/3
Annotations

An environment object holding environmental parameters recorded
during construction of the sampling feature.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCommon_xsd_Element_diggs_Environment.tmp#EnvironmentCommon_xsd_Complex_Type_diggs_EnvironmentPropertyType.tmp#EnvironmentPropertyType
Type diggs:EnvironmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Environment
Instance

<diggs:environment xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Environment gml:id="">{1,1}</diggs:Environment>
</diggs:environment>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="environment" type="diggs:EnvironmentPropertyType">
  <annotation>
    <documentation>An environment object holding environmental parameters recorded during construction of the sampling feature.</documentation>
  </annotation>
</element>

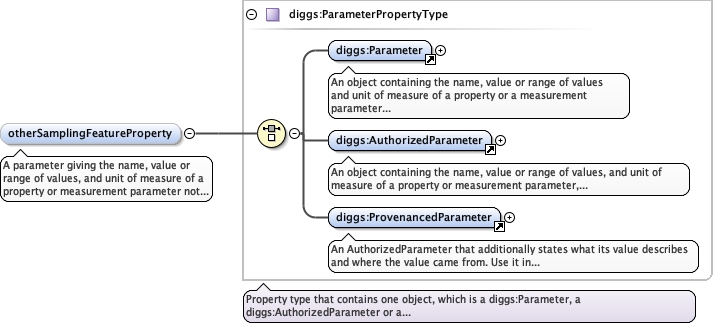

Element diggs:AbstractSamplingFeatureType / diggs:otherSamplingFeatureProperty
Namespace http://diggsml.org/schemas/3
Annotations

A parameter giving the name, value or range of values, and unit of
measure of a property or measurement parameter not otherwise
provided for. Repeat for each property.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:otherSamplingFeatureProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:otherSamplingFeatureProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherSamplingFeatureProperty" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>A parameter giving the name, value or range of values, and unit of measure of a property or measurement parameter not otherwise provided for. Repeat for each property.</documentation>
  </annotation>
</element>

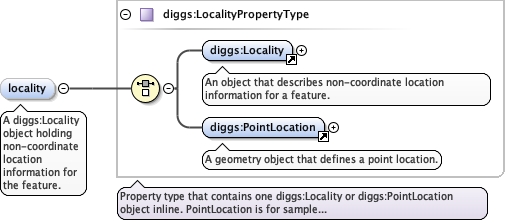

Element diggs:AbstractSamplingFeatureType / diggs:locality
Namespace http://diggsml.org/schemas/3
Annotations

A diggs:Locality object holding non-coordinate location information
for the feature.
Diagram
DiagramCommon_xsd_Element_diggs_Locality.tmp#LocalityCore_xsd_Element_diggs_PointLocation.tmp#PointLocationCommon_xsd_Complex_Type_diggs_LocalityPropertyType.tmp#LocalityPropertyType
Type diggs:LocalityPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:Locality, diggs:PointLocation
Instance

<diggs:locality xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Locality gml:id="">{1,1}</diggs:Locality>
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:locality>
Source

<element name="locality" type="diggs:LocalityPropertyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A diggs:Locality object holding non-coordinate location information for the feature.</documentation>
  </annotation>
</element>

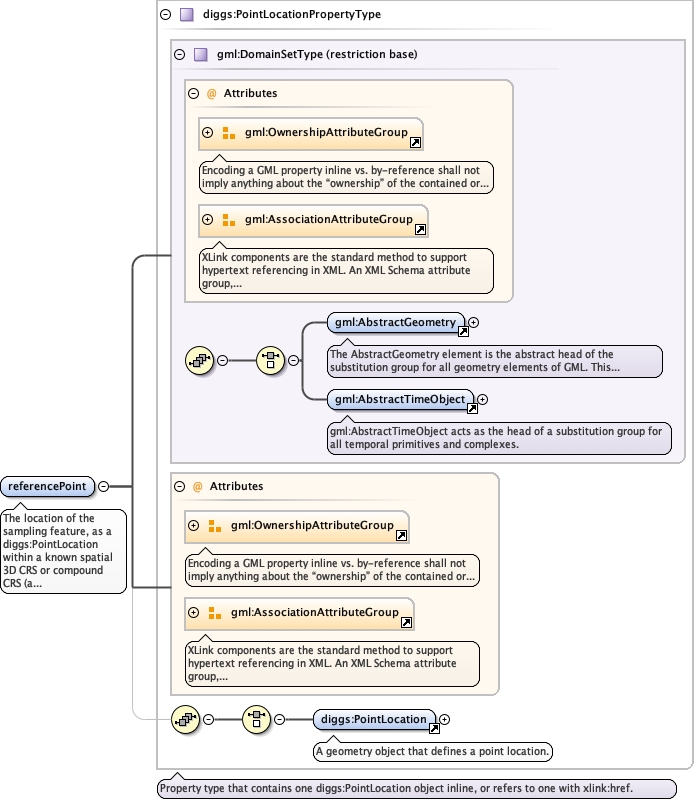

Element diggs:AbstractSamplingFeatureType / diggs:referencePoint
Namespace http://diggsml.org/schemas/3
Annotations

The location of the sampling feature, as a diggs:PointLocation
within a known spatial 3D CRS or compound CRS (a geographic or
projected 2D CRS plus a vertical CRS). Required.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PointLocation.tmp#PointLocationCore_xsd_Complex_Type_diggs_PointLocationPropertyType.tmp#PointLocationPropertyType
Type diggs:PointLocationPropertyType
Type hierarchy
Properties
content complex
minOccurs 1
Model
Children diggs:PointLocation
Instance

<diggs:referencePoint owns="false" xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:referencePoint>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="referencePoint" type="diggs:PointLocationPropertyType" minOccurs="1">
  <annotation>
    <documentation>The location of the sampling feature, as a diggs:PointLocation within a known spatial 3D CRS or compound CRS (a geographic or projected 2D CRS plus a vertical CRS). Required.</documentation>
  </annotation>
</element>

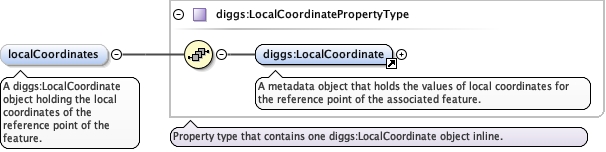

Element diggs:AbstractSamplingFeatureType / diggs:localCoordinates
Namespace http://diggsml.org/schemas/3
Annotations

A diggs:LocalCoordinate object holding the local coordinates of the
reference point of the feature.
Diagram
DiagramCommon_xsd_Element_diggs_LocalCoordinate.tmp#LocalCoordinateCommon_xsd_Complex_Type_diggs_LocalCoordinatePropertyType.tmp#LocalCoordinatePropertyType
Type diggs:LocalCoordinatePropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:LocalCoordinate
Instance

<diggs:localCoordinates xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LocalCoordinate owns="false">{1,1}</diggs:LocalCoordinate>
</diggs:localCoordinates>
Source

<element minOccurs="0" name="localCoordinates" type="diggs:LocalCoordinatePropertyType">
  <annotation>
    <documentation>A diggs:LocalCoordinate object holding the local coordinates of the reference point of the feature.</documentation>
  </annotation>
</element>

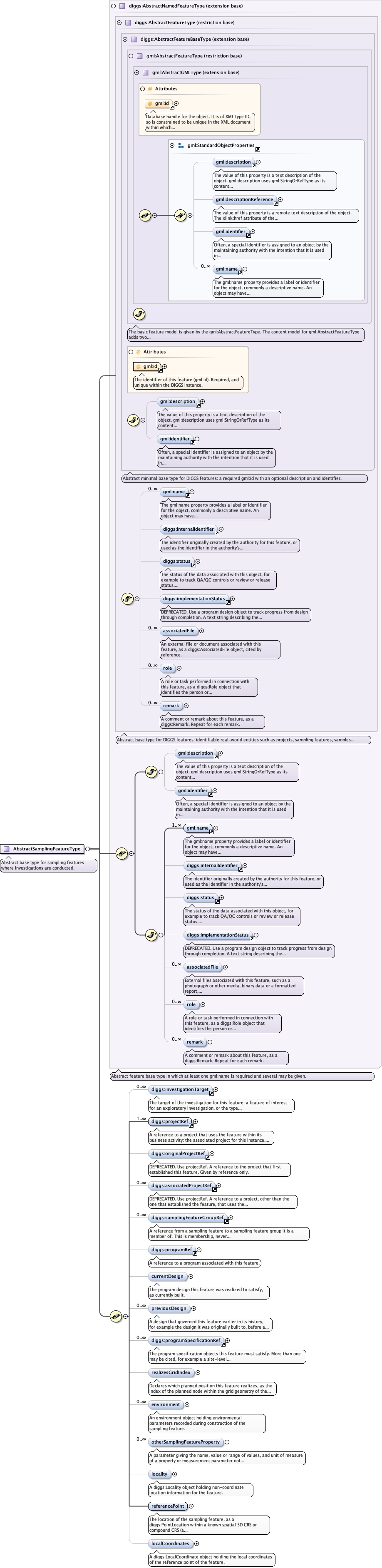

Complex Type diggs:AbstractSamplingFeatureType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for sampling features where investigations are conducted.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeCommon_xsd_Element_diggs_investigationTarget.tmp#investigationTargetCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_originalProjectRef.tmp#originalProjectRefCommon_xsd_Element_diggs_associatedProjectRef.tmp#associatedProjectRefCommon_xsd_Element_diggs_samplingFeatureGroupRef.tmp#samplingFeatureGroupRefCommon_xsd_Element_diggs_programRef.tmp#programRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_currentDesignAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_previousDesignCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_realizesGridIndexAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_environmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_otherSamplingFeaturePropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localityAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_referencePointAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localCoordinates
Type extension of diggs:AbstractNamedFeatureType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:associatedFile, diggs:associatedProjectRef, diggs:currentDesign, diggs:environment, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:localCoordinates, diggs:locality, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:previousDesign, diggs:programRef, diggs:programSpecificationRef, diggs:projectRef, diggs:realizesGridIndex, diggs:referencePoint, diggs:remark, diggs:role, diggs:samplingFeatureGroupRef, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractSamplingFeatureType" abstract="true">
  <annotation>
    <documentation>Abstract base type for sampling features where investigations are conducted.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractNamedFeatureType">
      <sequence>
        <element ref="diggs:investigationTarget" maxOccurs="unbounded" minOccurs="0"/>
        <element ref="diggs:projectRef" maxOccurs="unbounded"/>
        <element minOccurs="0" ref="diggs:originalProjectRef"/>
        <element maxOccurs="unbounded" minOccurs="0" ref="diggs:associatedProjectRef"/>
        <element minOccurs="0" maxOccurs="unbounded" ref="diggs:samplingFeatureGroupRef"/>
        <element minOccurs="0" ref="diggs:programRef"/>
        <element minOccurs="0" maxOccurs="1" name="currentDesign" type="diggs:ProgramDesignReferencePropertyType">
          <annotation>
            <documentation>The program design this feature was realized to satisfy, as currently built.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" maxOccurs="unbounded" name="previousDesign" type="diggs:ProgramDesignReferencePropertyType">
          <annotation>
            <documentation>A design that governed this feature earlier in its history, for example the design it was originally built to, before a later repair or modification. Use designRole and effectiveFrom on the reference to state which design and when.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" maxOccurs="unbounded" ref="diggs:programSpecificationRef">
          <annotation>
            <documentation>The program specification objects this feature must satisfy. More than one may be cited, for example a site-level performance specification and a project-level tolerance specification.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="realizesGridIndex" type="diggs:GridIndexType">
          <annotation>
            <documentation>Declares which planned position this feature realizes, as the index of the planned node within the grid geometry of the design cited by programDesignRef. Where that design states no plannedPositions of its own, the grid is the one resolved through its basedOnRef chain, most specific first. Ordered per the grid's axisLabels and of the same dimension as the grid; see diggs:GridIndexType. Omit it for instance-scoped designs, where programDesignRef alone identifies the plan, and for zone-scoped designs, which state no planned positions to index into. Only the grid form needs it, because a grid node is not an object and has no gml:id to point at. Do not match a realized feature to its planned position by proximity: nearest-node matching fails silently where it matters most, since a column placed outside its position tolerance is what a conformance check exists to catch, and it may lie nearer another node.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="environment" type="diggs:EnvironmentPropertyType">
          <annotation>
            <documentation>An environment object holding environmental parameters recorded during construction of the sampling feature.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="otherSamplingFeatureProperty" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>A parameter giving the name, value or range of values, and unit of measure of a property or measurement parameter not otherwise provided for. Repeat for each property.</documentation>
          </annotation>
        </element>
        <element name="locality" type="diggs:LocalityPropertyType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>A diggs:Locality object holding non-coordinate location information for the feature.</documentation>
          </annotation>
        </element>
        <element name="referencePoint" type="diggs:PointLocationPropertyType" minOccurs="1">
          <annotation>
            <documentation>The location of the sampling feature, as a diggs:PointLocation within a known spatial 3D CRS or compound CRS (a geographic or projected 2D CRS plus a vertical CRS). Required.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="localCoordinates" type="diggs:LocalCoordinatePropertyType">
          <annotation>
            <documentation>A diggs:LocalCoordinate object holding the local coordinates of the reference point of the feature.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
