Element diggs:AbstractNamedFeatureType / diggs:associatedFile
Namespace http://diggsml.org/schemas/3
Annotations

External files associated with this feature, such as a
photograph or other media, binary data or a formatted report,
that elaborate the feature with information that cannot be
represented as text. Repeat for each file.

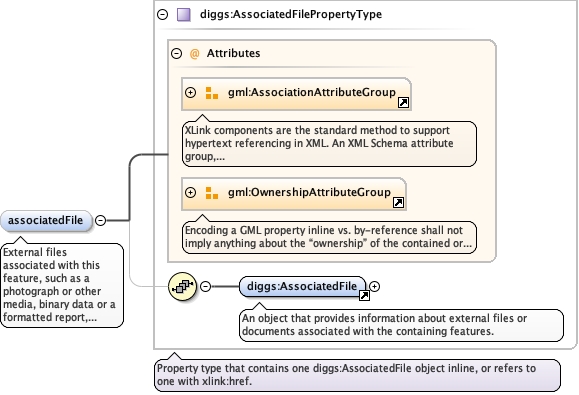

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_AssociatedFile.tmp#AssociatedFileCommon_xsd_Complex_Type_diggs_AssociatedFilePropertyType.tmp#AssociatedFilePropertyType
Type diggs:AssociatedFilePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AssociatedFile
Instance

<diggs:associatedFile xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AssociatedFile gml:id="">{1,1}</diggs:AssociatedFile>
</diggs:associatedFile>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="associatedFile" type="diggs:AssociatedFilePropertyType">
  <annotation>
    <documentation>External files associated with this feature, such as a photograph or other media, binary data or a formatted report, that elaborate the feature with information that cannot be represented as text. Repeat for each file.</documentation>
  </annotation>
</element>
Element diggs:AbstractNamedFeatureType / diggs:role
Namespace http://diggsml.org/schemas/3
Annotations

A role or task performed in connection with this feature, as a
diggs:Role object that identifies the person or organization
that performed it and the time frame, if applicable. Repeat for
each role.

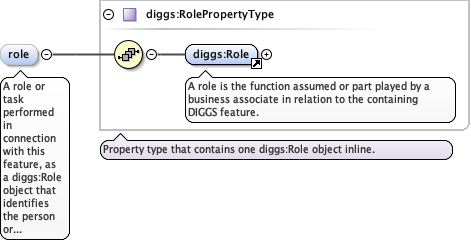

Diagram
DiagramCommon_xsd_Element_diggs_Role.tmp#RoleCommon_xsd_Complex_Type_diggs_RolePropertyType.tmp#RolePropertyType
Type diggs:RolePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Role
Instance

<diggs:role xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Role owns="false">{1,1}</diggs:Role>
</diggs:role>
Source

<element maxOccurs="unbounded" minOccurs="0" name="role" type="diggs:RolePropertyType">
  <annotation>
    <documentation>A role or task performed in connection with this feature, as a diggs:Role object that identifies the person or organization that performed it and the time frame, if applicable. Repeat for each role.</documentation>
  </annotation>
</element>
Element diggs:AbstractNamedFeatureType / diggs:remark
Namespace http://diggsml.org/schemas/3
Annotations

A comment or remark about this feature, as a diggs:Remark.
Repeat for each remark.

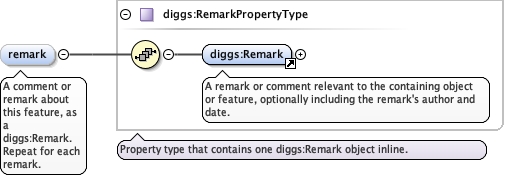

Diagram
DiagramCommon_xsd_Element_diggs_Remark.tmp#RemarkCommon_xsd_Complex_Type_diggs_RemarkPropertyType.tmp#RemarkPropertyType
Type diggs:RemarkPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Remark
Instance

<diggs:remark xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Remark owns="false">{1,1}</diggs:Remark>
</diggs:remark>
Source

<element maxOccurs="unbounded" minOccurs="0" name="remark" type="diggs:RemarkPropertyType">
  <annotation>
    <documentation>A comment or remark about this feature, as a diggs:Remark. Repeat for each remark.</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractNamedFeatureType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract feature base type in which at least one gml:name is required and several
may be given.

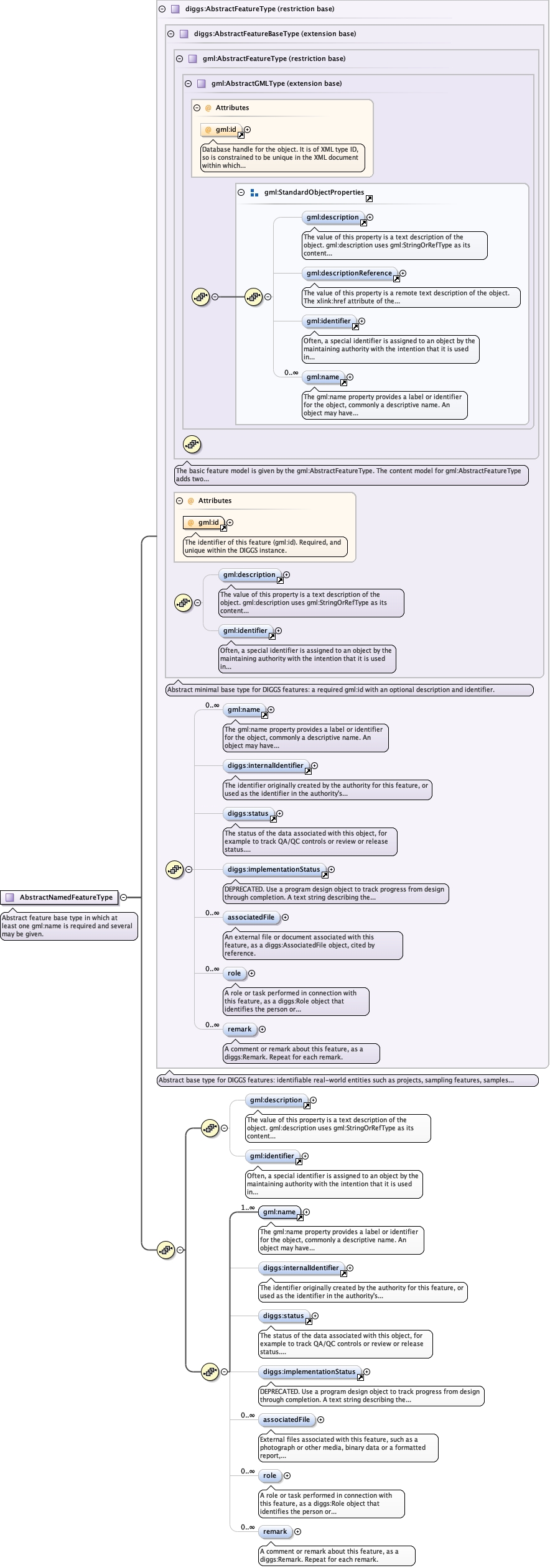

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remark
Type restriction of diggs:AbstractFeatureType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractNamedFeatureType" abstract="true">
  <annotation>
    <documentation>Abstract feature base type in which at least one gml:name is required and several may be given.</documentation>
  </annotation>
  <complexContent>
    <restriction base="diggs:AbstractFeatureType">
      <sequence>
        <sequence>
          <element minOccurs="0" ref="gml:description"/>
          <element minOccurs="0" ref="gml:identifier"/>
        </sequence>
        <sequence>
          <element maxOccurs="unbounded" minOccurs="1" ref="gml:name"/>
          <element minOccurs="0" ref="diggs:internalIdentifier"/>
          <element minOccurs="0" ref="diggs:status"/>
          <element minOccurs="0" ref="diggs:implementationStatus"/>
          <element maxOccurs="unbounded" minOccurs="0" name="associatedFile" type="diggs:AssociatedFilePropertyType">
            <annotation>
              <documentation>External files associated with this feature, such as a photograph or other media, binary data or a formatted report, that elaborate the feature with information that cannot be represented as text. Repeat for each file.</documentation>
            </annotation>
          </element>
          <element maxOccurs="unbounded" minOccurs="0" name="role" type="diggs:RolePropertyType">
            <annotation>
              <documentation>A role or task performed in connection with this feature, as a diggs:Role object that identifies the person or organization that performed it and the time frame, if applicable. Repeat for each role.</documentation>
            </annotation>
          </element>
          <element maxOccurs="unbounded" minOccurs="0" name="remark" type="diggs:RemarkPropertyType">
            <annotation>
              <documentation>A comment or remark about this feature, as a diggs:Remark. Repeat for each remark.</documentation>
            </annotation>
          </element>
        </sequence>
      </sequence>
    </restriction>
  </complexContent>
</complexType>
