Element diggs:BusinessAssociateBaseType / diggs:associatedFile
Namespace http://diggsml.org/schemas/3
Annotations

External files associated with this business associate, as
diggs:AssociatedFile objects. Repeat for each file.

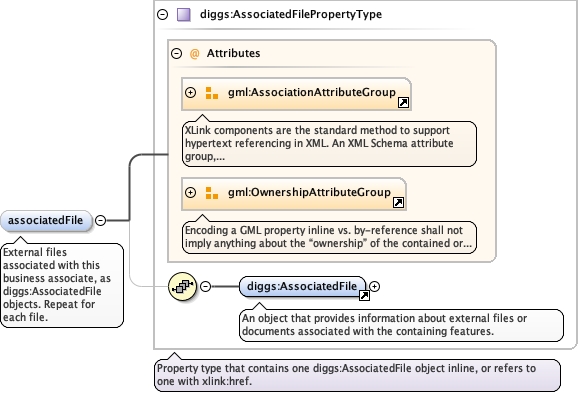

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_AssociatedFile.tmp#AssociatedFileCommon_xsd_Complex_Type_diggs_AssociatedFilePropertyType.tmp#AssociatedFilePropertyType
Type diggs:AssociatedFilePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AssociatedFile
Instance

<diggs:associatedFile xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AssociatedFile gml:id="">{1,1}</diggs:AssociatedFile>
</diggs:associatedFile>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="associatedFile" type="diggs:AssociatedFilePropertyType">
  <annotation>
    <documentation>External files associated with this business associate, as diggs:AssociatedFile objects. Repeat for each file.</documentation>
  </annotation>
</element>
Element diggs:BusinessAssociateBaseType / diggs:remark
Namespace http://diggsml.org/schemas/3
Annotations

A comment or remark about this business associate. Repeat for
each remark.

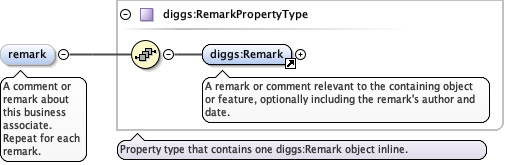

Diagram
DiagramCommon_xsd_Element_diggs_Remark.tmp#RemarkCommon_xsd_Complex_Type_diggs_RemarkPropertyType.tmp#RemarkPropertyType
Type diggs:RemarkPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Remark
Instance

<diggs:remark xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Remark owns="false">{1,1}</diggs:Remark>
</diggs:remark>
Source

<element maxOccurs="unbounded" minOccurs="0" name="remark" type="diggs:RemarkPropertyType">
  <annotation>
    <documentation>A comment or remark about this business associate. Repeat for each remark.</documentation>
  </annotation>
</element>
Complex Type diggs:BusinessAssociateBaseType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for business associates: at least one name, with an optional
identifier, internal identifier, status, associated files and remarks.

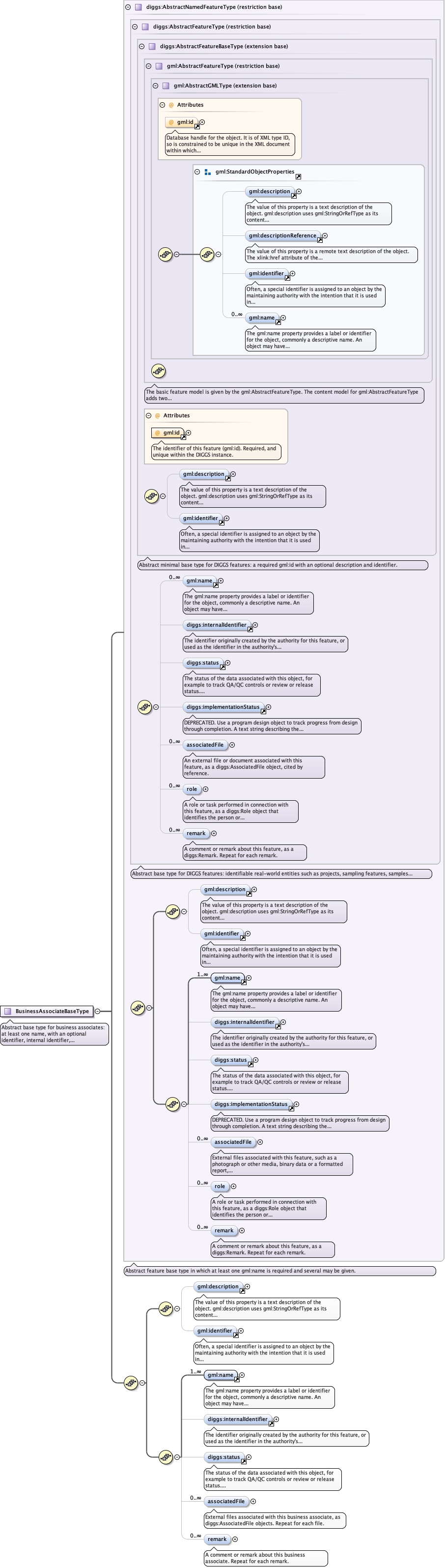

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Complex_Type_diggs_BusinessAssociateBaseType.tmp#BusinessAssociateBaseType_associatedFileCommon_xsd_Complex_Type_diggs_BusinessAssociateBaseType.tmp#BusinessAssociateBaseType_remark
Type restriction of diggs:AbstractNamedFeatureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:internalIdentifier, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="BusinessAssociateBaseType">
  <annotation>
    <documentation>Abstract base type for business associates: at least one name, with an optional identifier, internal identifier, status, associated files and remarks.</documentation>
  </annotation>
  <complexContent>
    <restriction base="diggs:AbstractNamedFeatureType">
      <sequence>
        <sequence>
          <element minOccurs="0" ref="gml:description"/>
          <element minOccurs="0" ref="gml:identifier"/>
        </sequence>
        <sequence>
          <element maxOccurs="unbounded" minOccurs="1" ref="gml:name"/>
          <element ref="diggs:internalIdentifier" minOccurs="0"/>
          <element minOccurs="0" ref="diggs:status"/>
          <element maxOccurs="unbounded" minOccurs="0" name="associatedFile" type="diggs:AssociatedFilePropertyType">
            <annotation>
              <documentation>External files associated with this business associate, as diggs:AssociatedFile objects. Repeat for each file.</documentation>
            </annotation>
          </element>
          <element maxOccurs="unbounded" minOccurs="0" name="remark" type="diggs:RemarkPropertyType">
            <annotation>
              <documentation>A comment or remark about this business associate. Repeat for each remark.</documentation>
            </annotation>
          </element>
        </sequence>
      </sequence>
    </restriction>
  </complexContent>
</complexType>
