Element diggs:AbstractNamedRoleObjectType / diggs:role
Namespace http://diggsml.org/schemas/3
Annotations

A role or task associated with this person or organization, as a
diggs:Role object that records the role performed and the time
frame, if applicable. Repeat for each role.

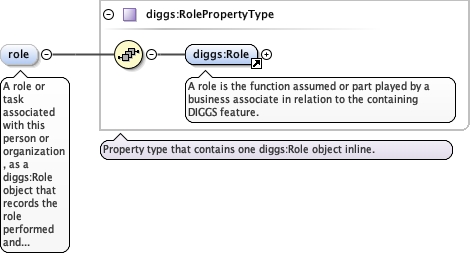

Diagram
DiagramCommon_xsd_Element_diggs_Role.tmp#RoleCommon_xsd_Complex_Type_diggs_RolePropertyType.tmp#RolePropertyType
Type diggs:RolePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Role
Instance

<diggs:role xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Role owns="false">{1,1}</diggs:Role>
</diggs:role>
Source

<element maxOccurs="unbounded" minOccurs="0" name="role" type="diggs:RolePropertyType">
  <annotation>
    <documentation>A role or task associated with this person or organization, as a diggs:Role object that records the role performed and the time frame, if applicable. Repeat for each role.</documentation>
  </annotation>
</element>
Element diggs:AbstractNamedRoleObjectType / diggs:remark
Namespace http://diggsml.org/schemas/3
Annotations

A comment or remark about this object, as a diggs:Remark. Repeat
for each remark.

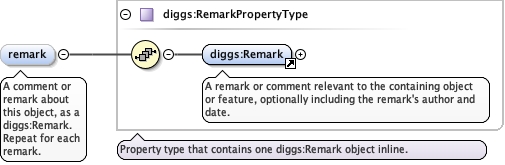

Diagram
DiagramCommon_xsd_Element_diggs_Remark.tmp#RemarkCommon_xsd_Complex_Type_diggs_RemarkPropertyType.tmp#RemarkPropertyType
Type diggs:RemarkPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Remark
Instance

<diggs:remark xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Remark owns="false">{1,1}</diggs:Remark>
</diggs:remark>
Source

<element maxOccurs="unbounded" minOccurs="0" name="remark" type="diggs:RemarkPropertyType">
  <annotation>
    <documentation>A comment or remark about this object, as a diggs:Remark. Repeat for each remark.</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractNamedRoleObjectType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for objects that perform roles, such as personnel or
organizations. At least one name is required.

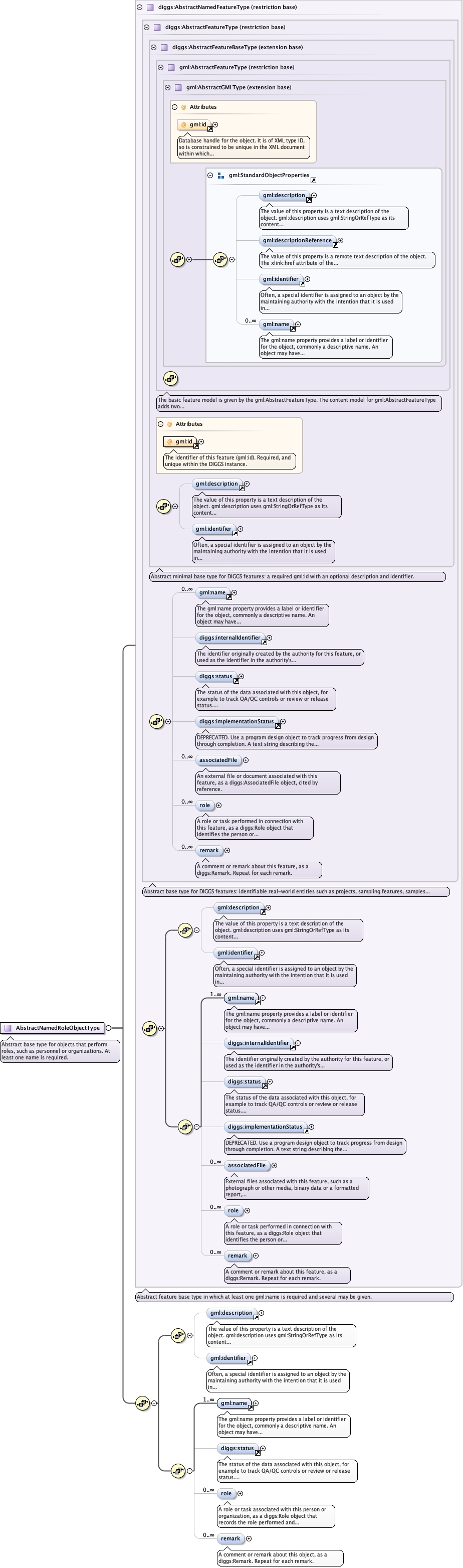

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedRoleObjectType.tmp#AbstractNamedRoleObjectType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedRoleObjectType.tmp#AbstractNamedRoleObjectType_remark
Type restriction of diggs:AbstractNamedFeatureType
Type hierarchy
Used by
Model
Children diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractNamedRoleObjectType">
  <annotation>
    <documentation>Abstract base type for objects that perform roles, such as personnel or organizations. At least one name is required.</documentation>
  </annotation>
  <complexContent>
    <restriction base="diggs:AbstractNamedFeatureType">
      <sequence>
        <sequence>
          <element minOccurs="0" ref="gml:description"/>
          <element minOccurs="0" ref="gml:identifier"/>
        </sequence>
        <sequence>
          <element maxOccurs="unbounded" minOccurs="1" ref="gml:name"/>
          <element minOccurs="0" ref="diggs:status"/>
          <element maxOccurs="unbounded" minOccurs="0" name="role" type="diggs:RolePropertyType">
            <annotation>
              <documentation>A role or task associated with this person or organization, as a diggs:Role object that records the role performed and the time frame, if applicable. Repeat for each role.</documentation>
            </annotation>
          </element>
          <element maxOccurs="unbounded" minOccurs="0" name="remark" type="diggs:RemarkPropertyType">
            <annotation>
              <documentation>A comment or remark about this object, as a diggs:Remark. Repeat for each remark.</documentation>
            </annotation>
          </element>
        </sequence>
      </sequence>
    </restriction>
  </complexContent>
</complexType>
