Element diggs:ProgramDesignReference
Namespace http://diggsml.org/schemas/3
Annotations

A reference from a realized feature to a program design that governs it, qualified
by the kind of governing relationship and when it took effect. Use a bare
programDesignRef where a feature has exactly one governing design in its original,
as-built role; use this object where more than one design governs it, or where a
later design supersedes an earlier one.

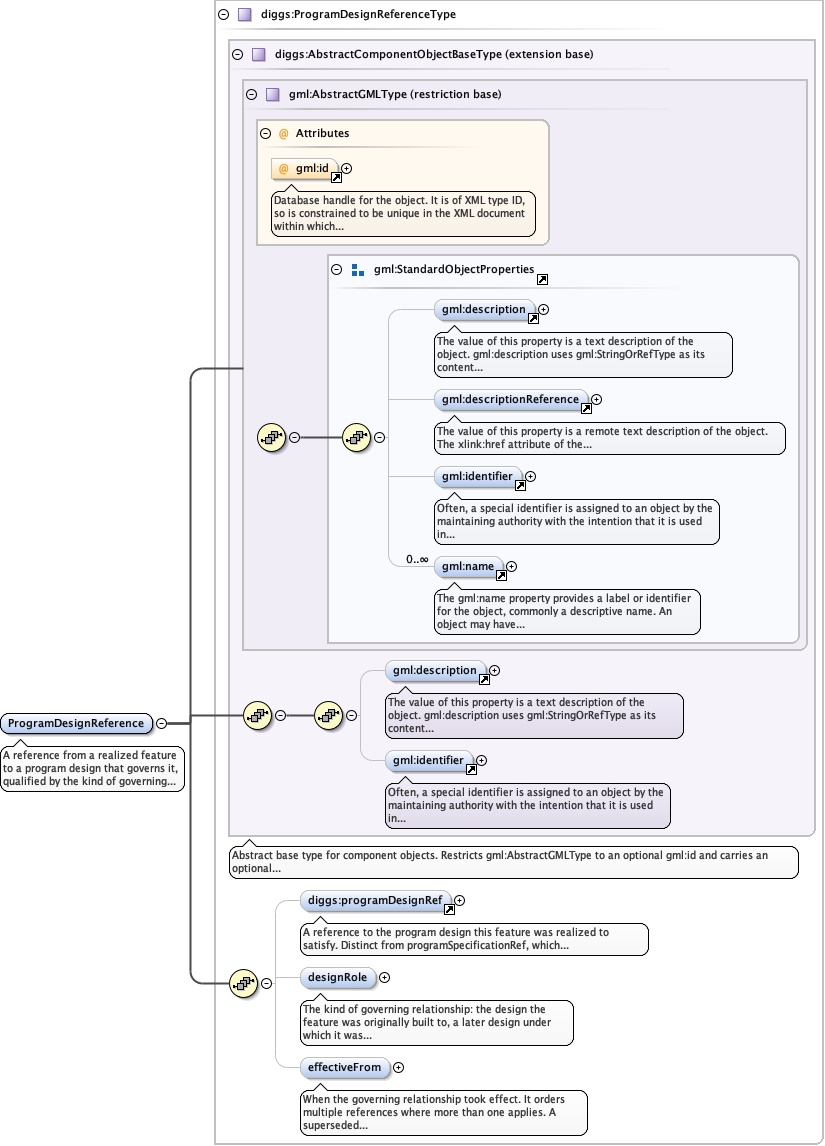

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCommon_xsd_Element_diggs_programDesignRef.tmp#programDesignRefCore_xsd_Complex_Type_diggs_ProgramDesignReferenceType.tmp#ProgramDesignReferenceType_designRoleCore_xsd_Complex_Type_diggs_ProgramDesignReferenceType.tmp#ProgramDesignReferenceType_effectiveFromCore_xsd_Complex_Type_diggs_ProgramDesignReferenceType.tmp#ProgramDesignReferenceType
Type diggs:ProgramDesignReferenceType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:designRole, diggs:effectiveFrom, diggs:programDesignRef, gml:description, gml:identifier
Instance

<diggs:ProgramDesignReference gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:programDesignRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:programDesignRef>
  <diggs:designRole codeSpace="">{0,1}</diggs:designRole>
  <diggs:effectiveFrom calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:effectiveFrom>
</diggs:ProgramDesignReference>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="ProgramDesignReference" type="diggs:ProgramDesignReferenceType">
  <annotation>
    <documentation>A reference from a realized feature to a program design that governs it, qualified by the kind of governing relationship and when it took effect. Use a bare programDesignRef where a feature has exactly one governing design in its original, as-built role; use this object where more than one design governs it, or where a later design supersedes an earlier one.</documentation>
  </annotation>
</element>
