Element diggs:samplingFeatureGroupRef
Namespace http://diggsml.org/schemas/3
Annotations
A reference from a sampling feature to a sampling feature group it is a member of.
This is membership, never containment, which is why it is separate from
diggs:samplingFeatureRef: it means only that the feature is interpreted jointly with
the other members of the group, is always optional, and places no spatial or
structural obligation on either end. The member cites the group; see
diggs:AbstractProjectScopedGroup. A feature may belong to more than one group; for
example a borehole can be a member of a borehole/CPT pair and of a wider
investigation-phase group. Given by reference only.

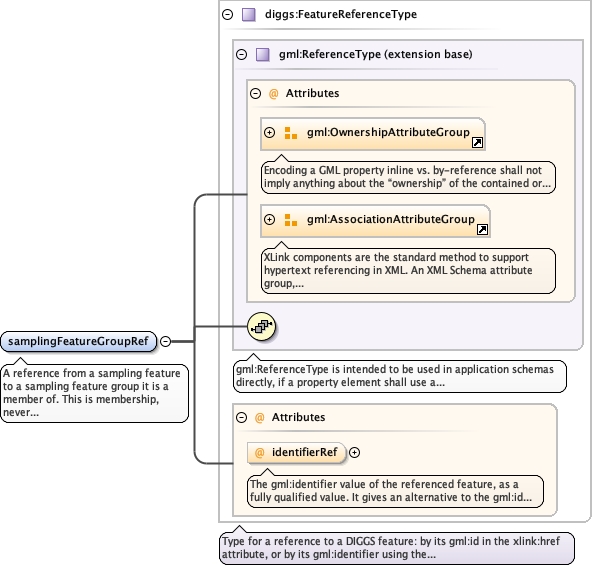

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
Used by
Model
Attributes
QName Type Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source
<element name="samplingFeatureGroupRef" type="diggs:FeatureReferenceType">
  <annotation>
    <appinfo source="urn:x-gml:targetElement">diggs:AbstractSamplingFeatureGroup</appinfo>
    <documentation>A reference from a sampling feature to a sampling feature group it is a member of. This is membership, never containment, which is why it is separate from diggs:samplingFeatureRef: it means only that the feature is interpreted jointly with the other members of the group, is always optional, and places no spatial or structural obligation on either end. The member cites the group; see diggs:AbstractProjectScopedGroup. A feature may belong to more than one group; for example a borehole can be a member of a borehole/CPT pair and of a wider investigation-phase group. Given by reference only.</documentation>
  </annotation>
</element>
