Element diggs:GroutTrenchCutoffWallType / diggs:whenConstructed
Namespace http://diggsml.org/schemas/3
Annotations

Time ot time interval during when the feature was constructed.

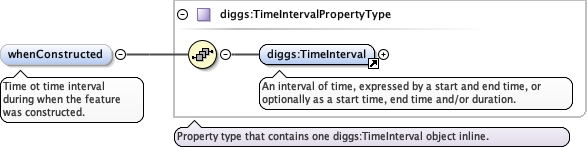

Diagram
DiagramCommon_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalCommon_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:TimeInterval
Instance

<diggs:whenConstructed xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TimeInterval gml:id="">{1,1}</diggs:TimeInterval>
</diggs:whenConstructed>
Source

<element minOccurs="0" name="whenConstructed" type="diggs:TimeIntervalPropertyType">
  <annotation>
    <documentation>Time ot time interval during when the feature was constructed.</documentation>
  </annotation>
</element>
Element diggs:GroutTrenchCutoffWallType / diggs:cutoffWallWidth
Namespace http://diggsml.org/schemas/3
Annotations

The width of the trench cutoff wall - this is typically
the same as the thickness of the cutting tool or backhoe
shovel

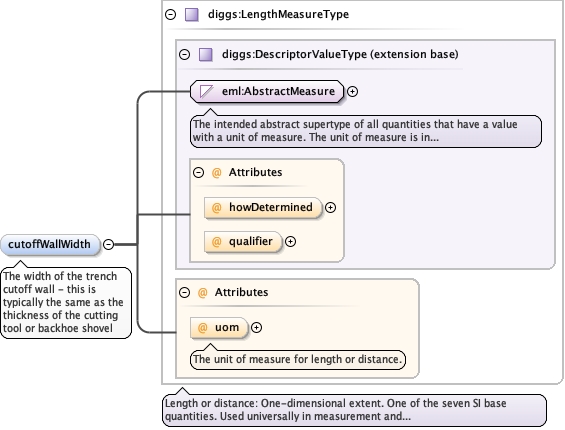

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="cutoffWallWidth" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The width of the trench cutoff wall - this is typically the same as the thickness of the cutting tool or backhoe shovel</documentation>
  </annotation>
</element>
Element diggs:GroutTrenchCutoffWallType / diggs:wallSectionDepths
Namespace http://diggsml.org/schemas/3
Annotations

The wall section depths property.

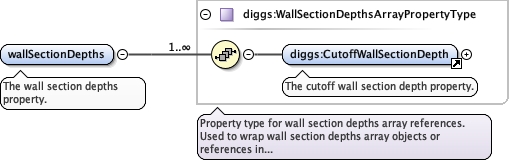

Diagram
DiagramGrouting_xsd_Element_diggs_CutoffWallSectionDepth.tmp#CutoffWallSectionDepthGrouting_xsd_Complex_Type_diggs_WallSectionDepthsArrayPropertyType.tmp#WallSectionDepthsArrayPropertyType
Type diggs:WallSectionDepthsArrayPropertyType
Properties
content complex
Model
Children diggs:CutoffWallSectionDepth
Instance

<diggs:wallSectionDepths xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:CutoffWallSectionDepth gml:id="">{1,1}</diggs:CutoffWallSectionDepth>
</diggs:wallSectionDepths>
Source

<element name="wallSectionDepths" type="diggs:WallSectionDepthsArrayPropertyType">
  <annotation>
    <documentation>The wall section depths property.</documentation>
  </annotation>
</element>
Complex Type diggs:GroutTrenchCutoffWallType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractLinearSamplingFeatureType. Adds elements for grout trench cutoff wall type definition.

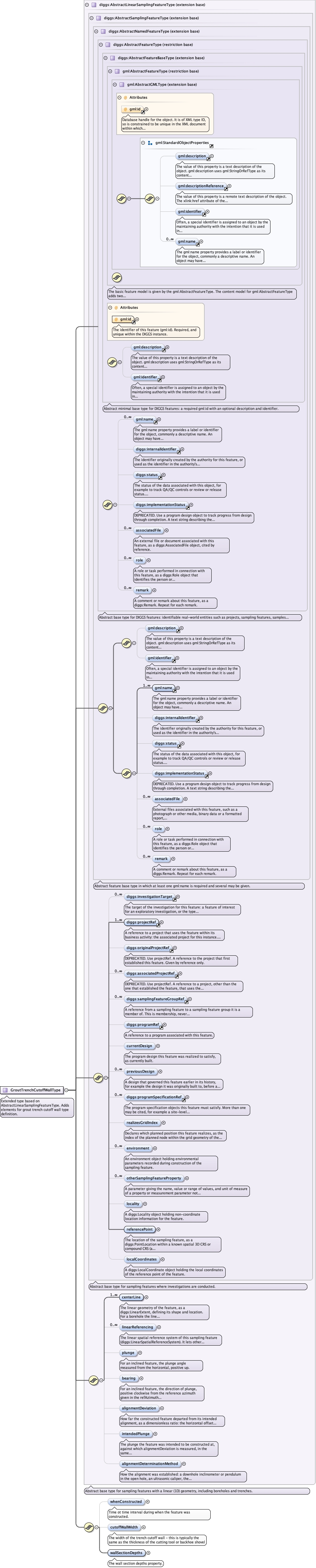

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeCommon_xsd_Element_diggs_investigationTarget.tmp#investigationTargetCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_originalProjectRef.tmp#originalProjectRefCommon_xsd_Element_diggs_associatedProjectRef.tmp#associatedProjectRefCommon_xsd_Element_diggs_samplingFeatureGroupRef.tmp#samplingFeatureGroupRefCommon_xsd_Element_diggs_programRef.tmp#programRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_currentDesignAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_previousDesignCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_realizesGridIndexAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_environmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_otherSamplingFeaturePropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localityAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_referencePointAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localCoordinatesAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_centerLineAbstractTypes_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_linearReferencingAbstractTypes_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_plungeAbstractTypes_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_bearingAbstractTypes_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_alignmentDeviationAbstractTypes_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_intendedPlungeAbstractTypes_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_alignmentDeterminationMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureTypeGrouting_xsd_Complex_Type_diggs_GroutTrenchCutoffWallType.tmp#GroutTrenchCutoffWallType_whenConstructedGrouting_xsd_Complex_Type_diggs_GroutTrenchCutoffWallType.tmp#GroutTrenchCutoffWallType_cutoffWallWidthGrouting_xsd_Complex_Type_diggs_GroutTrenchCutoffWallType.tmp#GroutTrenchCutoffWallType_wallSectionDepths
Type extension of diggs:AbstractLinearSamplingFeatureType
Type hierarchy
Used by
Model
Children diggs:alignmentDeterminationMethod, diggs:alignmentDeviation, diggs:associatedFile, diggs:associatedProjectRef, diggs:bearing, diggs:centerLine, diggs:currentDesign, diggs:cutoffWallWidth, diggs:environment, diggs:implementationStatus, diggs:intendedPlunge, diggs:internalIdentifier, diggs:investigationTarget, diggs:linearReferencing, diggs:localCoordinates, diggs:locality, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:plunge, diggs:previousDesign, diggs:programRef, diggs:programSpecificationRef, diggs:projectRef, diggs:realizesGridIndex, diggs:referencePoint, diggs:remark, diggs:role, diggs:samplingFeatureGroupRef, diggs:status, diggs:wallSectionDepths, diggs:whenConstructed, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="GroutTrenchCutoffWallType">
  <annotation>
    <documentation>Extended type based on AbstractLinearSamplingFeatureType. Adds elements for grout trench cutoff wall type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractLinearSamplingFeatureType">
      <sequence>
        <element minOccurs="0" name="whenConstructed" type="diggs:TimeIntervalPropertyType">
          <annotation>
            <documentation>Time ot time interval during when the feature was constructed.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="cutoffWallWidth" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The width of the trench cutoff wall - this is typically the same as the thickness of the cutting tool or backhoe shovel</documentation>
          </annotation>
        </element>
        <element name="wallSectionDepths" type="diggs:WallSectionDepthsArrayPropertyType">
          <annotation>
            <documentation>The wall section depths property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
