Element diggs:StationType / diggs:whenOccupied
Namespace http://diggsml.org/schemas/3
Annotations

The time interval during which the station was occupied.

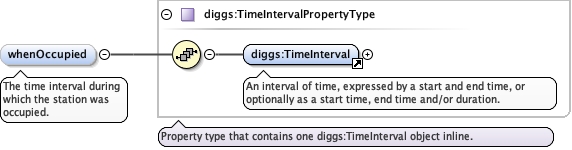

Diagram
DiagramCommon_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalCommon_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:TimeInterval
Instance

<diggs:whenOccupied xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TimeInterval gml:id="">{1,1}</diggs:TimeInterval>
</diggs:whenOccupied>
Source

<element minOccurs="0" name="whenOccupied" type="diggs:TimeIntervalPropertyType">
  <annotation>
    <documentation>The time interval during which the station was occupied.</documentation>
  </annotation>
</element>
Element diggs:StationType / diggs:type
Namespace http://diggsml.org/schemas/3
Annotations

The type of station, for example outcrop or survey marker. No
DIGGS-authored dictionary currently exists for this element.

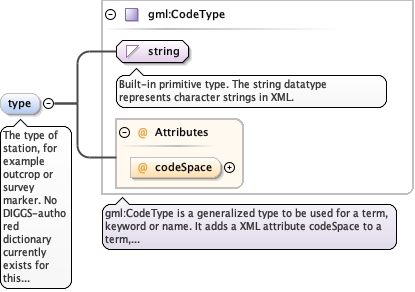

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="type" type="gml:CodeType">
  <annotation>
    <documentation>The type of station, for example outcrop or survey marker. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>
Complex Type diggs:StationType
Namespace http://diggsml.org/schemas/3

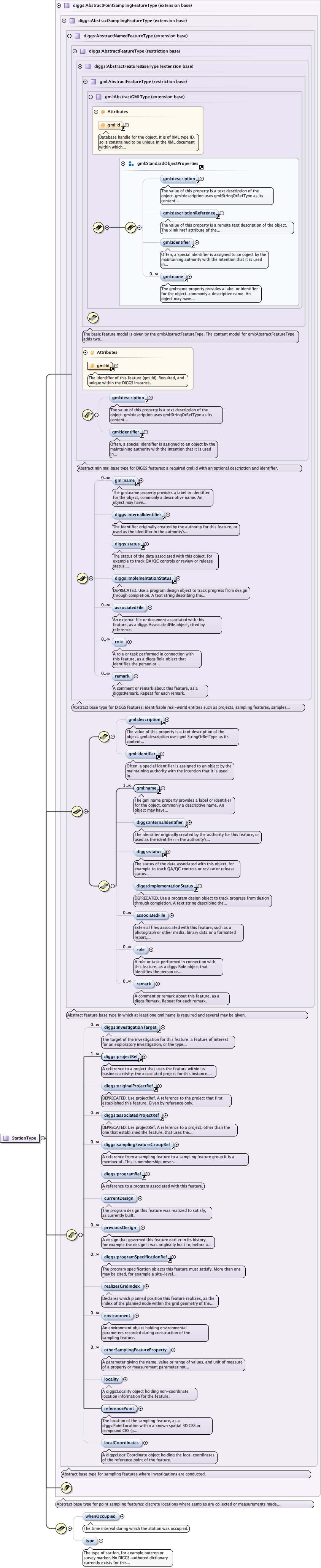

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeCommon_xsd_Element_diggs_investigationTarget.tmp#investigationTargetCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_originalProjectRef.tmp#originalProjectRefCommon_xsd_Element_diggs_associatedProjectRef.tmp#associatedProjectRefCommon_xsd_Element_diggs_samplingFeatureGroupRef.tmp#samplingFeatureGroupRefCommon_xsd_Element_diggs_programRef.tmp#programRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_currentDesignAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_previousDesignCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_realizesGridIndexAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_environmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_otherSamplingFeaturePropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localityAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_referencePointAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localCoordinatesAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureTypeExtSamplingFeatures_xsd_Complex_Type_diggs_AbstractPointSamplingFeatureType.tmp#AbstractPointSamplingFeatureTypeExtSamplingFeatures_xsd_Complex_Type_diggs_StationType.tmp#StationType_whenOccupiedExtSamplingFeatures_xsd_Complex_Type_diggs_StationType.tmp#StationType_type
Type extension of diggs:AbstractPointSamplingFeatureType
Type hierarchy
Used by
Element diggs:Station
Model
Children diggs:associatedFile, diggs:associatedProjectRef, diggs:currentDesign, diggs:environment, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:localCoordinates, diggs:locality, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:previousDesign, diggs:programRef, diggs:programSpecificationRef, diggs:projectRef, diggs:realizesGridIndex, diggs:referencePoint, diggs:remark, diggs:role, diggs:samplingFeatureGroupRef, diggs:status, diggs:type, diggs:whenOccupied, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="StationType">
  <complexContent>
    <extension base="diggs:AbstractPointSamplingFeatureType">
      <sequence>
        <element minOccurs="0" name="whenOccupied" type="diggs:TimeIntervalPropertyType">
          <annotation>
            <documentation>The time interval during which the station was occupied.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="type" type="gml:CodeType">
          <annotation>
            <documentation>The type of station, for example outcrop or survey marker. No DIGGS-authored dictionary currently exists for this element.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
