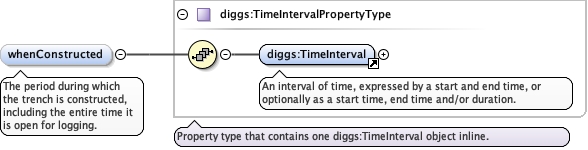

Element diggs:TrenchWallType / diggs:whenConstructed
Namespace http://diggsml.org/schemas/3
Annotations

The period during which the trench is constructed, including the
entire time it is open for logging.
Diagram
DiagramCommon_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalCommon_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:TimeInterval
Instance

<diggs:whenConstructed xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TimeInterval gml:id="">{1,1}</diggs:TimeInterval>
</diggs:whenConstructed>
Source

<element maxOccurs="1" minOccurs="0" name="whenConstructed" type="diggs:TimeIntervalPropertyType">
  <annotation>
    <documentation>The period during which the trench is constructed, including the entire time it is open for logging.</documentation>
  </annotation>
</element>

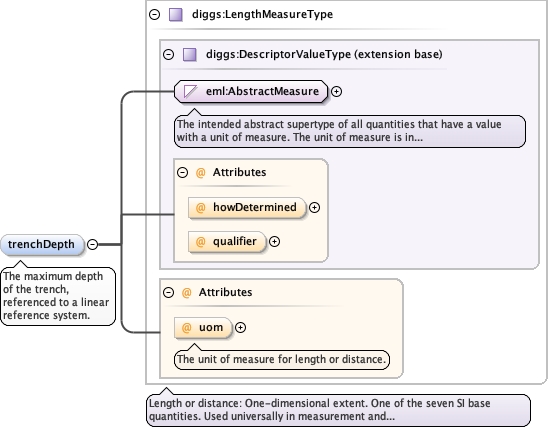

Element diggs:TrenchWallType / diggs:trenchDepth
Namespace http://diggsml.org/schemas/3
Annotations

The maximum depth of the trench, referenced to a linear reference
system.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="trenchDepth" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The maximum depth of the trench, referenced to a linear reference system.</documentation>
  </annotation>
</element>

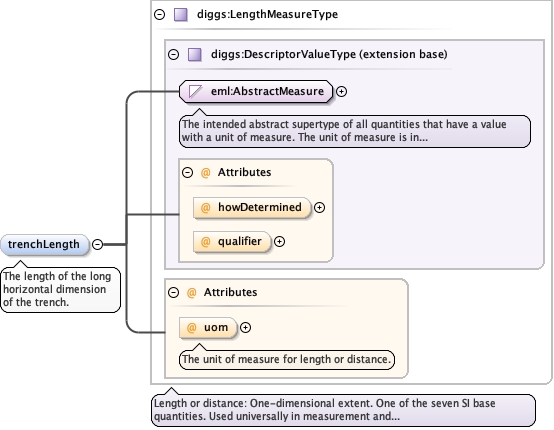

Element diggs:TrenchWallType / diggs:trenchLength
Namespace http://diggsml.org/schemas/3
Annotations

The length of the long horizontal dimension of the trench.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element maxOccurs="1" minOccurs="0" name="trenchLength" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The length of the long horizontal dimension of the trench.</documentation>
  </annotation>
</element>

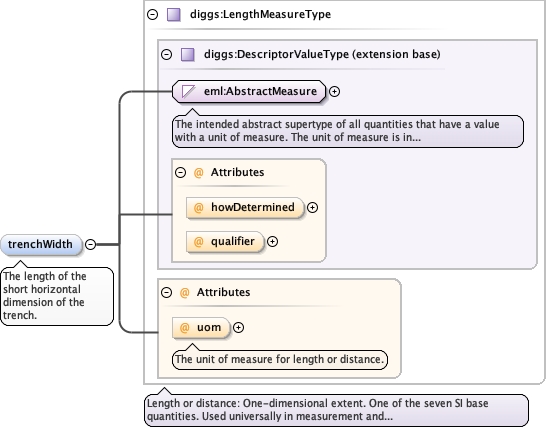

Element diggs:TrenchWallType / diggs:trenchWidth
Namespace http://diggsml.org/schemas/3
Annotations

The length of the short horizontal dimension of the trench.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element maxOccurs="1" minOccurs="0" name="trenchWidth" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The length of the short horizontal dimension of the trench.</documentation>
  </annotation>
</element>

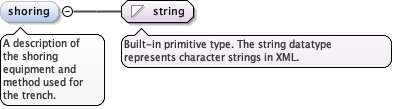

Element diggs:TrenchWallType / diggs:shoring
Namespace http://diggsml.org/schemas/3
Annotations

A description of the shoring equipment and method used for the
trench.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="shoring" type="string">
  <annotation>
    <documentation>A description of the shoring equipment and method used for the trench.</documentation>
  </annotation>
</element>

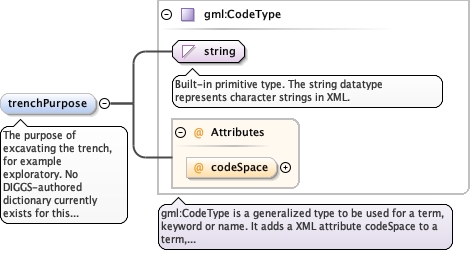

Element diggs:TrenchWallType / diggs:trenchPurpose
Namespace http://diggsml.org/schemas/3
Annotations

The purpose of excavating the trench, for example exploratory. No
DIGGS-authored dictionary currently exists for this element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="1" minOccurs="0" name="trenchPurpose" type="gml:CodeType">
  <annotation>
    <documentation>The purpose of excavating the trench, for example exploratory. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>

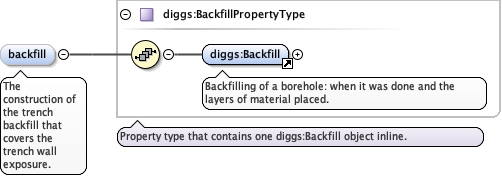

Element diggs:TrenchWallType / diggs:backfill
Namespace http://diggsml.org/schemas/3
Annotations

The construction of the trench backfill that covers the trench wall
exposure.
Diagram
DiagramCore_xsd_Element_diggs_Backfill.tmp#BackfillCore_xsd_Complex_Type_diggs_BackfillPropertyType.tmp#BackfillPropertyType
Type diggs:BackfillPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Backfill
Instance

<diggs:backfill xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Backfill gml:id="">{1,1}</diggs:Backfill>
</diggs:backfill>
Source

<element minOccurs="0" name="backfill" type="diggs:BackfillPropertyType">
  <annotation>
    <documentation>The construction of the trench backfill that covers the trench wall exposure.</documentation>
  </annotation>
</element>

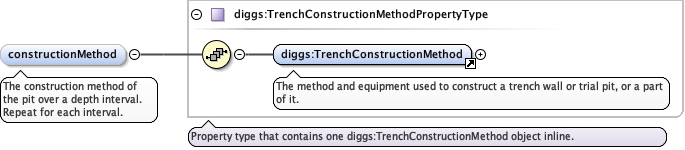

Element diggs:TrenchWallType / diggs:constructionMethod
Namespace http://diggsml.org/schemas/3
Annotations

The construction method of the pit over a depth interval. Repeat for
each interval.
Diagram
DiagramCore_xsd_Element_diggs_TrenchConstructionMethod.tmp#TrenchConstructionMethodCore_xsd_Complex_Type_diggs_TrenchConstructionMethodPropertyType.tmp#TrenchConstructionMethodPropertyType
Type diggs:TrenchConstructionMethodPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:TrenchConstructionMethod
Instance

<diggs:constructionMethod xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TrenchConstructionMethod gml:id="">{1,1}</diggs:TrenchConstructionMethod>
</diggs:constructionMethod>
Source

<element maxOccurs="unbounded" minOccurs="0" name="constructionMethod" type="diggs:TrenchConstructionMethodPropertyType">
  <annotation>
    <documentation>The construction method of the pit over a depth interval. Repeat for each interval.</documentation>
  </annotation>
</element>

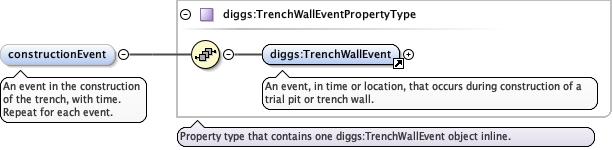

Element diggs:TrenchWallType / diggs:constructionEvent
Namespace http://diggsml.org/schemas/3
Annotations

An event in the construction of the trench, with time. Repeat for
each event.
Diagram
DiagramExtSamplingFeatures_xsd_Element_diggs_TrenchWallEvent.tmp#TrenchWallEventExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallEventPropertyType.tmp#TrenchWallEventPropertyType
Type diggs:TrenchWallEventPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:TrenchWallEvent
Instance

<diggs:constructionEvent xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TrenchWallEvent gml:id="">{1,1}</diggs:TrenchWallEvent>
</diggs:constructionEvent>
Source

<element maxOccurs="unbounded" minOccurs="0" name="constructionEvent" type="diggs:TrenchWallEventPropertyType">
  <annotation>
    <documentation>An event in the construction of the trench, with time. Repeat for each event.</documentation>
  </annotation>
</element>

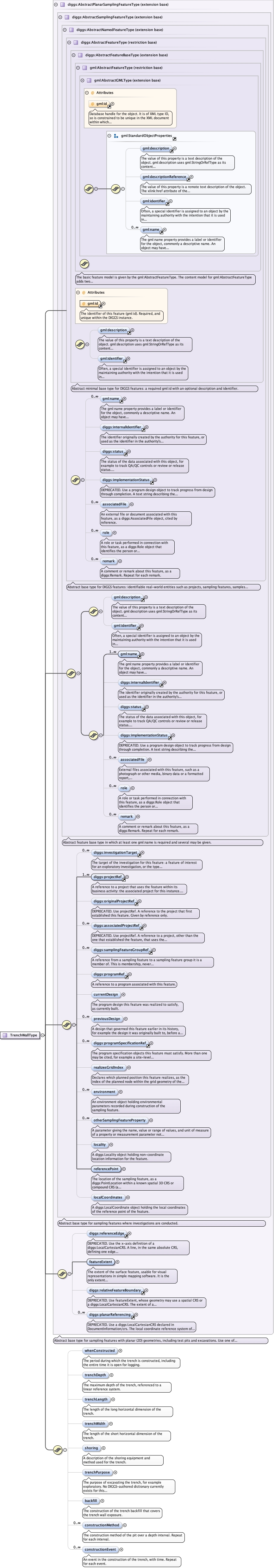

Complex Type diggs:TrenchWallType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeCommon_xsd_Element_diggs_investigationTarget.tmp#investigationTargetCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_originalProjectRef.tmp#originalProjectRefCommon_xsd_Element_diggs_associatedProjectRef.tmp#associatedProjectRefCommon_xsd_Element_diggs_samplingFeatureGroupRef.tmp#samplingFeatureGroupRefCommon_xsd_Element_diggs_programRef.tmp#programRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_currentDesignAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_previousDesignCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_realizesGridIndexAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_environmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_otherSamplingFeaturePropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localityAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_referencePointAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localCoordinatesAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureTypeExtSamplingFeatures_xsd_Element_diggs_referenceEdge.tmp#referenceEdgeExtSamplingFeatures_xsd_Complex_Type_diggs_AbstractPlanarSamplingFeatureType.tmp#AbstractPlanarSamplingFeatureType_featureExtentExtSamplingFeatures_xsd_Element_diggs_relativeFeatureBoundary.tmp#relativeFeatureBoundaryExtSamplingFeatures_xsd_Element_diggs_planarReferencing.tmp#planarReferencingExtSamplingFeatures_xsd_Complex_Type_diggs_AbstractPlanarSamplingFeatureType.tmp#AbstractPlanarSamplingFeatureTypeExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_whenConstructedExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_trenchDepthExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_trenchLengthExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_trenchWidthExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_shoringExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_trenchPurposeExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_backfillExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_constructionMethodExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_constructionEvent
Type extension of diggs:AbstractPlanarSamplingFeatureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:associatedProjectRef, diggs:backfill, diggs:constructionEvent, diggs:constructionMethod, diggs:currentDesign, diggs:environment, diggs:featureExtent, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:localCoordinates, diggs:locality, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:planarReferencing, diggs:previousDesign, diggs:programRef, diggs:programSpecificationRef, diggs:projectRef, diggs:realizesGridIndex, diggs:referenceEdge, diggs:referencePoint, diggs:relativeFeatureBoundary, diggs:remark, diggs:role, diggs:samplingFeatureGroupRef, diggs:shoring, diggs:status, diggs:trenchDepth, diggs:trenchLength, diggs:trenchPurpose, diggs:trenchWidth, diggs:whenConstructed, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="TrenchWallType">
  <complexContent>
    <extension base="diggs:AbstractPlanarSamplingFeatureType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="whenConstructed" type="diggs:TimeIntervalPropertyType">
          <annotation>
            <documentation>The period during which the trench is constructed, including the entire time it is open for logging.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="trenchDepth" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The maximum depth of the trench, referenced to a linear reference system.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="trenchLength" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The length of the long horizontal dimension of the trench.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="trenchWidth" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The length of the short horizontal dimension of the trench.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="shoring" type="string">
          <annotation>
            <documentation>A description of the shoring equipment and method used for the trench.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="trenchPurpose" type="gml:CodeType">
          <annotation>
            <documentation>The purpose of excavating the trench, for example exploratory. No DIGGS-authored dictionary currently exists for this element.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="backfill" type="diggs:BackfillPropertyType">
          <annotation>
            <documentation>The construction of the trench backfill that covers the trench wall exposure.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="constructionMethod" type="diggs:TrenchConstructionMethodPropertyType">
          <annotation>
            <documentation>The construction method of the pit over a depth interval. Repeat for each interval.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="constructionEvent" type="diggs:TrenchWallEventPropertyType">
          <annotation>
            <documentation>An event in the construction of the trench, with time. Repeat for each event.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
