Schema documentation for component diggs:LocalityPropertyType

Showing:

Annotations

Diagrams

Model

Source

Used by

Complex Type diggs:LocalityPropertyType

Namespace

http://diggsml.org/schemas/3

Annotations

Property type that contains one diggs:Locality or diggs:PointLocation object inline.
PointLocation is for sample storage locations where coordinates are known; use
Locality otherwise, for projects, sampling features and non-coordinate sample
storage locations.

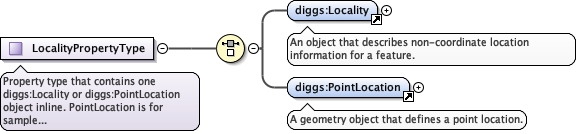

Diagram

Used by

Elements

diggs:AbstractProjectType/diggs:locality, diggs:AbstractSamplingFeatureType/diggs:locality, diggs:ChainOfCustodyEventType/diggs:storageLocation

Model

diggs:Locality | diggs:PointLocation

Children

diggs:Locality, diggs:PointLocation

Source

<complexType name="LocalityPropertyType">
  <annotation>
    <documentation>Property type that contains one diggs:Locality or diggs:PointLocation object inline. PointLocation is for sample storage locations where coordinates are known; use Locality otherwise, for projects, sampling features and non-coordinate sample storage locations.</documentation>
  </annotation>
  <choice>
    <element ref="diggs:Locality" minOccurs="1" maxOccurs="1"/>
    <element ref="diggs:PointLocation"/>
  </choice>
</complexType>
