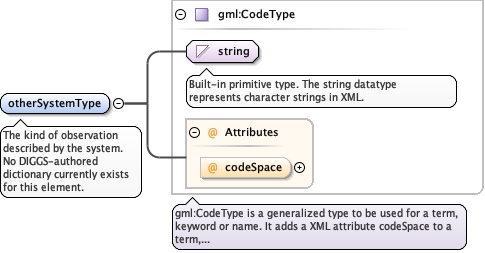

Element diggs:OtherObservationSystemType / diggs:otherSystemType
Namespace http://diggsml.org/schemas/3
Annotations

The kind of observation described by the system. No DIGGS-authored
dictionary currently exists for this element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="otherSystemType" type="gml:CodeType">
  <annotation>
    <documentation>The kind of observation described by the system. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>

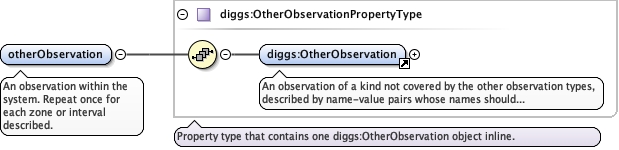

Element diggs:OtherObservationSystemType / diggs:otherObservation
Namespace http://diggsml.org/schemas/3
Annotations

An observation within the system. Repeat once for each zone or
interval described.
Diagram
DiagramExtObservation_xsd_Element_diggs_OtherObservation.tmp#OtherObservationExtObservation_xsd_Complex_Type_diggs_OtherObservationPropertyType.tmp#OtherObservationPropertyType
Type diggs:OtherObservationPropertyType
Properties
content complex
maxOccurs unbounded
Model
Children diggs:OtherObservation
Instance

<diggs:otherObservation xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:OtherObservation howDetermined="" gml:id="" stratumCode="">{1,1}</diggs:OtherObservation>
</diggs:otherObservation>
Source

<element maxOccurs="unbounded" name="otherObservation" type="diggs:OtherObservationPropertyType">
  <annotation>
    <documentation>An observation within the system. Repeat once for each zone or interval described.</documentation>
  </annotation>
</element>

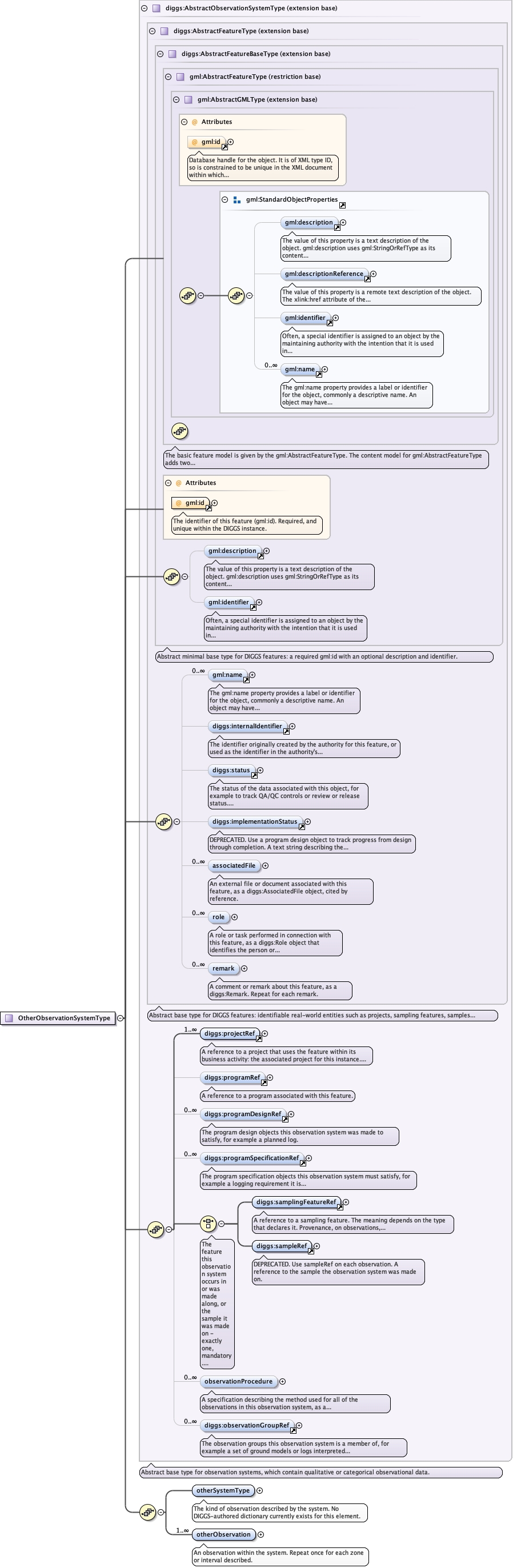

Complex Type diggs:OtherObservationSystemType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_programRef.tmp#programRefCommon_xsd_Element_diggs_programDesignRef.tmp#programDesignRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefCommon_xsd_Element_diggs_samplingFeatureRef.tmp#samplingFeatureRefCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationSystemType.tmp#AbstractObservationSystemType_observationProcedureCommon_xsd_Element_diggs_observationGroupRef.tmp#observationGroupRefAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationSystemType.tmp#AbstractObservationSystemTypeExtObservation_xsd_Complex_Type_diggs_OtherObservationSystemType.tmp#OtherObservationSystemType_otherSystemTypeExtObservation_xsd_Complex_Type_diggs_OtherObservationSystemType.tmp#OtherObservationSystemType_otherObservation
Type extension of diggs:AbstractObservationSystemType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:observationGroupRef, diggs:observationProcedure, diggs:otherObservation, diggs:otherSystemType, diggs:programDesignRef, diggs:programRef, diggs:programSpecificationRef, diggs:projectRef, diggs:remark, diggs:role, diggs:sampleRef, diggs:samplingFeatureRef, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="OtherObservationSystemType">
  <complexContent>
    <extension base="diggs:AbstractObservationSystemType">
      <sequence>
        <element name="otherSystemType" type="gml:CodeType">
          <annotation>
            <documentation>The kind of observation described by the system. No DIGGS-authored dictionary currently exists for this element.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" name="otherObservation" type="diggs:OtherObservationPropertyType">
          <annotation>
            <documentation>An observation within the system. Repeat once for each zone or interval described.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
