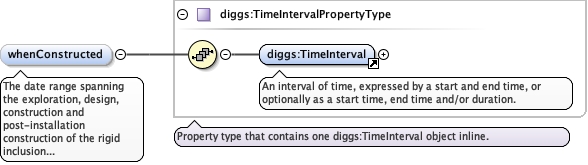

Element diggs:RigidInclusionSystemType / diggs:whenConstructed
Namespace http://diggsml.org/schemas/3
Annotations

The date range spanning the exploration, design, construction and post-installation construction of the rigid inclusion system's columns and load transfer platforms.
Diagram
DiagramCommon_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalCommon_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:TimeInterval
Instance

<diggs:whenConstructed xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TimeInterval gml:id="">{1,1}</diggs:TimeInterval>
</diggs:whenConstructed>
Source

<element minOccurs="0" name="whenConstructed" type="diggs:TimeIntervalPropertyType">
  <annotation>
    <documentation>The date range spanning the exploration, design, construction and post-installation construction of the rigid inclusion system's columns and load transfer platforms.</documentation>
  </annotation>
</element>
Element diggs:RigidInclusionSystemType / diggs:purpose
Namespace http://diggsml.org/schemas/3
Annotations

The purpose of the ground improvement system.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="purpose" type="string">
  <annotation>
    <documentation>The purpose of the ground improvement system.</documentation>
  </annotation>
</element>

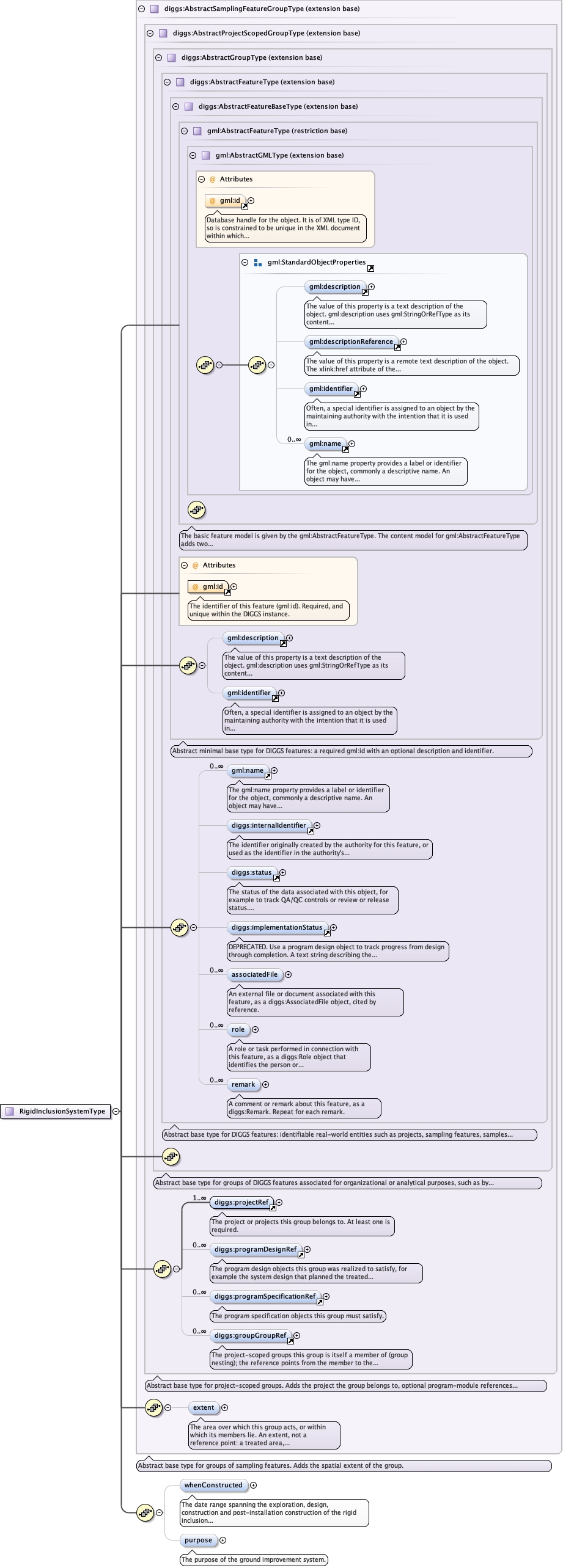

Complex Type diggs:RigidInclusionSystemType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractGroupType.tmp#AbstractGroupTypeCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_programDesignRef.tmp#programDesignRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefCommon_xsd_Element_diggs_groupGroupRef.tmp#groupGroupRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectScopedGroupType.tmp#AbstractProjectScopedGroupTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureGroupType.tmp#AbstractSamplingFeatureGroupType_extentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureGroupType.tmp#AbstractSamplingFeatureGroupTypeRigidInclusions_xsd_Complex_Type_diggs_RigidInclusionSystemType.tmp#RigidInclusionSystemType_whenConstructedRigidInclusions_xsd_Complex_Type_diggs_RigidInclusionSystemType.tmp#RigidInclusionSystemType_purpose
Type extension of diggs:AbstractSamplingFeatureGroupType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:extent, diggs:groupGroupRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:programDesignRef, diggs:programSpecificationRef, diggs:projectRef, diggs:purpose, diggs:remark, diggs:role, diggs:status, diggs:whenConstructed, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="RigidInclusionSystemType">
  <complexContent>
    <extension base="diggs:AbstractSamplingFeatureGroupType">
      <sequence>
        <element minOccurs="0" name="whenConstructed" type="diggs:TimeIntervalPropertyType">
          <annotation>
            <documentation>The date range spanning the exploration, design, construction and post-installation construction of the rigid inclusion system's columns and load transfer platforms.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="purpose" type="string">
          <annotation>
            <documentation>The purpose of the ground improvement system.</documentation>
          </annotation>
        </element>
        <!-- The loadTransferPlatforms containment array was removed here. Load transfer
                         platforms are now top-level sampling features that cite this system through
                         the inherited, optional samplingFeatureGroupRef (GR1/GR2, 2026-08-22,
                         group-redesign - originally a mandatory samplingFeatureRef, retired with
                         this system's reclassification as a group); see LoadTransferPlatformType
                         below. Containment made a foundation system undeliverable until at least one
                         platform existed, which is backwards from construction order - the columns
                         are installed before the platform is built over them. -->
      </sequence>
    </extension>
  </complexContent>
</complexType>
