Element diggs:RigidInclusionSystem
Namespace http://diggsml.org/schemas/3
Annotations

A rigid inclusion ground improvement system: the collection of load transfer
platforms and rigid inclusion columns whose information content is jointly
interpretable because they were built within one treated area. It is a group, not a
sampling feature: a system has an extent but no position, which is what the optional
extent of diggs:AbstractSamplingFeatureGroupType carries. The diggs:RITreatedArea
they were built within is the warrant for interpreting the columns and platforms
jointly. The treated area and the working platforms are properties of
diggs:RITreatedArea, not of this group. The extent of the group is not the treated
footprint, and the two should not be assumed equal: it is the area over which the
group acts or within which its members lie, and a system's members routinely include
exploratory boreholes drilled outside the improved footprint to characterize it, so
it is normally the larger. The treated footprint is the featureExtent of
diggs:RITreatedArea. Membership is declared by the members:
diggs:LoadTransferPlatform and diggs:RIColumn each cite this group through the
inherited diggs:samplingFeatureGroupRef, and the group holds no references to them.

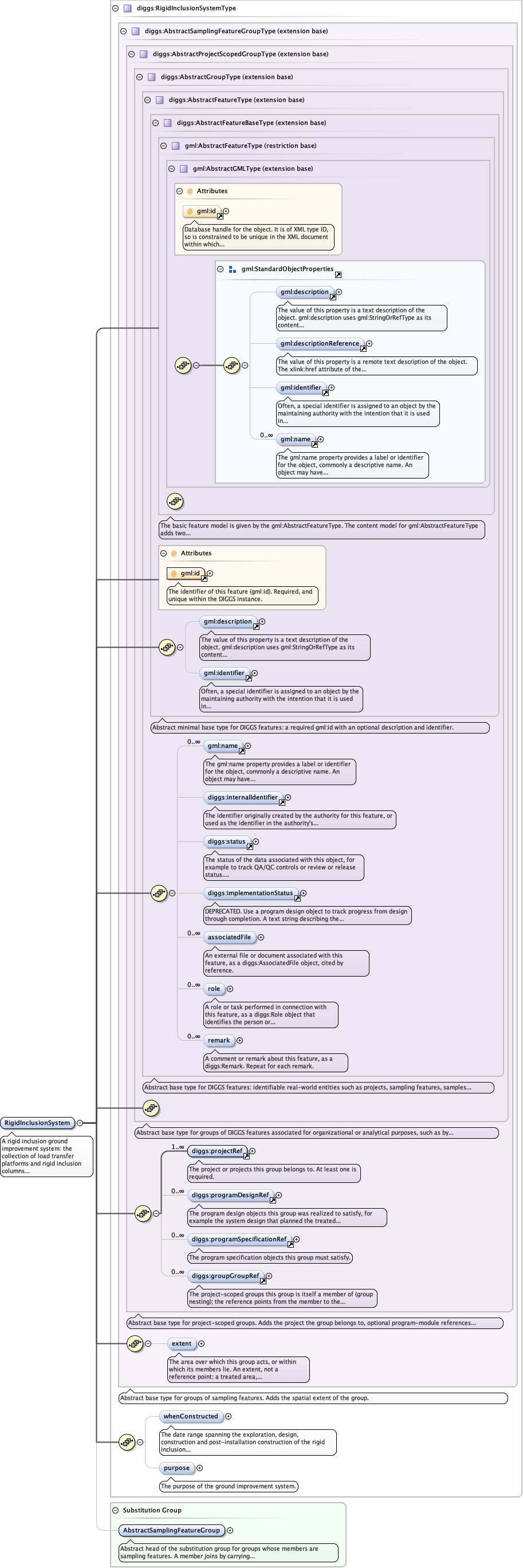

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractGroupType.tmp#AbstractGroupTypeCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_programDesignRef.tmp#programDesignRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefCommon_xsd_Element_diggs_groupGroupRef.tmp#groupGroupRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectScopedGroupType.tmp#AbstractProjectScopedGroupTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureGroupType.tmp#AbstractSamplingFeatureGroupType_extentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureGroupType.tmp#AbstractSamplingFeatureGroupTypeRigidInclusions_xsd_Complex_Type_diggs_RigidInclusionSystemType.tmp#RigidInclusionSystemType_whenConstructedRigidInclusions_xsd_Complex_Type_diggs_RigidInclusionSystemType.tmp#RigidInclusionSystemType_purposeRigidInclusions_xsd_Complex_Type_diggs_RigidInclusionSystemType.tmp#RigidInclusionSystemTypeAbstractTypes_xsd_Element_diggs_AbstractSamplingFeatureGroup.tmp#AbstractSamplingFeatureGroup
Type diggs:RigidInclusionSystemType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:extent, diggs:groupGroupRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:programDesignRef, diggs:programSpecificationRef, diggs:projectRef, diggs:purpose, diggs:remark, diggs:role, diggs:status, diggs:whenConstructed, gml:description, gml:identifier, gml:name
Instance

<diggs:RigidInclusionSystem gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:projectRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:projectRef>
  <diggs:programDesignRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programDesignRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:groupGroupRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:groupGroupRef>
  <diggs:extent owns="false" xlink:href="" nilReason="">{0,1}</diggs:extent>
  <diggs:whenConstructed>{0,1}</diggs:whenConstructed>
  <diggs:purpose>{0,1}</diggs:purpose>
</diggs:RigidInclusionSystem>
