Element diggs:AbstractSamplingFeatureGroup
Namespace http://diggsml.org/schemas/3
Annotations

Abstract head of the substitution group for groups whose members are sampling
features. A member joins by carrying diggs:samplingFeatureGroupRef, declared on
diggs:AbstractSamplingFeatureType.

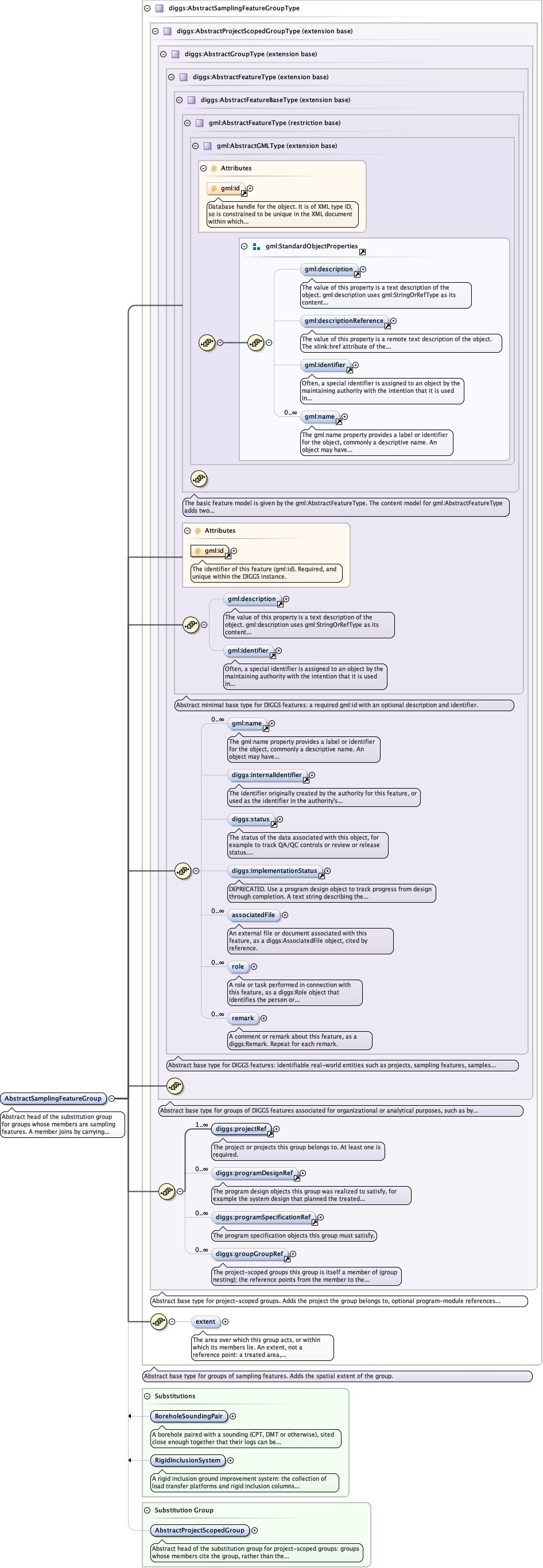

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractGroupType.tmp#AbstractGroupTypeCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_programDesignRef.tmp#programDesignRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefCommon_xsd_Element_diggs_groupGroupRef.tmp#groupGroupRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectScopedGroupType.tmp#AbstractProjectScopedGroupTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureGroupType.tmp#AbstractSamplingFeatureGroupType_extentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureGroupType.tmp#AbstractSamplingFeatureGroupTypeCore_xsd_Element_diggs_BoreholeSoundingPair.tmp#BoreholeSoundingPairRigidInclusions_xsd_Element_diggs_RigidInclusionSystem.tmp#RigidInclusionSystemAbstractTypes_xsd_Element_diggs_AbstractProjectScopedGroup.tmp#AbstractProjectScopedGroup
Type diggs:AbstractSamplingFeatureGroupType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:extent, diggs:groupGroupRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:programDesignRef, diggs:programSpecificationRef, diggs:projectRef, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:AbstractSamplingFeatureGroup gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:projectRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:projectRef>
  <diggs:programDesignRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programDesignRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:groupGroupRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:groupGroupRef>
  <diggs:extent owns="false" xlink:href="" nilReason="">{0,1}</diggs:extent>
</diggs:AbstractSamplingFeatureGroup>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="AbstractSamplingFeatureGroup" type="diggs:AbstractSamplingFeatureGroupType" substitutionGroup="diggs:AbstractProjectScopedGroup" abstract="true">
  <annotation>
    <documentation>Abstract head of the substitution group for groups whose members are sampling features. A member joins by carrying diggs:samplingFeatureGroupRef, declared on diggs:AbstractSamplingFeatureType.</documentation>
  </annotation>
</element>
