Schema documentation for component diggs:AbstractProjectScopedGroupType

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

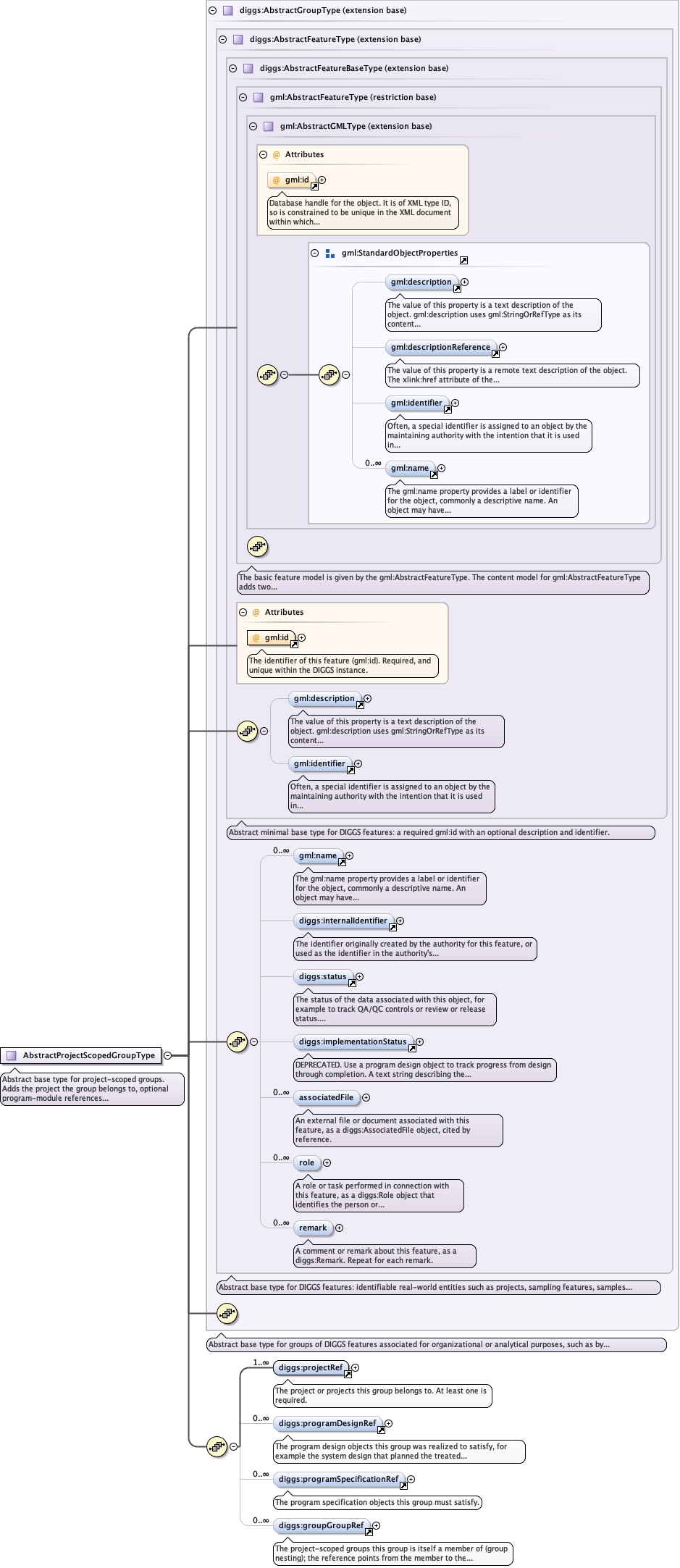

<complexType name="AbstractProjectScopedGroupType" abstract="true">
  <annotation>
    <documentation>Abstract base type for project-scoped groups. Adds the project the group belongs to, optional program-module references and a reference for group nesting.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractGroupType">
      <sequence>
        <element ref="diggs:projectRef" maxOccurs="unbounded">
          <annotation>
            <documentation>The project or projects this group belongs to. At least one is required.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" maxOccurs="unbounded" ref="diggs:programDesignRef">
          <annotation>
            <documentation>The program design objects this group was realized to satisfy, for example the system design that planned the treated area a group of columns occupies.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" maxOccurs="unbounded" ref="diggs:programSpecificationRef">
          <annotation>
            <documentation>The program specification objects this group must satisfy.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" maxOccurs="unbounded" ref="diggs:groupGroupRef">
          <annotation>
            <documentation>The project-scoped groups this group is itself a member of (group nesting); the reference points from the member to the group. Not diggs:groupRef, which points the other way, from a group down to its member groups.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
