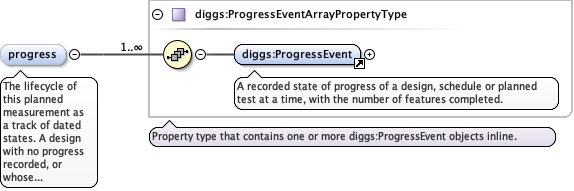

Element diggs:AbstractMeasurementDesignType / diggs:progress
Namespace http://diggsml.org/schemas/3
Annotations

The lifecycle of this planned measurement as a track of dated
states. A design with no progress recorded, or whose latest
progressState has not reached completion, has not yet been
performed.
Diagram
DiagramCore_xsd_Element_diggs_ProgressEvent.tmp#ProgressEventCore_xsd_Complex_Type_diggs_ProgressEventArrayPropertyType.tmp#ProgressEventArrayPropertyType
Type diggs:ProgressEventArrayPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:ProgressEvent
Instance

<diggs:progress xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:ProgressEvent gml:id="">{1,1}</diggs:ProgressEvent>
</diggs:progress>
Source

<element minOccurs="0" name="progress" type="diggs:ProgressEventArrayPropertyType">
  <annotation>
    <documentation>The lifecycle of this planned measurement as a track of dated states. A design with no progress recorded, or whose latest progressState has not reached completion, has not yet been performed.</documentation>
  </annotation>
</element>

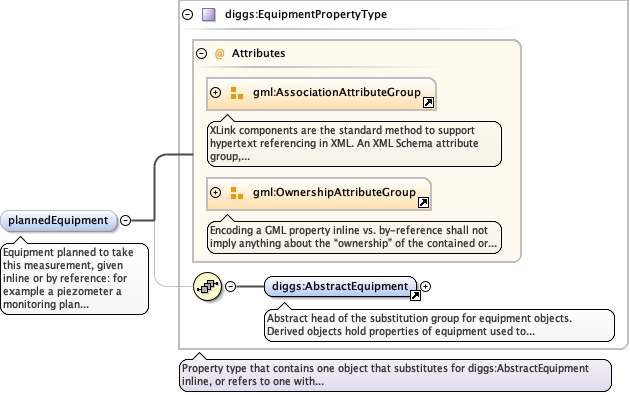

Element diggs:AbstractMeasurementDesignType / diggs:plannedEquipment
Namespace http://diggsml.org/schemas/3
Annotations

Equipment planned to take this measurement, given inline or by
reference: for example a piezometer a monitoring plan intends to
install, a load frame or a logger. The kind of instrument is carried
on the equipment's own class property.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupAbstractTypes_xsd_Element_diggs_AbstractEquipment.tmp#AbstractEquipmentCommon_xsd_Complex_Type_diggs_EquipmentPropertyType.tmp#EquipmentPropertyType
Type diggs:EquipmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractEquipment
Instance

<diggs:plannedEquipment xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractEquipment gml:id="">{1,1}</diggs:AbstractEquipment>
</diggs:plannedEquipment>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="plannedEquipment" type="diggs:EquipmentPropertyType">
  <annotation>
    <documentation>Equipment planned to take this measurement, given inline or by reference: for example a piezometer a monitoring plan intends to install, a load frame or a logger. The kind of instrument is carried on the equipment's own class property.</documentation>
  </annotation>
</element>

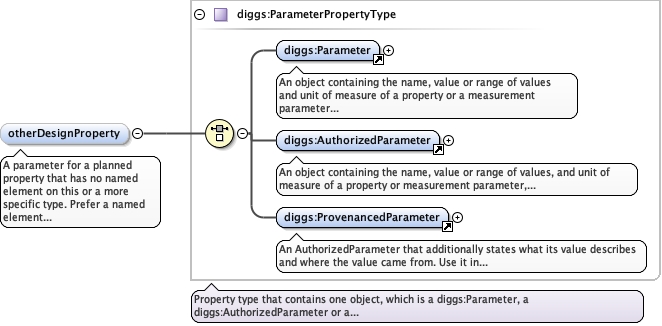

Element diggs:AbstractMeasurementDesignType / diggs:otherDesignProperty
Namespace http://diggsml.org/schemas/3
Annotations

A parameter for a planned property that has no named element on this
or a more specific type. Prefer a named element wherever one exists.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:otherDesignProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:otherDesignProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherDesignProperty" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>A parameter for a planned property that has no named element on this or a more specific type. Prefer a named element wherever one exists.</documentation>
  </annotation>
</element>

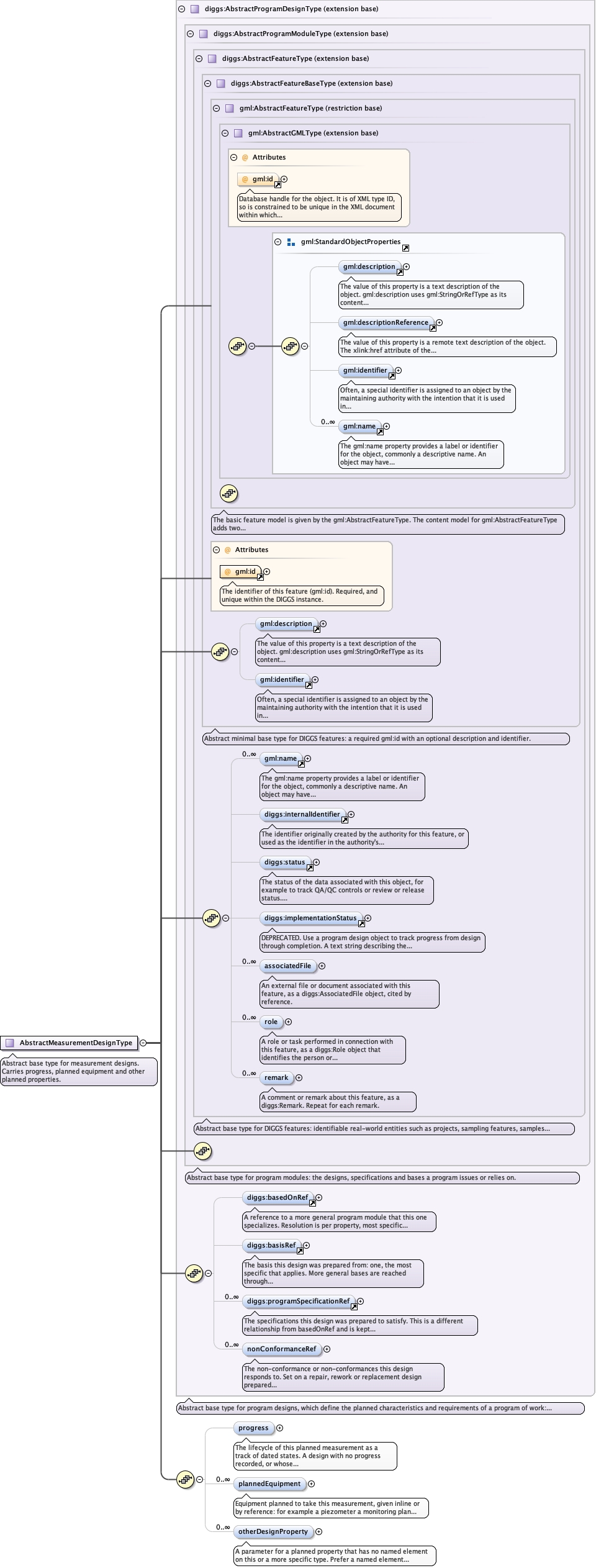

Complex Type diggs:AbstractMeasurementDesignType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for measurement designs. Carries progress, planned equipment and
other planned properties.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramModuleType.tmp#AbstractProgramModuleTypeCommon_xsd_Element_diggs_basedOnRef.tmp#basedOnRefCommon_xsd_Element_diggs_basisRef.tmp#basisRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignType_nonConformanceRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractMeasurementDesignType.tmp#AbstractMeasurementDesignType_progressAbstractTypes_xsd_Complex_Type_diggs_AbstractMeasurementDesignType.tmp#AbstractMeasurementDesignType_plannedEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractMeasurementDesignType.tmp#AbstractMeasurementDesignType_otherDesignProperty
Type extension of diggs:AbstractProgramDesignType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:associatedFile, diggs:basedOnRef, diggs:basisRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:nonConformanceRef, diggs:otherDesignProperty, diggs:plannedEquipment, diggs:programSpecificationRef, diggs:progress, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType abstract="true" name="AbstractMeasurementDesignType">
  <annotation>
    <documentation>Abstract base type for measurement designs. Carries progress, planned equipment and other planned properties.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProgramDesignType">
      <sequence>
        <element minOccurs="0" name="progress" type="diggs:ProgressEventArrayPropertyType">
          <annotation>
            <documentation>The lifecycle of this planned measurement as a track of dated states. A design with no progress recorded, or whose latest progressState has not reached completion, has not yet been performed.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="plannedEquipment" type="diggs:EquipmentPropertyType">
          <annotation>
            <documentation>Equipment planned to take this measurement, given inline or by reference: for example a piezometer a monitoring plan intends to install, a load frame or a logger. The kind of instrument is carried on the equipment's own class property.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="otherDesignProperty" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>A parameter for a planned property that has no named element on this or a more specific type. Prefer a named element wherever one exists.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
