Schema documentation for component diggs:EquipmentPropertyType

Showing:

Annotations

Attributes

Diagrams

Model

Source

Used by

Complex Type diggs:EquipmentPropertyType

Namespace

http://diggsml.org/schemas/3

Annotations

Property type that contains one object that substitutes for diggs:AbstractEquipment
inline, or refers to one with xlink:href.

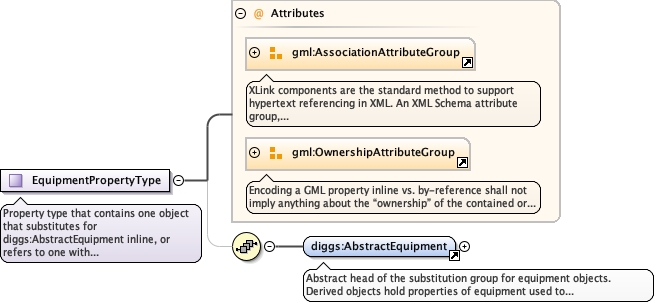

Diagram

Used by

Elements

diggs:AbstractConstructionActivityDesignType/diggs:plannedEquipment, diggs:AbstractConstructionActivityType/diggs:equipment, diggs:AbstractLinearInstallationType/diggs:installationEquipment, diggs:AbstractMeasurementDesignType/diggs:plannedEquipment, diggs:AbstractPlanarInstallationType/diggs:installationEquipment, diggs:AbstractPointInstallationType/diggs:installationEquipment, diggs:AbstractSamplingActivityType/diggs:samplingEquipment, diggs:AbstractSamplingDesignType/diggs:plannedEquipment, diggs:AbstractSamplingFeatureDesignType/diggs:plannedEquipment, diggs:AbstractTestProcedureType/diggs:testProcedureEquipment, diggs:BoreholeConstructionMethodType/diggs:constructionEquipment, diggs:CalibrationType/diggs:referenceStandard, diggs:ConstructionActivitySpecificationType/diggs:requiredEquipment, diggs:GeophysicalProcessingType/diggs:equipment, diggs:GroutStageType/diggs:equipment, diggs:LoadTransferPlatformType/diggs:constructionEquipment, diggs:MeasurementSpecificationType/diggs:requiredEquipment, diggs:ProcessingStepType/diggs:equipment, diggs:SoundingConstructionMethodType/diggs:constructionEquipment, diggs:TrenchConstructionMethodType/diggs:constructionEquipment

Model

diggs:AbstractEquipment

Children

diggs:AbstractEquipment

Attributes

QName	Type	Default	Use
nilReason	gml:NilReasonType		optional
owns	boolean	false	optional
xlink:href	anyURI		optional

Source

<complexType name="EquipmentPropertyType">
  <annotation>
    <documentation>Property type that contains one object that substitutes for diggs:AbstractEquipment inline, or refers to one with xlink:href.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <element ref="diggs:AbstractEquipment" maxOccurs="1"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
  <attributeGroup ref="gml:OwnershipAttributeGroup"/>
</complexType>
