Element diggs:GeophysicalProcessingType / diggs:equipment
Namespace http://diggsml.org/schema-dev
Annotations

A property element that supports a value by reference
only. The target value is indicated in the appinfo
element.

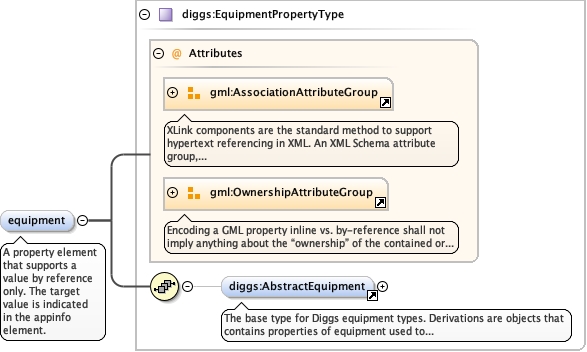

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupKernel_xsd_Element_diggs_AbstractEquipment.tmp#AbstractEquipmentKernel_xsd_Complex_Type_diggs_EquipmentPropertyType.tmp#EquipmentPropertyType
Type diggs:EquipmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractEquipment
Instance

<diggs:equipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:AbstractEquipment gml:id="" xml:lang="">{0,1}</diggs:AbstractEquipment>
</diggs:equipment>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="equipment" type="diggs:EquipmentPropertyType">
  <annotation>
    <appinfo>diggs:AbstractEquipment</appinfo>
    <documentation>A property element that supports a value by reference only. The target value is indicated in the appinfo element.</documentation>
  </annotation>
</element>
Element diggs:GeophysicalProcessingType / diggs:geophysicalFieldSurveyRef
Namespace http://diggsml.org/schema-dev
Annotations

A reference to the gml:ID, reported in the xlink:href
attribute, of the GeophysicalFieldSurvey measurement that contains the results obtained
during data acquisition and that serves as input into the processing
steps that produce the results of this associated
measurement

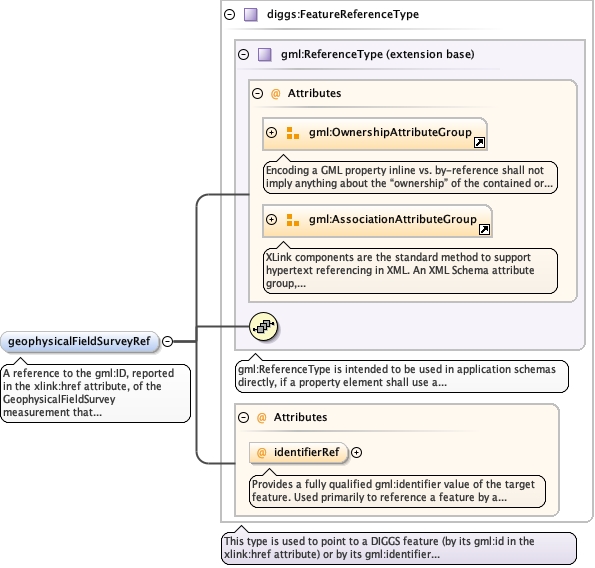

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeKernel_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefKernel_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Attributes
QName Type Fixed Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
Provides a fully qualified gml:identifier value of the target
feature. Used primarily to reference a feature by a globally unique
identifier as opposed to the gml:id
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="geophysicalFieldSurveyRef" type="diggs:FeatureReferenceType">
  <annotation>
    <documentation>A reference to the gml:ID, reported in the xlink:href attribute, of the GeophysicalFieldSurvey measurement that contains the results obtained during data acquisition and that serves as input into the processing steps that produce the results of this associated measurement</documentation>
  </annotation>
</element>
Element diggs:GeophysicalProcessingType / diggs:processingSteps
Namespace http://diggsml.org/schema-dev
Annotations

An array of processing step objects that describe the
steps undertaken to transform the originally acquired geophysical
data to the associated processed results

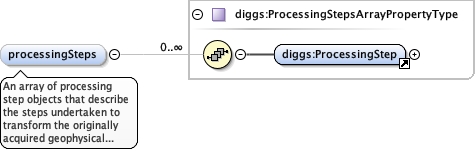

Diagram
DiagramGeophysics_xsd_Element_diggs_ProcessingStep.tmp#ProcessingStepGeophysics_xsd_Complex_Type_diggs_ProcessingStepsArrayPropertyType.tmp#ProcessingStepsArrayPropertyType
Type diggs:ProcessingStepsArrayPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:ProcessingStep
Instance

<diggs:processingSteps xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:ProcessingStep index="" owns="false">{1,1}</diggs:ProcessingStep>
</diggs:processingSteps>
Source

<element minOccurs="0" name="processingSteps" type="diggs:ProcessingStepsArrayPropertyType">
  <annotation>
    <documentation>An array of processing step objects that describe the steps undertaken to transform the originally acquired geophysical data to the associated processed results</documentation>
  </annotation>
</element>
Complex Type diggs:GeophysicalProcessingType
Namespace http://diggsml.org/schema-dev

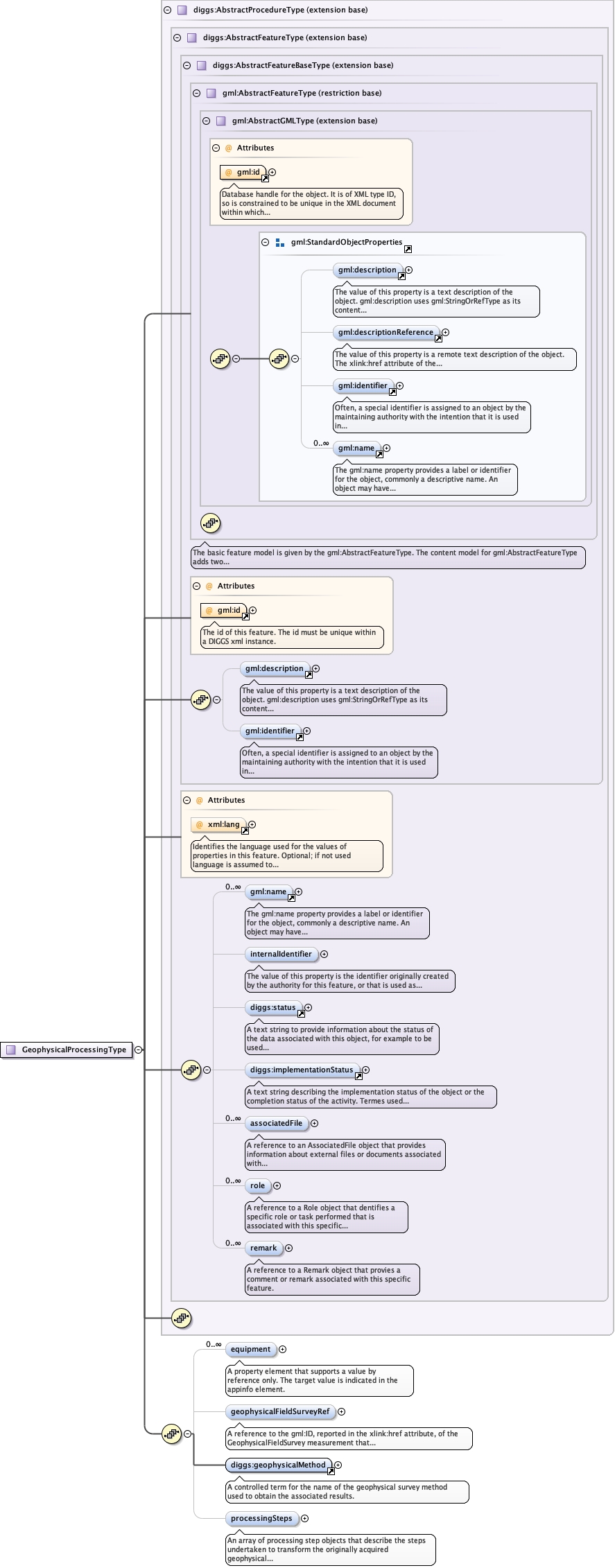

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeGeophysics_xsd_Complex_Type_diggs_GeophysicalProcessingType.tmp#GeophysicalProcessingType_equipmentGeophysics_xsd_Complex_Type_diggs_GeophysicalProcessingType.tmp#GeophysicalProcessingType_geophysicalFieldSurveyRefGeophysics_xsd_Element_diggs_geophysicalMethod.tmp#geophysicalMethodGeophysics_xsd_Complex_Type_diggs_GeophysicalProcessingType.tmp#GeophysicalProcessingType_processingSteps
Type extension of diggs:AbstractProcedureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:equipment, diggs:geophysicalFieldSurveyRef, diggs:geophysicalMethod, diggs:implementationStatus, diggs:internalIdentifier, diggs:processingSteps, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="GeophysicalProcessingType">
  <complexContent>
    <extension base="diggs:AbstractProcedureType">
      <sequence>
        <element maxOccurs="unbounded" minOccurs="0" name="equipment" type="diggs:EquipmentPropertyType">
          <annotation>
            <appinfo>diggs:AbstractEquipment</appinfo>
            <documentation>A property element that supports a value by reference only. The target value is indicated in the appinfo element.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="geophysicalFieldSurveyRef" type="diggs:FeatureReferenceType">
          <annotation>
            <documentation>A reference to the gml:ID, reported in the xlink:href attribute, of the GeophysicalFieldSurvey measurement that contains the results obtained during data acquisition and that serves as input into the processing steps that produce the results of this associated measurement</documentation>
          </annotation>
        </element>
        <element ref="diggs:geophysicalMethod" minOccurs="1">
          <annotation>
            <documentation>A controlled term for the name of the geophysical survey method used to obtain the associated results.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="processingSteps" type="diggs:ProcessingStepsArrayPropertyType">
          <annotation>
            <documentation>An array of processing step objects that describe the steps undertaken to transform the originally acquired geophysical data to the associated processed results</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
