Element diggs:AbstractTestProcedureType / diggs:testProcedureMethod
Namespace http://diggsml.org/schemas/3
Annotations

The method used for the test procedure, as a diggs:Specification or
a reference to one. Repeat to cite several standards that govern the
same procedure.

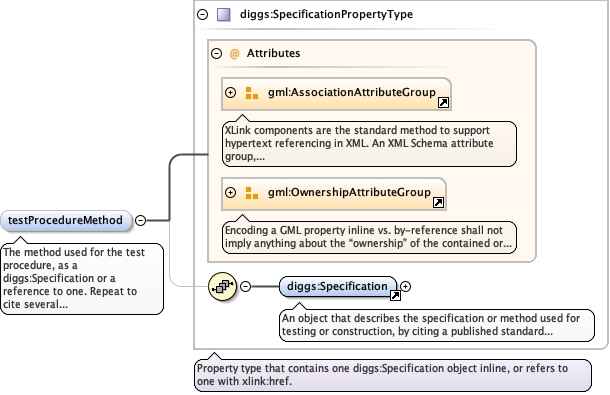

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_Specification.tmp#SpecificationCommon_xsd_Complex_Type_diggs_SpecificationPropertyType.tmp#SpecificationPropertyType
Type diggs:SpecificationPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Specification
Instance

<diggs:testProcedureMethod xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Specification gml:id="">{1,1}</diggs:Specification>
</diggs:testProcedureMethod>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="testProcedureMethod" type="diggs:SpecificationPropertyType" maxOccurs="unbounded" minOccurs="0">
  <annotation>
    <documentation>The method used for the test procedure, as a diggs:Specification or a reference to one. Repeat to cite several standards that govern the same procedure.</documentation>
  </annotation>
</element>
Element diggs:AbstractTestProcedureType / diggs:testProcedureEquipment
Namespace http://diggsml.org/schemas/3
Annotations

The equipment used in the test procedure, as an object that
substitutes for diggs:AbstractEquipment, given inline or by
reference. Repeat for each item.

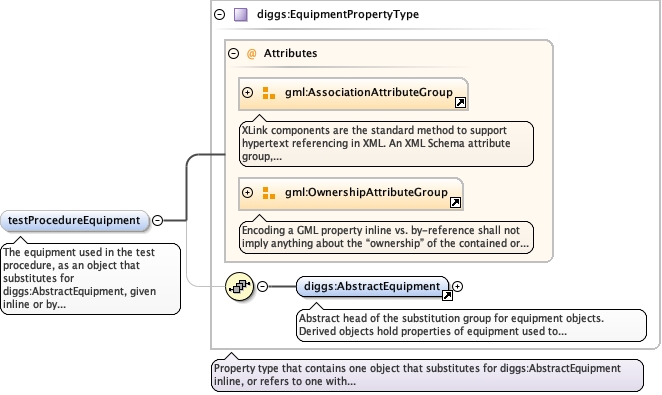

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupAbstractTypes_xsd_Element_diggs_AbstractEquipment.tmp#AbstractEquipmentCommon_xsd_Complex_Type_diggs_EquipmentPropertyType.tmp#EquipmentPropertyType
Type diggs:EquipmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractEquipment
Instance

<diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractEquipment gml:id="">{1,1}</diggs:AbstractEquipment>
</diggs:testProcedureEquipment>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="testProcedureEquipment" type="diggs:EquipmentPropertyType" maxOccurs="unbounded" minOccurs="0">
  <annotation>
    <appinfo>diggs:AbstractEquipment</appinfo>
    <documentation>The equipment used in the test procedure, as an object that substitutes for diggs:AbstractEquipment, given inline or by reference. Repeat for each item.</documentation>
  </annotation>
</element>
Element diggs:AbstractTestProcedureType / diggs:testingEnvironment
Namespace http://diggsml.org/schemas/3
Annotations

Environmental conditions during testing. Values at different times
during the test can be given in several elements, using the dateTime
property of the environment object.

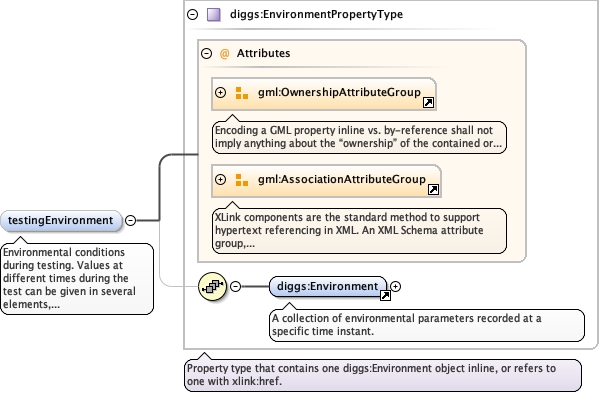

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCommon_xsd_Element_diggs_Environment.tmp#EnvironmentCommon_xsd_Complex_Type_diggs_EnvironmentPropertyType.tmp#EnvironmentPropertyType
Type diggs:EnvironmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Environment
Instance

<diggs:testingEnvironment xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Environment gml:id="">{1,1}</diggs:Environment>
</diggs:testingEnvironment>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element minOccurs="0" name="testingEnvironment" maxOccurs="unbounded" type="diggs:EnvironmentPropertyType">
  <annotation>
    <documentation>Environmental conditions during testing. Values at different times during the test can be given in several elements, using the dateTime property of the environment object.</documentation>
  </annotation>
</element>
Element diggs:AbstractTestProcedureType / diggs:otherTestProperty
Namespace http://diggsml.org/schemas/3
Annotations

A parameter recording a test property not otherwise provided for.
Repeat for each property.

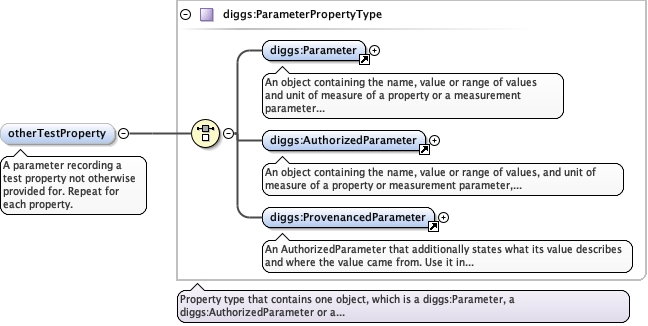

Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Element_diggs_AuthorizedParameter.tmp#AuthorizedParameterCommon_xsd_Element_diggs_ProvenancedParameter.tmp#ProvenancedParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AuthorizedParameter, diggs:Parameter, diggs:ProvenancedParameter
Instance

<diggs:otherTestProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
  <diggs:AuthorizedParameter gml:id="" index="">{1,1}</diggs:AuthorizedParameter>
  <diggs:ProvenancedParameter gml:id="" index="">{1,1}</diggs:ProvenancedParameter>
</diggs:otherTestProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherTestProperty" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>A parameter recording a test property not otherwise provided for. Repeat for each property.</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractTestProcedureType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for test procedures, which define how tests are performed.

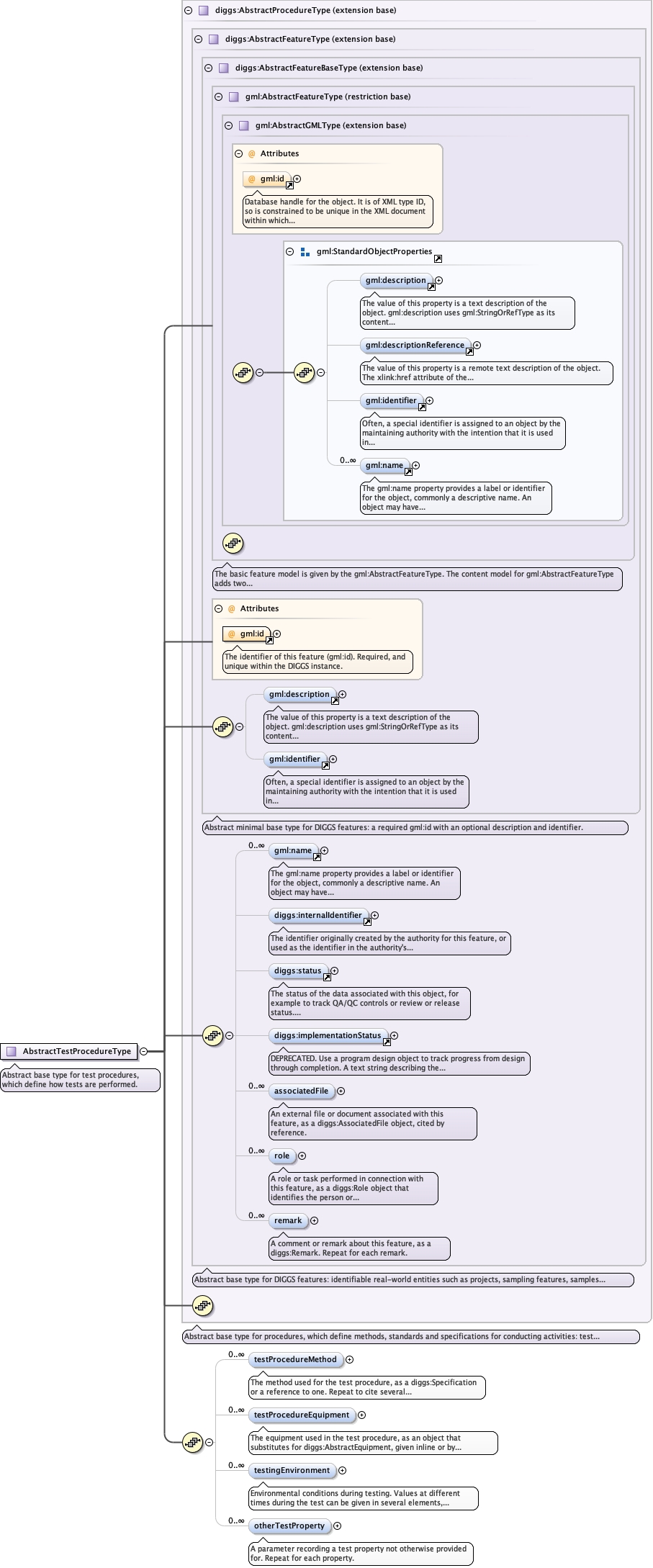

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestProperty
Type extension of diggs:AbstractProcedureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:status, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractTestProcedureType">
  <annotation>
    <documentation>Abstract base type for test procedures, which define how tests are performed.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProcedureType">
      <sequence>
        <element name="testProcedureMethod" type="diggs:SpecificationPropertyType" maxOccurs="unbounded" minOccurs="0">
          <annotation>
            <documentation>The method used for the test procedure, as a diggs:Specification or a reference to one. Repeat to cite several standards that govern the same procedure.</documentation>
          </annotation>
        </element>
        <element name="testProcedureEquipment" type="diggs:EquipmentPropertyType" maxOccurs="unbounded" minOccurs="0">
          <annotation>
            <appinfo>diggs:AbstractEquipment</appinfo>
            <documentation>The equipment used in the test procedure, as an object that substitutes for diggs:AbstractEquipment, given inline or by reference. Repeat for each item.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="testingEnvironment" maxOccurs="unbounded" type="diggs:EnvironmentPropertyType">
          <annotation>
            <documentation>Environmental conditions during testing. Values at different times during the test can be given in several elements, using the dateTime property of the environment object.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="otherTestProperty" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>A parameter recording a test property not otherwise provided for. Repeat for each property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
