Element diggs:AbstractMaterialTestProcedureType / diggs:testEvent
Namespace http://diggsml.org/schemas/3
Annotations

An event observed during the material test: a
diggs:LaboratoryTestEvent, which is a concrete extension of
diggs:AbstractEventType with no additional properties.

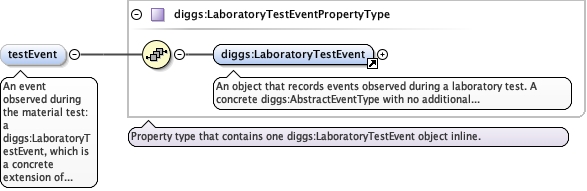

Diagram
DiagramCommon_xsd_Element_diggs_LaboratoryTestEvent.tmp#LaboratoryTestEventCommon_xsd_Complex_Type_diggs_LaboratoryTestEventPropertyType.tmp#LaboratoryTestEventPropertyType
Type diggs:LaboratoryTestEventPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:LaboratoryTestEvent
Instance

<diggs:testEvent xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LaboratoryTestEvent gml:id="">{1,1}</diggs:LaboratoryTestEvent>
</diggs:testEvent>
Source

<element minOccurs="0" name="testEvent" type="diggs:LaboratoryTestEventPropertyType">
  <annotation>
    <documentation>An event observed during the material test: a diggs:LaboratoryTestEvent, which is a concrete extension of diggs:AbstractEventType with no additional properties.</documentation>
  </annotation>
</element>
Element diggs:AbstractMaterialTestProcedureType / diggs:specimen
Namespace http://diggsml.org/schemas/3
Annotations

A specimen used in the material test, described by a
specialization of diggs:AbstractSpecimen. At least one is
required.

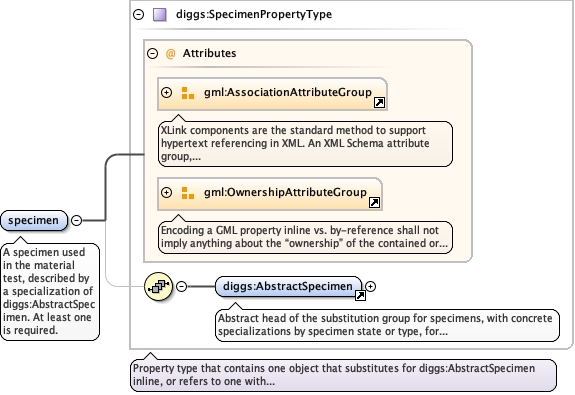

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupAbstractTypes_xsd_Element_diggs_AbstractSpecimen.tmp#AbstractSpecimenCommon_xsd_Complex_Type_diggs_SpecimenPropertyType.tmp#SpecimenPropertyType
Type diggs:SpecimenPropertyType
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children diggs:AbstractSpecimen
Instance

<diggs:specimen xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractSpecimen gml:id="">{1,1}</diggs:AbstractSpecimen>
</diggs:specimen>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element maxOccurs="unbounded" minOccurs="1" name="specimen" type="diggs:SpecimenPropertyType">
  <annotation>
    <documentation>A specimen used in the material test, described by a specialization of diggs:AbstractSpecimen. At least one is required.</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractMaterialTestProcedureType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for laboratory test procedures performed on manufactured material
samples, as opposed to field-collected samples: grout, concrete, slurry and other
engineered materials. They are performed on specially prepared specimens rather than
on samples extracted from a sampling feature.

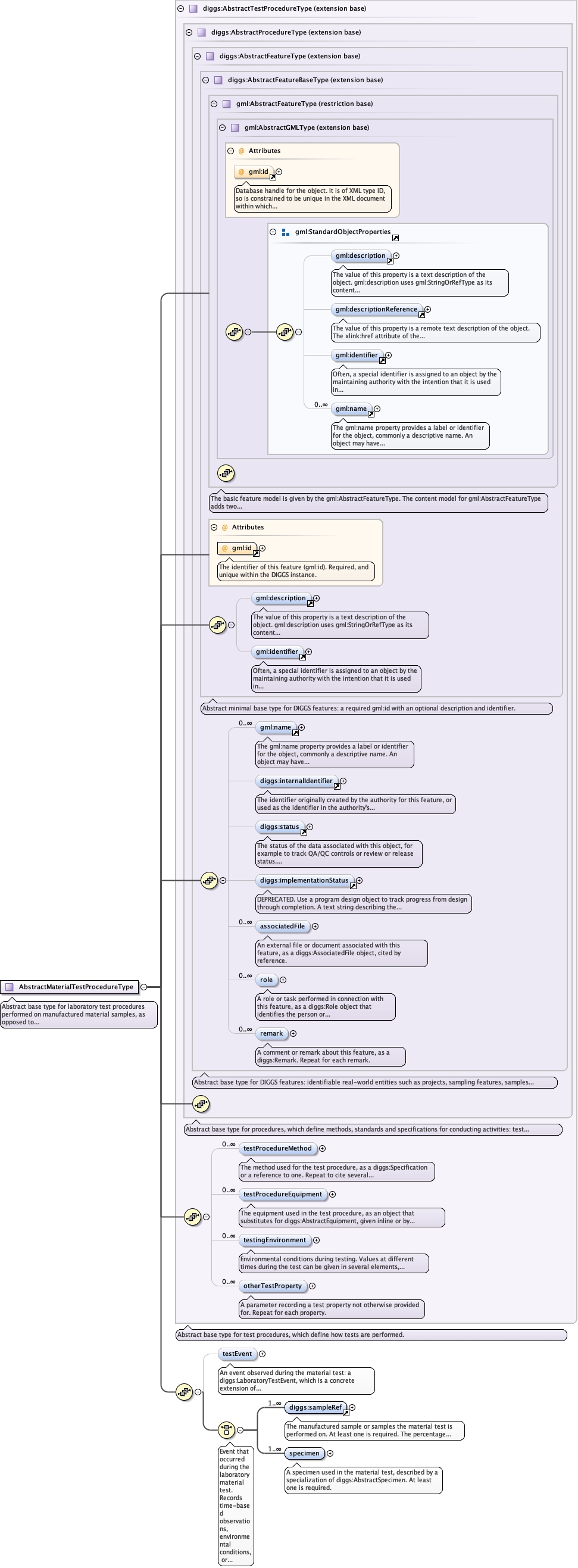

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractMaterialTestProcedureType.tmp#AbstractMaterialTestProcedureType_testEventCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefAbstractTypes_xsd_Complex_Type_diggs_AbstractMaterialTestProcedureType.tmp#AbstractMaterialTestProcedureType_specimen
Type extension of diggs:AbstractTestProcedureType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:sampleRef, diggs:specimen, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractMaterialTestProcedureType" abstract="true">
  <annotation>
    <documentation>Abstract base type for laboratory test procedures performed on manufactured material samples, as opposed to field-collected samples: grout, concrete, slurry and other engineered materials. They are performed on specially prepared specimens rather than on samples extracted from a sampling feature.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractTestProcedureType">
      <sequence>
        <element minOccurs="0" name="testEvent" type="diggs:LaboratoryTestEventPropertyType">
          <annotation>
            <documentation>An event observed during the material test: a diggs:LaboratoryTestEvent, which is a concrete extension of diggs:AbstractEventType with no additional properties.</documentation>
          </annotation>
        </element>
        <choice>
          <annotation>
            <documentation>Event that occurred during the laboratory material test. Records time-based observations, environmental conditions, or procedural notes made during test execution on manufactured material specimens.</documentation>
          </annotation>
          <element maxOccurs="unbounded" minOccurs="1" ref="diggs:sampleRef">
            <annotation>
              <documentation>The manufactured sample or samples the material test is performed on. At least one is required. The percentage attribute can state the proportion each sample contributes.</documentation>
            </annotation>
          </element>
          <element maxOccurs="unbounded" minOccurs="1" name="specimen" type="diggs:SpecimenPropertyType">
            <annotation>
              <documentation>A specimen used in the material test, described by a specialization of diggs:AbstractSpecimen. At least one is required.</documentation>
            </annotation>
          </element>
        </choice>
      </sequence>
    </extension>
  </complexContent>
</complexType>
