Schema documentation for component diggs:SpecimenPropertyType

Showing:

Annotations

Attributes

Diagrams

Model

Source

Used by

Complex Type diggs:SpecimenPropertyType

Namespace

http://diggsml.org/schemas/3

Annotations

Property type that contains one object that substitutes for diggs:AbstractSpecimen
inline, or refers to one with xlink:href.

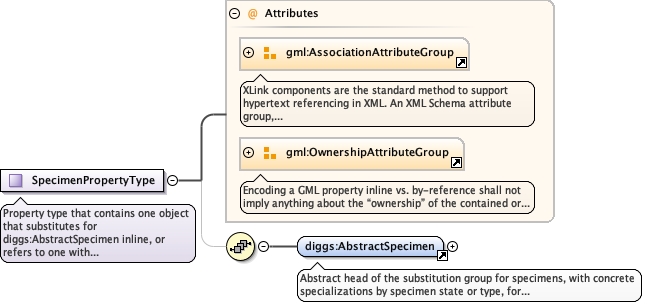

Diagram

Used by

Elements

diggs:AbstractLaboratoryTestProcedureType/diggs:specimen, diggs:AbstractMaterialTestProcedureType/diggs:specimen

Model

diggs:AbstractSpecimen

Children

diggs:AbstractSpecimen

Attributes

QName	Type	Default	Use
nilReason	gml:NilReasonType		optional
owns	boolean	false	optional
xlink:href	anyURI		optional

Source

<complexType name="SpecimenPropertyType">
  <annotation>
    <documentation>Property type that contains one object that substitutes for diggs:AbstractSpecimen inline, or refers to one with xlink:href.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <element maxOccurs="1" ref="diggs:AbstractSpecimen"/>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
  <attributeGroup ref="gml:OwnershipAttributeGroup"/>
</complexType>
