Element diggs:AbstractInsituTestProcedureType / diggs:testEvent
Namespace http://diggsml.org/schemas/3
Annotations

A time-based or location-based record of instantaneous conditions or
parameters associated with the in-situ test, such as casing depth,
water level or custom parameters. Holds one or more event objects,
of the kind associated with the type of sampling feature the test is
performed in: for a standard penetration test in a borehole, a
diggs:BoreholeEvent recording the depth to water at various times
during the test.

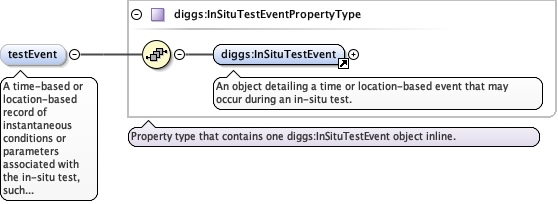

Diagram
DiagramCommon_xsd_Element_diggs_InSituTestEvent.tmp#InSituTestEventCommon_xsd_Complex_Type_diggs_InSituTestEventPropertyType.tmp#InSituTestEventPropertyType
Type diggs:InSituTestEventPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:InSituTestEvent
Instance

<diggs:testEvent xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:InSituTestEvent gml:id="">{1,1}</diggs:InSituTestEvent>
</diggs:testEvent>
Source

<element minOccurs="0" name="testEvent" type="diggs:InSituTestEventPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>A time-based or location-based record of instantaneous conditions or parameters associated with the in-situ test, such as casing depth, water level or custom parameters. Holds one or more event objects, of the kind associated with the type of sampling feature the test is performed in: for a standard penetration test in a borehole, a diggs:BoreholeEvent recording the depth to water at various times during the test.</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractInsituTestProcedureType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract base type for in-situ test procedures performed at sampling features
without removing specimens.

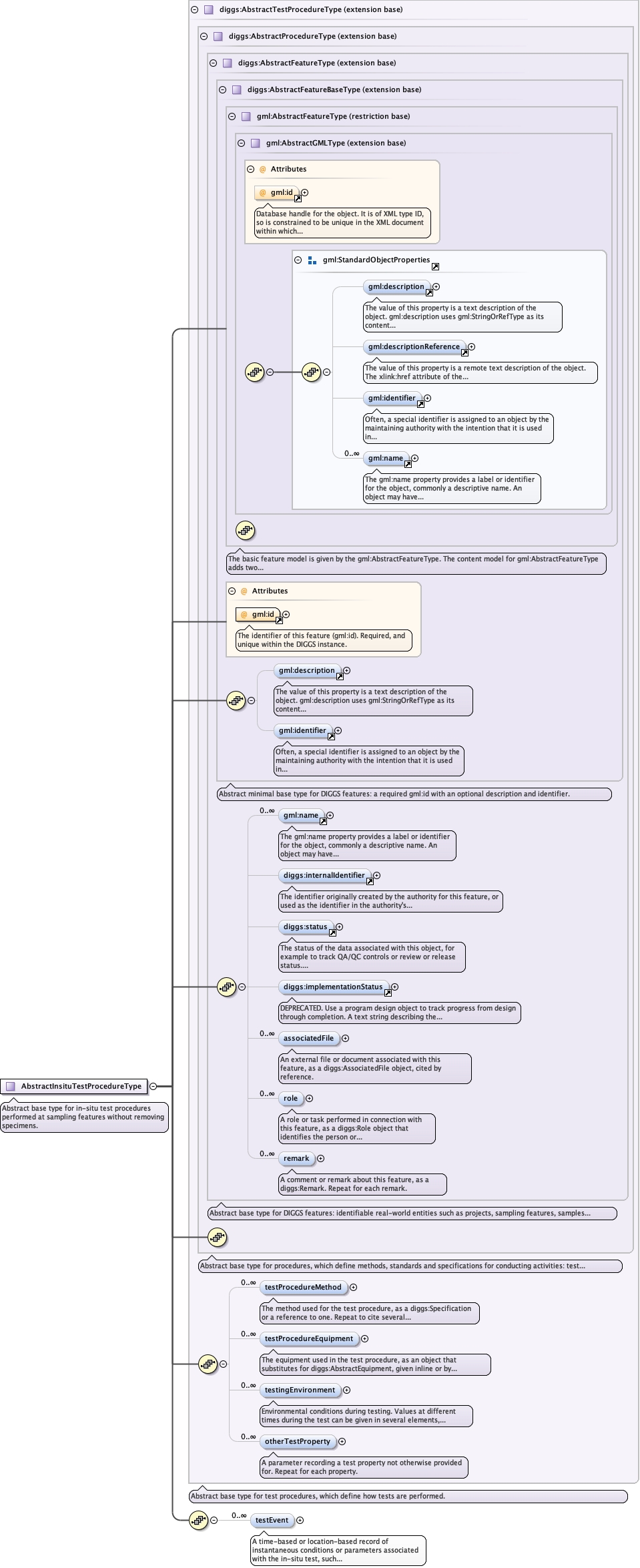

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEvent
Type extension of diggs:AbstractTestProcedureType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType abstract="true" name="AbstractInsituTestProcedureType">
  <annotation>
    <documentation>Abstract base type for in-situ test procedures performed at sampling features without removing specimens.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractTestProcedureType">
      <sequence>
        <element minOccurs="0" name="testEvent" type="diggs:InSituTestEventPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>A time-based or location-based record of instantaneous conditions or parameters associated with the in-situ test, such as casing depth, water level or custom parameters. Holds one or more event objects, of the kind associated with the type of sampling feature the test is performed in: for a standard penetration test in a borehole, a diggs:BoreholeEvent recording the depth to water at various times during the test.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
