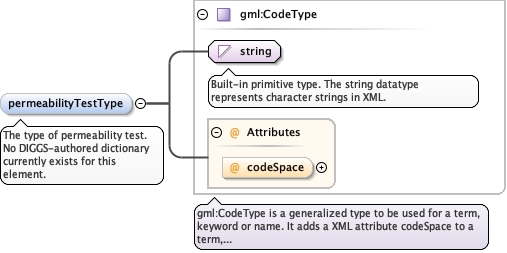

Element diggs:InsituPermeabilityTestType / diggs:permeabilityTestType
Namespace http://diggsml.org/schemas/3
Annotations

The type of permeability test. No DIGGS-authored dictionary
currently exists for this element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
default false
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="permeabilityTestType" type="gml:CodeType" default="false" minOccurs="0">
  <annotation>
    <documentation>The type of permeability test. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>

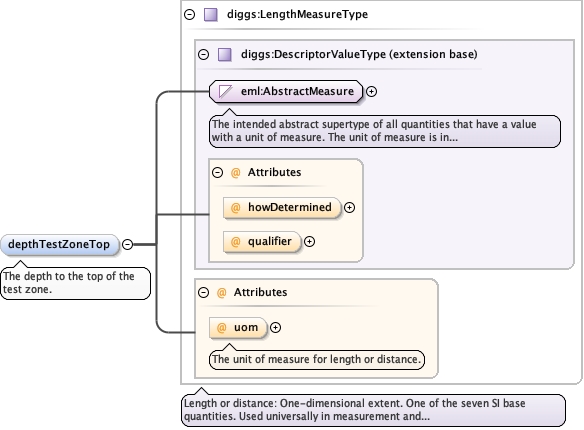

Element diggs:InsituPermeabilityTestType / diggs:depthTestZoneTop
Namespace http://diggsml.org/schemas/3
Annotations

The depth to the top of the test zone.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="depthTestZoneTop" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The depth to the top of the test zone.</documentation>
  </annotation>
</element>

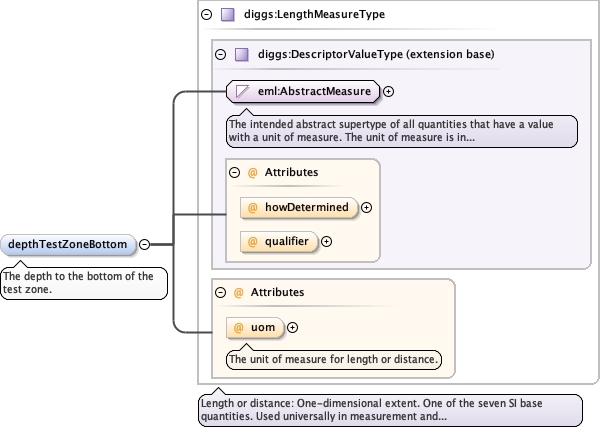

Element diggs:InsituPermeabilityTestType / diggs:depthTestZoneBottom
Namespace http://diggsml.org/schemas/3
Annotations

The depth to the bottom of the test zone.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="depthTestZoneBottom" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The depth to the bottom of the test zone.</documentation>
  </annotation>
</element>
Element diggs:InsituPermeabilityTestType / diggs:stage
Namespace http://diggsml.org/schemas/3
Annotations

The stage number of a multistage packer test.
Diagram
Diagram
Type integer
Properties
content simple
minOccurs 0
Source

<element name="stage" type="integer" minOccurs="0">
  <annotation>
    <documentation>The stage number of a multistage packer test.</documentation>
  </annotation>
</element>

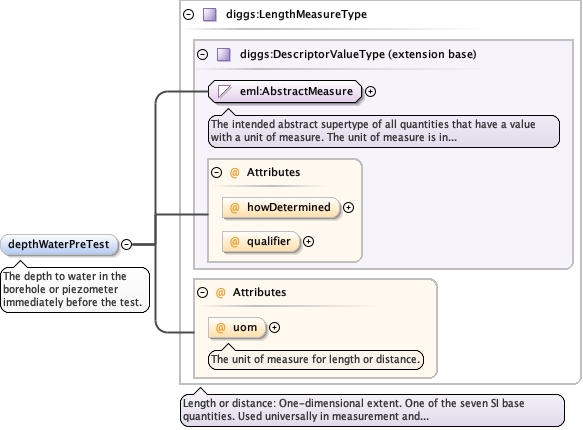

Element diggs:InsituPermeabilityTestType / diggs:depthWaterPreTest
Namespace http://diggsml.org/schemas/3
Annotations

The depth to water in the borehole or piezometer immediately before
the test.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="depthWaterPreTest" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The depth to water in the borehole or piezometer immediately before the test.</documentation>
  </annotation>
</element>

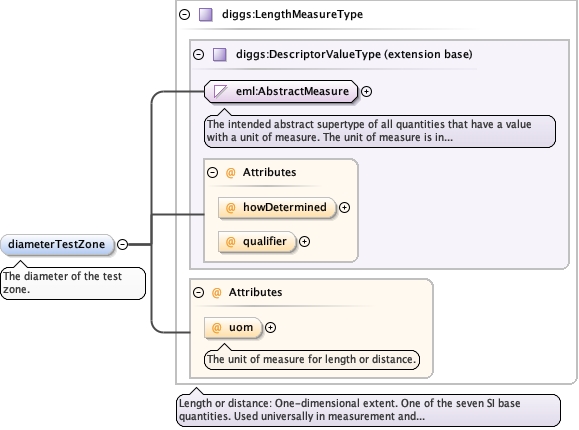

Element diggs:InsituPermeabilityTestType / diggs:diameterTestZone
Namespace http://diggsml.org/schemas/3
Annotations

The diameter of the test zone.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="diameterTestZone" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The diameter of the test zone.</documentation>
  </annotation>
</element>

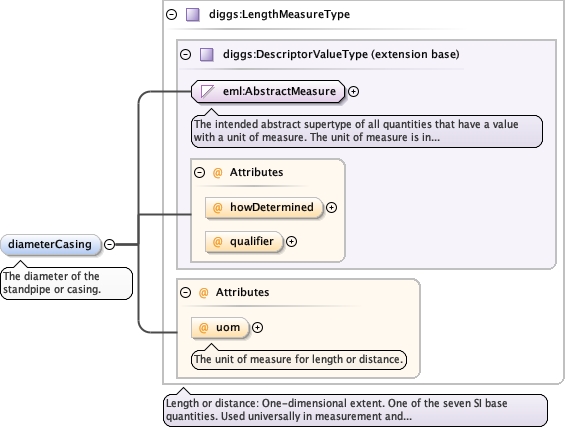

Element diggs:InsituPermeabilityTestType / diggs:diameterCasing
Namespace http://diggsml.org/schemas/3
Annotations

The diameter of the standpipe or casing.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="diameterCasing" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The diameter of the standpipe or casing.</documentation>
  </annotation>
</element>

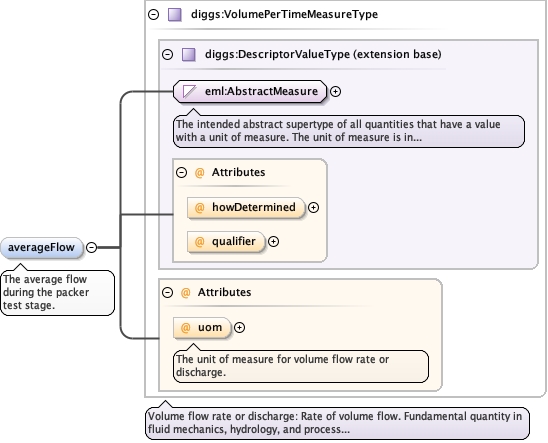

Element diggs:InsituPermeabilityTestType / diggs:averageFlow
Namespace http://diggsml.org/schemas/3
Annotations

The average flow during the packer test stage.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType
Type diggs:VolumePerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimeUomEnumType optional
The unit of measure for volume flow rate or discharge.
Source

<element name="averageFlow" type="diggs:VolumePerTimeMeasureType" minOccurs="0">
  <annotation>
    <documentation>The average flow during the packer test stage.</documentation>
  </annotation>
</element>

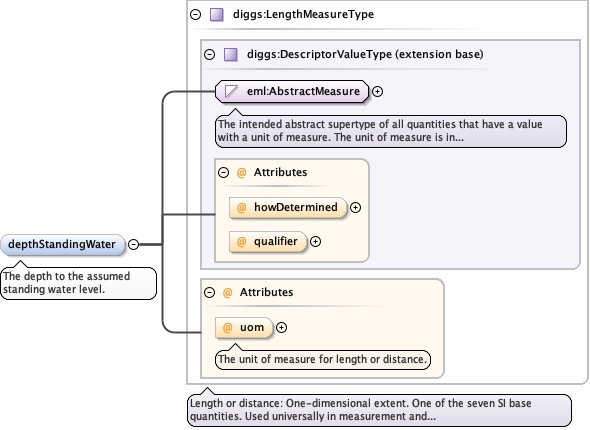

Element diggs:InsituPermeabilityTestType / diggs:depthStandingWater
Namespace http://diggsml.org/schemas/3
Annotations

The depth to the assumed standing water level.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="depthStandingWater" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The depth to the assumed standing water level.</documentation>
  </annotation>
</element>

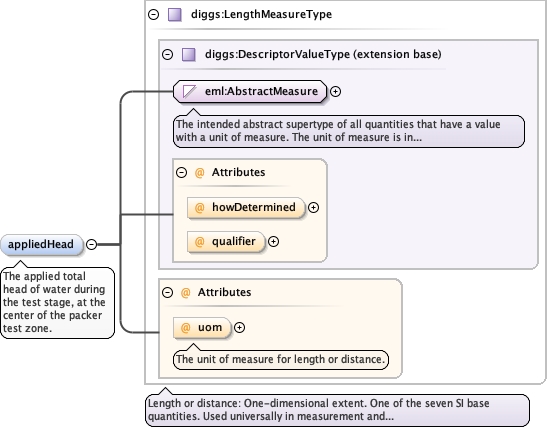

Element diggs:InsituPermeabilityTestType / diggs:appliedHead
Namespace http://diggsml.org/schemas/3
Annotations

The applied total head of water during the test stage, at the center
of the packer test zone.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="appliedHead" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The applied total head of water during the test stage, at the center of the packer test zone.</documentation>
  </annotation>
</element>

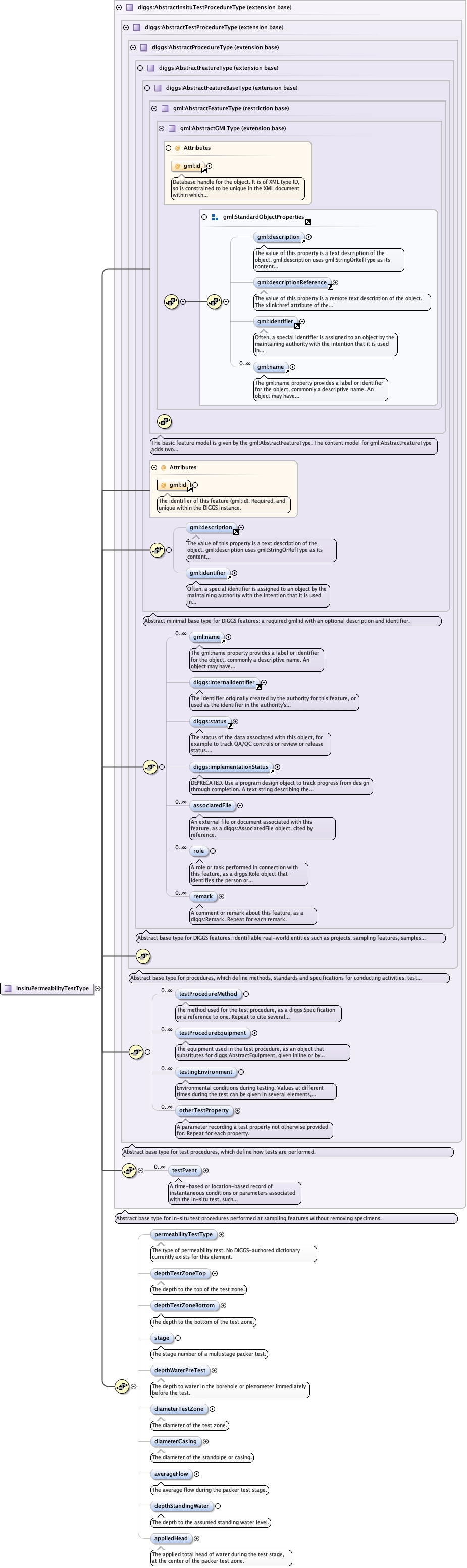

Complex Type diggs:InsituPermeabilityTestType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_permeabilityTestTypeExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_depthTestZoneTopExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_depthTestZoneBottomExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_stageExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_depthWaterPreTestExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_diameterTestZoneExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_diameterCasingExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_averageFlowExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_depthStandingWaterExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_appliedHead
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Model
Children diggs:appliedHead, diggs:associatedFile, diggs:averageFlow, diggs:depthStandingWater, diggs:depthTestZoneBottom, diggs:depthTestZoneTop, diggs:depthWaterPreTest, diggs:diameterCasing, diggs:diameterTestZone, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:permeabilityTestType, diggs:remark, diggs:role, diggs:stage, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="InsituPermeabilityTestType">
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element name="permeabilityTestType" type="gml:CodeType" default="false" minOccurs="0">
          <annotation>
            <documentation>The type of permeability test. No DIGGS-authored dictionary currently exists for this element.</documentation>
          </annotation>
        </element>
        <element name="depthTestZoneTop" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The depth to the top of the test zone.</documentation>
          </annotation>
        </element>
        <element name="depthTestZoneBottom" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The depth to the bottom of the test zone.</documentation>
          </annotation>
        </element>
        <element name="stage" type="integer" minOccurs="0">
          <annotation>
            <documentation>The stage number of a multistage packer test.</documentation>
          </annotation>
        </element>
        <element name="depthWaterPreTest" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The depth to water in the borehole or piezometer immediately before the test.</documentation>
          </annotation>
        </element>
        <element name="diameterTestZone" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The diameter of the test zone.</documentation>
          </annotation>
        </element>
        <element name="diameterCasing" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The diameter of the standpipe or casing.</documentation>
          </annotation>
        </element>
        <element name="averageFlow" type="diggs:VolumePerTimeMeasureType" minOccurs="0">
          <annotation>
            <documentation>The average flow during the packer test stage.</documentation>
          </annotation>
        </element>
        <element name="depthStandingWater" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The depth to the assumed standing water level.</documentation>
          </annotation>
        </element>
        <element name="appliedHead" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The applied total head of water during the test stage, at the center of the packer test zone.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
