Element diggs:InsituPermeabilityTest
Namespace http://diggsml.org/schemas/3
Annotations

An in-situ permeability test procedure, which determines the permeability of a soil
by constant head, falling head or packer test methods.

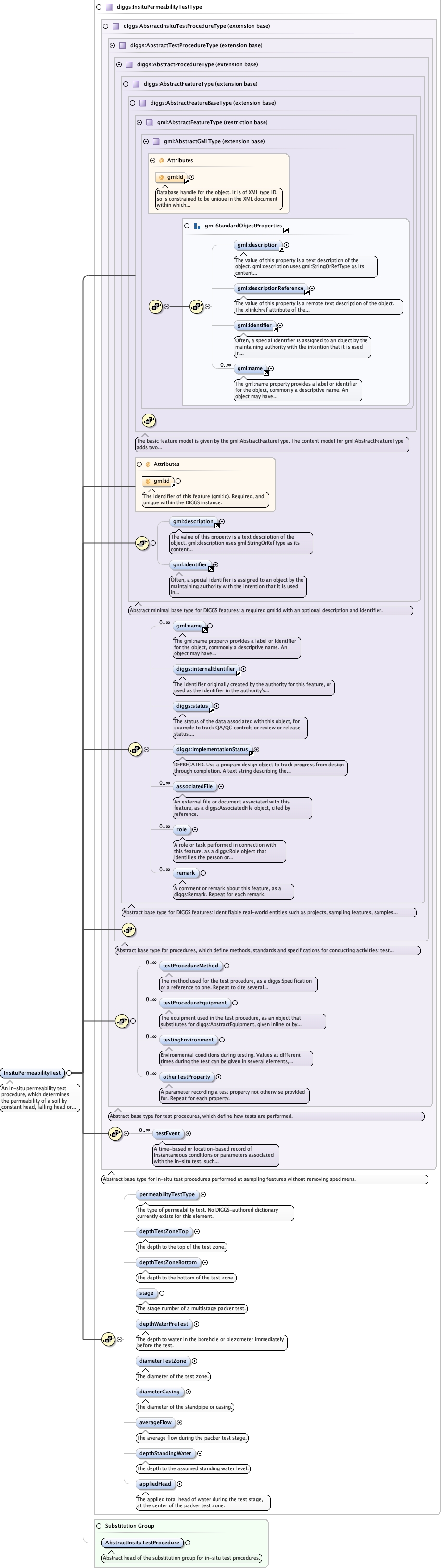

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_permeabilityTestTypeExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_depthTestZoneTopExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_depthTestZoneBottomExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_stageExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_depthWaterPreTestExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_diameterTestZoneExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_diameterCasingExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_averageFlowExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_depthStandingWaterExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestType_appliedHeadExtProcedures_xsd_Complex_Type_diggs_InsituPermeabilityTestType.tmp#InsituPermeabilityTestTypeAbstractTypes_xsd_Element_diggs_AbstractInsituTestProcedure.tmp#AbstractInsituTestProcedure
Type diggs:InsituPermeabilityTestType
Type hierarchy
Properties
content complex
abstract false
Substitution Group Affiliation
Model
Children diggs:appliedHead, diggs:associatedFile, diggs:averageFlow, diggs:depthStandingWater, diggs:depthTestZoneBottom, diggs:depthTestZoneTop, diggs:depthWaterPreTest, diggs:diameterCasing, diggs:diameterTestZone, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:permeabilityTestType, diggs:remark, diggs:role, diggs:stage, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Instance

<diggs:InsituPermeabilityTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,unbounded}</diggs:testEvent>
  <diggs:permeabilityTestType codeSpace="">{0,1}</diggs:permeabilityTestType>
  <diggs:depthTestZoneTop howDetermined="" qualifier="" uom="">{0,1}</diggs:depthTestZoneTop>
  <diggs:depthTestZoneBottom howDetermined="" qualifier="" uom="">{0,1}</diggs:depthTestZoneBottom>
  <diggs:stage>{0,1}</diggs:stage>
  <diggs:depthWaterPreTest howDetermined="" qualifier="" uom="">{0,1}</diggs:depthWaterPreTest>
  <diggs:diameterTestZone howDetermined="" qualifier="" uom="">{0,1}</diggs:diameterTestZone>
  <diggs:diameterCasing howDetermined="" qualifier="" uom="">{0,1}</diggs:diameterCasing>
  <diggs:averageFlow howDetermined="" qualifier="" uom="">{0,1}</diggs:averageFlow>
  <diggs:depthStandingWater howDetermined="" qualifier="" uom="">{0,1}</diggs:depthStandingWater>
  <diggs:appliedHead howDetermined="" qualifier="" uom="">{0,1}</diggs:appliedHead>
</diggs:InsituPermeabilityTest>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="InsituPermeabilityTest" type="diggs:InsituPermeabilityTestType" abstract="false" substitutionGroup="diggs:AbstractInsituTestProcedure">
  <annotation>
    <documentation>An in-situ permeability test procedure, which determines the permeability of a soil by constant head, falling head or packer test methods.</documentation>
  </annotation>
</element>
