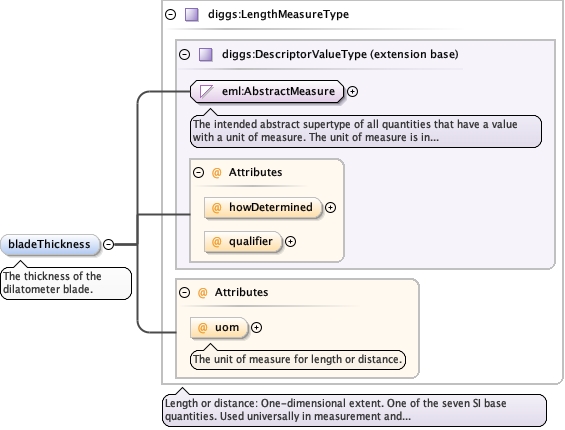

Element diggs:FlatPlateDilatometerTestType / diggs:bladeThickness
Namespace http://diggsml.org/schemas/3
Annotations

The thickness of the dilatometer blade.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="bladeThickness" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The thickness of the dilatometer blade.</documentation>
  </annotation>
</element>

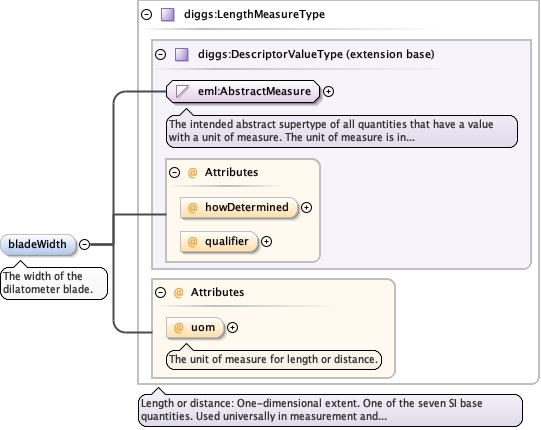

Element diggs:FlatPlateDilatometerTestType / diggs:bladeWidth
Namespace http://diggsml.org/schemas/3
Annotations

The width of the dilatometer blade.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="bladeWidth" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The width of the dilatometer blade.</documentation>
  </annotation>
</element>

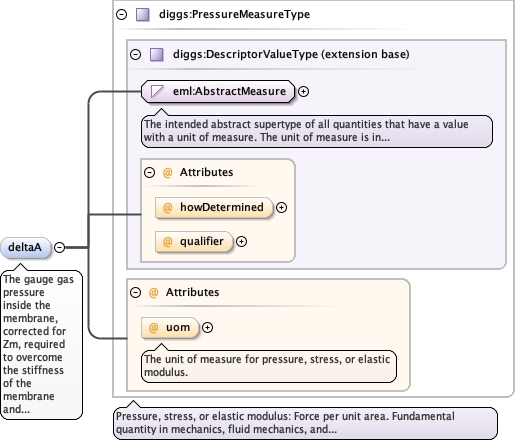

Element diggs:FlatPlateDilatometerTestType / diggs:deltaA
Namespace http://diggsml.org/schemas/3
Annotations

The gauge gas pressure inside the membrane, corrected for Zm,
required to overcome the stiffness of the membrane and move it
inward to a center-expansion of 0.05 mm with only ambient
atmospheric pressure acting externally (a negative gauge or suction
pressure, recorded as positive).
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="deltaA" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>The gauge gas pressure inside the membrane, corrected for Zm, required to overcome the stiffness of the membrane and move it inward to a center-expansion of 0.05 mm with only ambient atmospheric pressure acting externally (a negative gauge or suction pressure, recorded as positive).</documentation>
  </annotation>
</element>
Element diggs:FlatPlateDilatometerTestType / diggs:deltaB
Namespace http://diggsml.org/schemas/3
Annotations

The gauge gas pressure inside the membrane, corrected for Zm,
required to overcome the stiffness of the membrane and move it
outward to a center-expansion of 1.10 mm against only the ambient
atmospheric pressure.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="deltaB" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>The gauge gas pressure inside the membrane, corrected for Zm, required to overcome the stiffness of the membrane and move it outward to a center-expansion of 1.10 mm against only the ambient atmospheric pressure.</documentation>
  </annotation>
</element>

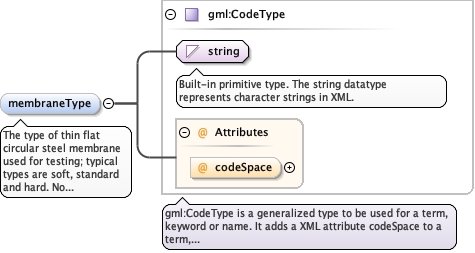

Element diggs:FlatPlateDilatometerTestType / diggs:membraneType
Namespace http://diggsml.org/schemas/3
Annotations

The type of thin flat circular steel membrane used for testing;
typical types are soft, standard and hard. No DIGGS-authored
dictionary currently exists for this element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="membraneType" type="gml:CodeType">
  <annotation>
    <documentation>The type of thin flat circular steel membrane used for testing; typical types are soft, standard and hard. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>

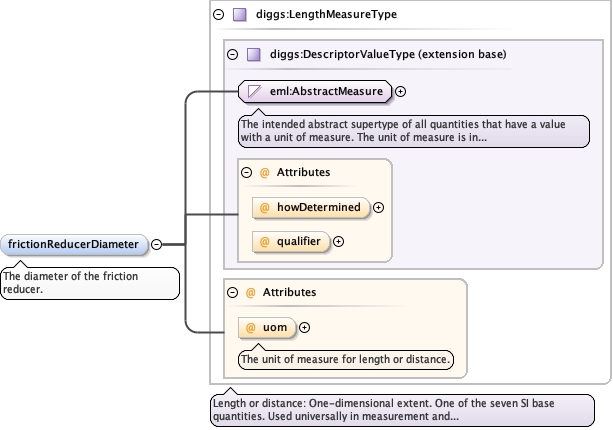

Element diggs:FlatPlateDilatometerTestType / diggs:frictionReducerDiameter
Namespace http://diggsml.org/schemas/3
Annotations

The diameter of the friction reducer.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="frictionReducerDiameter" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The diameter of the friction reducer.</documentation>
  </annotation>
</element>

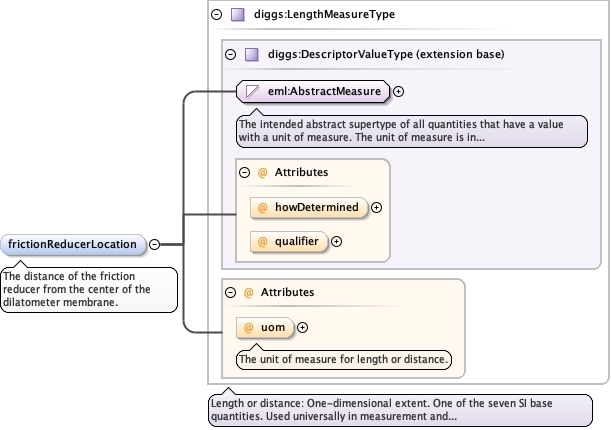

Element diggs:FlatPlateDilatometerTestType / diggs:frictionReducerLocation
Namespace http://diggsml.org/schemas/3
Annotations

The distance of the friction reducer from the center of the
dilatometer membrane.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="frictionReducerLocation" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The distance of the friction reducer from the center of the dilatometer membrane.</documentation>
  </annotation>
</element>

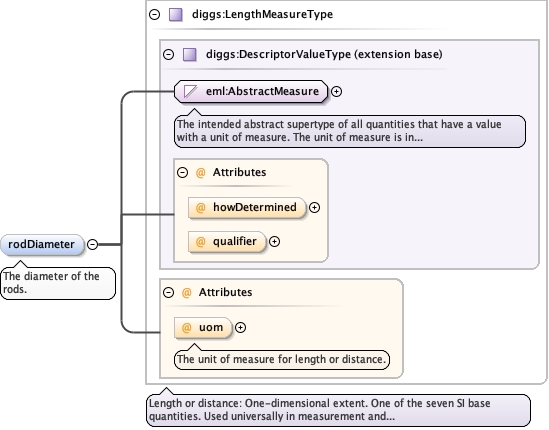

Element diggs:FlatPlateDilatometerTestType / diggs:rodDiameter
Namespace http://diggsml.org/schemas/3
Annotations

The diameter of the rods.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="rodDiameter" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The diameter of the rods.</documentation>
  </annotation>
</element>

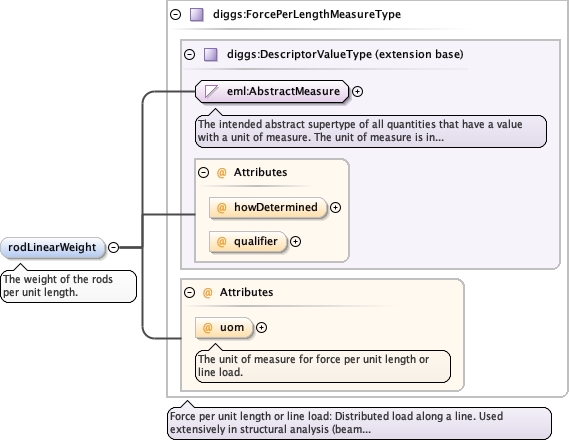

Element diggs:FlatPlateDilatometerTestType / diggs:rodLinearWeight
Namespace http://diggsml.org/schemas/3
Annotations

The weight of the rods per unit length.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerLengthMeasureType.tmp#ForcePerLengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerLengthMeasureType.tmp#ForcePerLengthMeasureType
Type diggs:ForcePerLengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerLengthUomEnumType optional
The unit of measure for force per unit length or line load.
Source

<element minOccurs="0" name="rodLinearWeight" type="diggs:ForcePerLengthMeasureType">
  <annotation>
    <documentation>The weight of the rods per unit length.</documentation>
  </annotation>
</element>

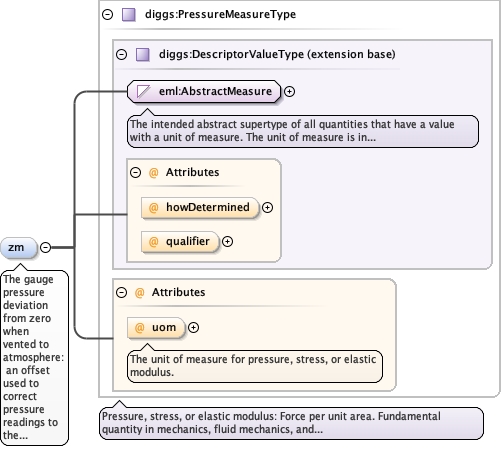

Element diggs:FlatPlateDilatometerTestType / diggs:zm
Namespace http://diggsml.org/schemas/3
Annotations

The gauge pressure deviation from zero when vented to atmosphere: an
offset used to correct pressure readings to the true gauge pressure.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="zm" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>The gauge pressure deviation from zero when vented to atmosphere: an offset used to correct pressure readings to the true gauge pressure.</documentation>
  </annotation>
</element>

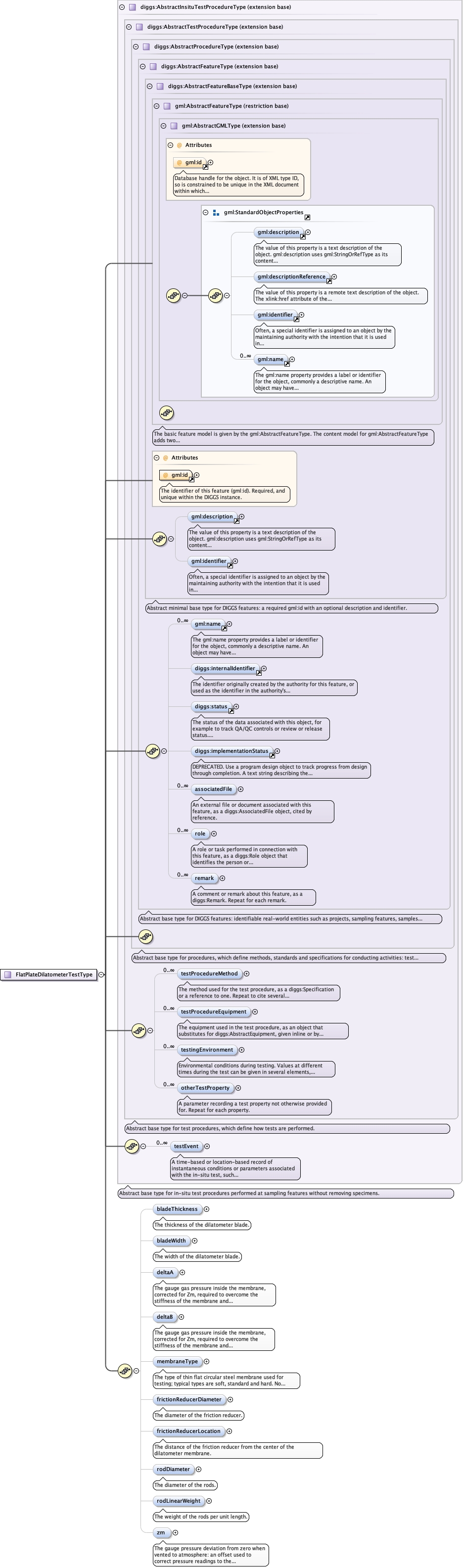

Complex Type diggs:FlatPlateDilatometerTestType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#FlatPlateDilatometerTestType_bladeThicknessExtProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#FlatPlateDilatometerTestType_bladeWidthExtProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#FlatPlateDilatometerTestType_deltaAExtProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#FlatPlateDilatometerTestType_deltaBExtProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#FlatPlateDilatometerTestType_membraneTypeExtProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#FlatPlateDilatometerTestType_frictionReducerDiameterExtProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#FlatPlateDilatometerTestType_frictionReducerLocationExtProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#FlatPlateDilatometerTestType_rodDiameterExtProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#FlatPlateDilatometerTestType_rodLinearWeightExtProcedures_xsd_Complex_Type_diggs_FlatPlateDilatometerTestType.tmp#FlatPlateDilatometerTestType_zm
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:bladeThickness, diggs:bladeWidth, diggs:deltaA, diggs:deltaB, diggs:frictionReducerDiameter, diggs:frictionReducerLocation, diggs:implementationStatus, diggs:internalIdentifier, diggs:membraneType, diggs:otherTestProperty, diggs:remark, diggs:rodDiameter, diggs:rodLinearWeight, diggs:role, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs:zm, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="FlatPlateDilatometerTestType">
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element minOccurs="0" name="bladeThickness" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The thickness of the dilatometer blade.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="bladeWidth" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The width of the dilatometer blade.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="deltaA" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>The gauge gas pressure inside the membrane, corrected for Zm, required to overcome the stiffness of the membrane and move it inward to a center-expansion of 0.05 mm with only ambient atmospheric pressure acting externally (a negative gauge or suction pressure, recorded as positive).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="deltaB" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>The gauge gas pressure inside the membrane, corrected for Zm, required to overcome the stiffness of the membrane and move it outward to a center-expansion of 1.10 mm against only the ambient atmospheric pressure.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="membraneType" type="gml:CodeType">
          <annotation>
            <documentation>The type of thin flat circular steel membrane used for testing; typical types are soft, standard and hard. No DIGGS-authored dictionary currently exists for this element.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="frictionReducerDiameter" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The diameter of the friction reducer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="frictionReducerLocation" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The distance of the friction reducer from the center of the dilatometer membrane.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="rodDiameter" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The diameter of the rods.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="rodLinearWeight" type="diggs:ForcePerLengthMeasureType">
          <annotation>
            <documentation>The weight of the rods per unit length.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="zm" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>The gauge pressure deviation from zero when vented to atmosphere: an offset used to correct pressure readings to the true gauge pressure.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
