Schema documentation for component diggs:FlatPlateDilatometerTest

A flat plate dilatometer test procedure. The blade is forced into the soil, membrane facing horizontally, to the test depth and the thrust needed is measured; gas pressure then expands a circular steel membrane on one side of the blade, and the pressures required to move the membrane to two preset deflections (optionally a third) are recorded. The membrane is deflated, the blade is advanced by the penetration increment, and the test is repeated.

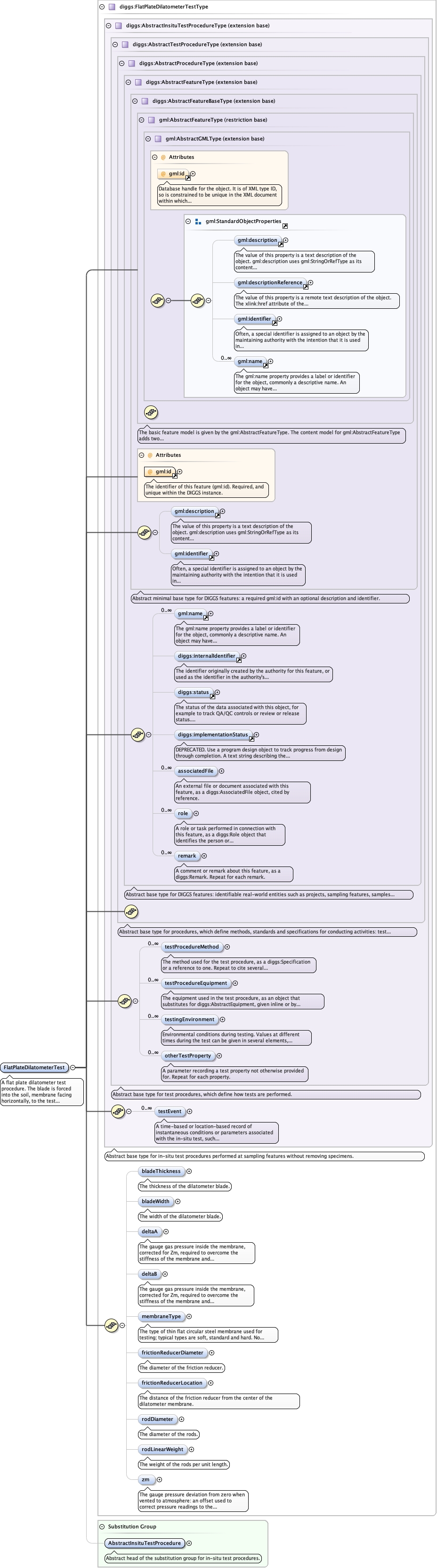

<diggs:FlatPlateDilatometerTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,unbounded}</diggs:testEvent>
  <diggs:bladeThickness howDetermined="" qualifier="" uom="">{0,1}</diggs:bladeThickness>
  <diggs:bladeWidth howDetermined="" qualifier="" uom="">{0,1}</diggs:bladeWidth>
  <diggs:deltaA howDetermined="" qualifier="" uom="">{0,1}</diggs:deltaA>
  <diggs:deltaB howDetermined="" qualifier="" uom="">{0,1}</diggs:deltaB>
  <diggs:membraneType codeSpace="">{0,1}</diggs:membraneType>
  <diggs:frictionReducerDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:frictionReducerDiameter>
  <diggs:frictionReducerLocation howDetermined="" qualifier="" uom="">{0,1}</diggs:frictionReducerLocation>
  <diggs:rodDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:rodDiameter>
  <diggs:rodLinearWeight howDetermined="" qualifier="" uom="">{0,1}</diggs:rodLinearWeight>
  <diggs:zm howDetermined="" qualifier="" uom="">{0,1}</diggs:zm>
</diggs:FlatPlateDilatometerTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="FlatPlateDilatometerTest" type="diggs:FlatPlateDilatometerTestType" substitutionGroup="diggs:AbstractInsituTestProcedure"> <annotation> <documentation>A flat plate dilatometer test procedure. The blade is forced into the soil, membrane facing horizontally, to the test depth and the thrust needed is measured; gas pressure then expands a circular steel membrane on one side of the blade, and the pressures required to move the membrane to two preset deflections (optionally a third) are recorded. The membrane is deflated, the blade is advanced by the penetration increment, and the test is repeated.</documentation> </annotation> </element>
