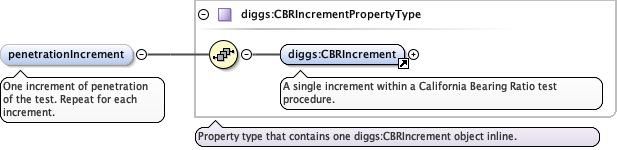

Element diggs:InsituCBRTestType / diggs:penetrationIncrement
Namespace http://diggsml.org/schemas/3
Annotations

One increment of penetration of the test. Repeat for each increment.
Diagram
DiagramCoreProcedures_xsd_Element_diggs_CBRIncrement.tmp#CBRIncrementCoreProcedures_xsd_Complex_Type_diggs_CBRIncrementPropertyType.tmp#CBRIncrementPropertyType
Type diggs:CBRIncrementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:CBRIncrement
Instance

<diggs:penetrationIncrement xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:CBRIncrement gml:id="">{1,1}</diggs:CBRIncrement>
</diggs:penetrationIncrement>
Source

<element minOccurs="0" name="penetrationIncrement" type="diggs:CBRIncrementPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>One increment of penetration of the test. Repeat for each increment.</documentation>
  </annotation>
</element>

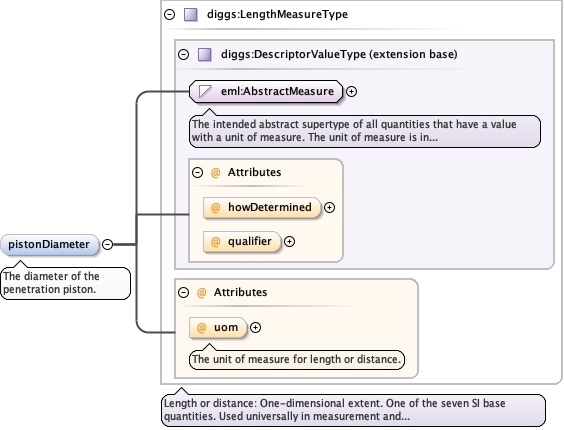

Element diggs:InsituCBRTestType / diggs:pistonDiameter
Namespace http://diggsml.org/schemas/3
Annotations

The diameter of the penetration piston.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="pistonDiameter" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The diameter of the penetration piston.</documentation>
  </annotation>
</element>
Element diggs:InsituCBRTestType / diggs:reactionLoadDescription
Namespace http://diggsml.org/schemas/3
Annotations

A description of the weight used for the reaction load.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="reactionLoadDescription" type="string">
  <annotation>
    <documentation>A description of the weight used for the reaction load.</documentation>
  </annotation>
</element>

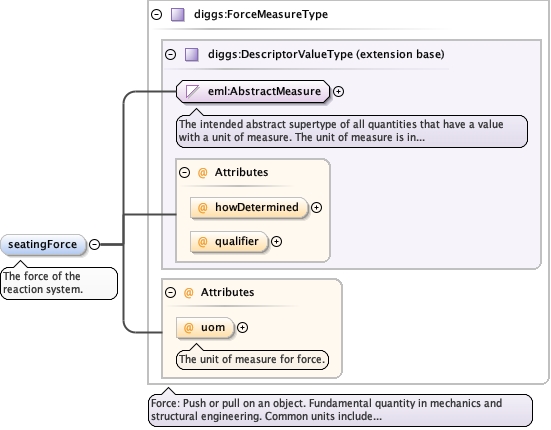

Element diggs:InsituCBRTestType / diggs:seatingForce
Namespace http://diggsml.org/schemas/3
Annotations

The force of the reaction system.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Source

<element name="seatingForce" type="diggs:ForceMeasureType" minOccurs="0">
  <annotation>
    <documentation>The force of the reaction system.</documentation>
  </annotation>
</element>

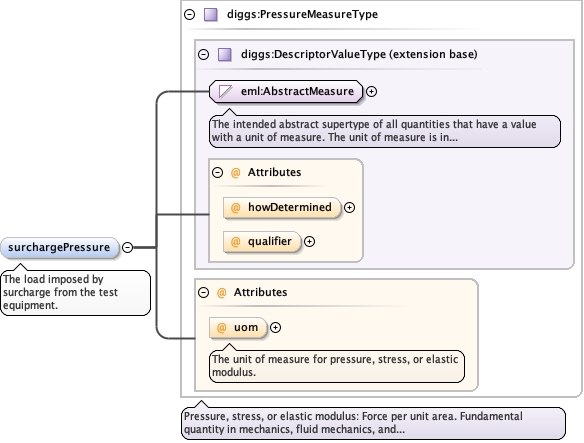

Element diggs:InsituCBRTestType / diggs:surchargePressure
Namespace http://diggsml.org/schemas/3
Annotations

The load imposed by surcharge from the test equipment.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element name="surchargePressure" type="diggs:PressureMeasureType" minOccurs="0">
  <annotation>
    <documentation>The load imposed by surcharge from the test equipment.</documentation>
  </annotation>
</element>

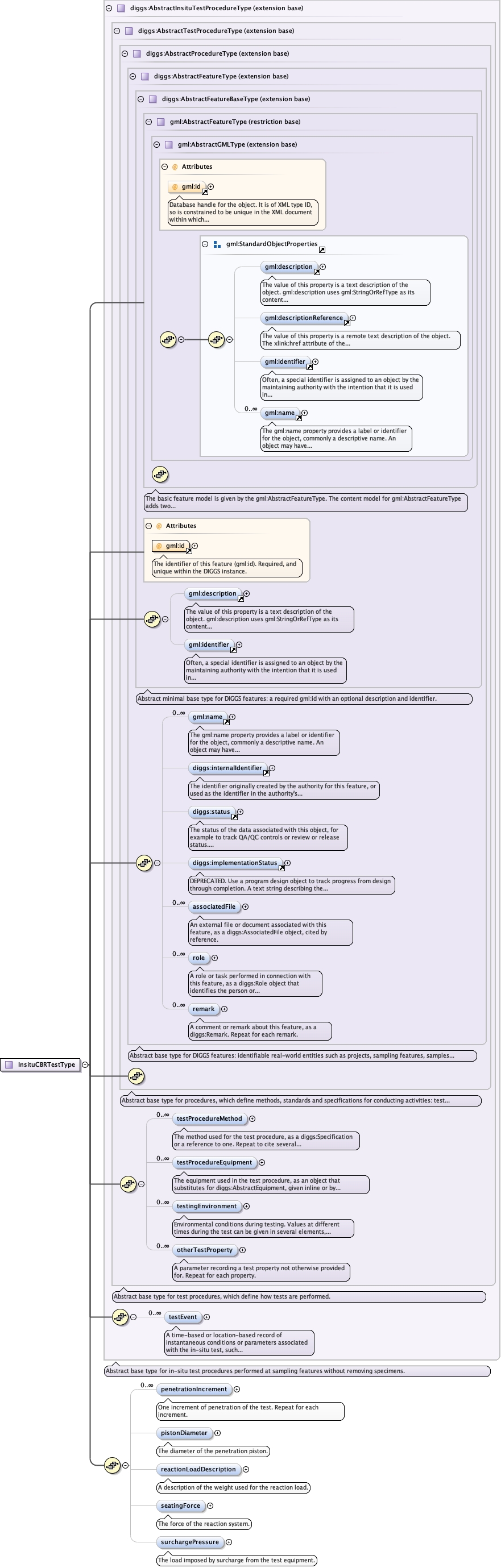

Complex Type diggs:InsituCBRTestType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_InsituCBRTestType.tmp#InsituCBRTestType_penetrationIncrementExtProcedures_xsd_Complex_Type_diggs_InsituCBRTestType.tmp#InsituCBRTestType_pistonDiameterExtProcedures_xsd_Complex_Type_diggs_InsituCBRTestType.tmp#InsituCBRTestType_reactionLoadDescriptionExtProcedures_xsd_Complex_Type_diggs_InsituCBRTestType.tmp#InsituCBRTestType_seatingForceExtProcedures_xsd_Complex_Type_diggs_InsituCBRTestType.tmp#InsituCBRTestType_surchargePressure
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:penetrationIncrement, diggs:pistonDiameter, diggs:reactionLoadDescription, diggs:remark, diggs:role, diggs:seatingForce, diggs:status, diggs:surchargePressure, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="InsituCBRTestType">
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element minOccurs="0" name="penetrationIncrement" type="diggs:CBRIncrementPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>One increment of penetration of the test. Repeat for each increment.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pistonDiameter" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The diameter of the penetration piston.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="reactionLoadDescription" type="string">
          <annotation>
            <documentation>A description of the weight used for the reaction load.</documentation>
          </annotation>
        </element>
        <element name="seatingForce" type="diggs:ForceMeasureType" minOccurs="0">
          <annotation>
            <documentation>The force of the reaction system.</documentation>
          </annotation>
        </element>
        <element name="surchargePressure" type="diggs:PressureMeasureType" minOccurs="0">
          <annotation>
            <documentation>The load imposed by surcharge from the test equipment.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
