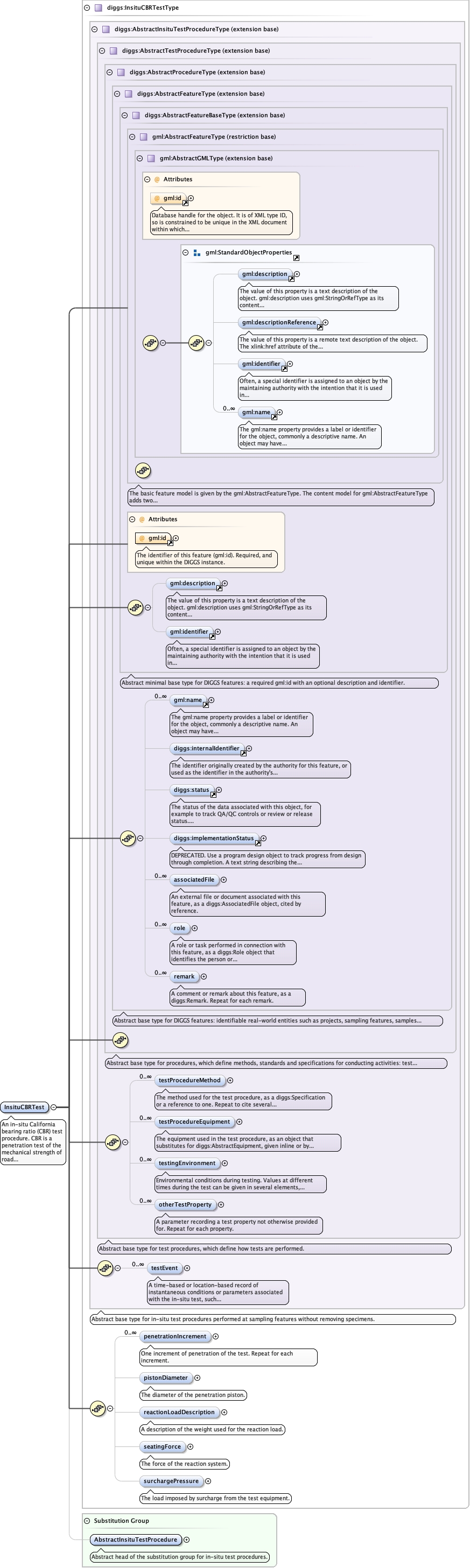

Schema documentation for component diggs:InsituCBRTest

An in-situ California bearing ratio (CBR) test procedure. CBR is a penetration test of the mechanical strength of road subgrades and basecourses: the pressure needed to penetrate the soil with a plunger of standard area is divided by the pressure needed for an equal penetration of a standard crushed rock.

<diggs:InsituCBRTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,unbounded}</diggs:testEvent>
  <diggs:penetrationIncrement>{0,unbounded}</diggs:penetrationIncrement>
  <diggs:pistonDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:pistonDiameter>
  <diggs:reactionLoadDescription>{0,1}</diggs:reactionLoadDescription>
  <diggs:seatingForce howDetermined="" qualifier="" uom="">{0,1}</diggs:seatingForce>
  <diggs:surchargePressure howDetermined="" qualifier="" uom="">{0,1}</diggs:surchargePressure>
</diggs:InsituCBRTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="InsituCBRTest" type="diggs:InsituCBRTestType" abstract="false" substitutionGroup="diggs:AbstractInsituTestProcedure"> <annotation> <documentation>An in-situ California bearing ratio (CBR) test procedure. CBR is a penetration test of the mechanical strength of road subgrades and basecourses: the pressure needed to penetrate the soil with a plunger of standard area is divided by the pressure needed for an equal penetration of a standard crushed rock.</documentation> </annotation> </element>
