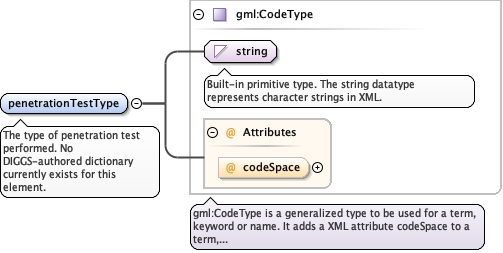

Element diggs:DynamicProbeTestType / diggs:penetrationTestType
Namespace http://diggsml.org/schemas/3
Annotations

The type of penetration test performed. No DIGGS-authored dictionary
currently exists for this element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="penetrationTestType" type="gml:CodeType">
  <annotation>
    <documentation>The type of penetration test performed. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>

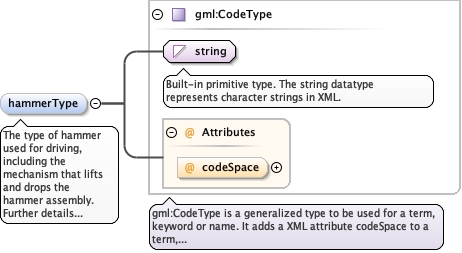

Element diggs:DynamicProbeTestType / diggs:hammerType
Namespace http://diggsml.org/schemas/3
Annotations

The type of hammer used for driving, including the mechanism that
lifts and drops the hammer assembly. Further details of the sampler,
such as cathead diameter or number of turns, belong to the equipment
object. No DIGGS-authored dictionary currently exists for this
element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="hammerType" type="gml:CodeType" minOccurs="0">
  <annotation>
    <documentation>The type of hammer used for driving, including the mechanism that lifts and drops the hammer assembly. Further details of the sampler, such as cathead diameter or number of turns, belong to the equipment object. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>

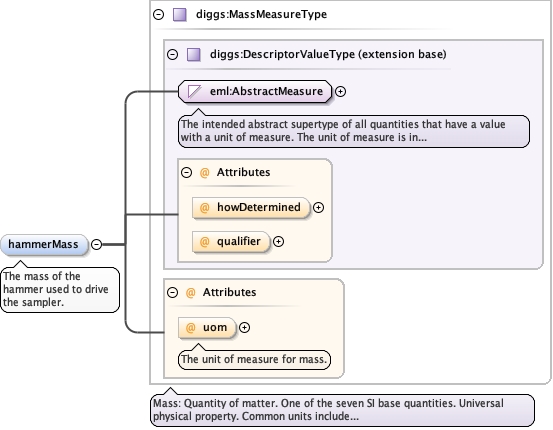

Element diggs:DynamicProbeTestType / diggs:hammerMass
Namespace http://diggsml.org/schemas/3
Annotations

The mass of the hammer used to drive the sampler.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MassMeasureType.tmp#MassMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_MassMeasureType.tmp#MassMeasureType
Type diggs:MassMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MassUomEnumType optional
The unit of measure for mass.
Source

<element name="hammerMass" type="diggs:MassMeasureType" minOccurs="0">
  <annotation>
    <documentation>The mass of the hammer used to drive the sampler.</documentation>
  </annotation>
</element>

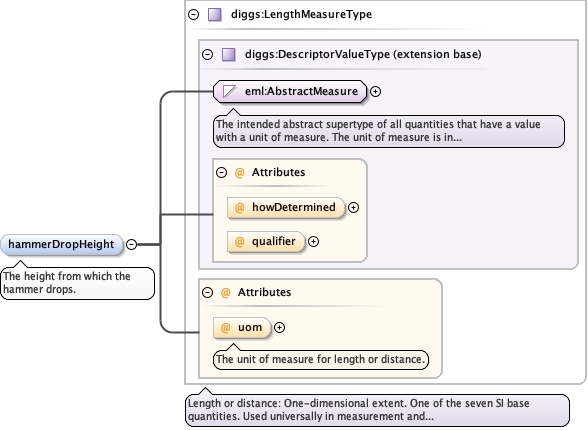

Element diggs:DynamicProbeTestType / diggs:hammerDropHeight
Namespace http://diggsml.org/schemas/3
Annotations

The height from which the hammer drops.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="hammerDropHeight" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The height from which the hammer drops.</documentation>
  </annotation>
</element>

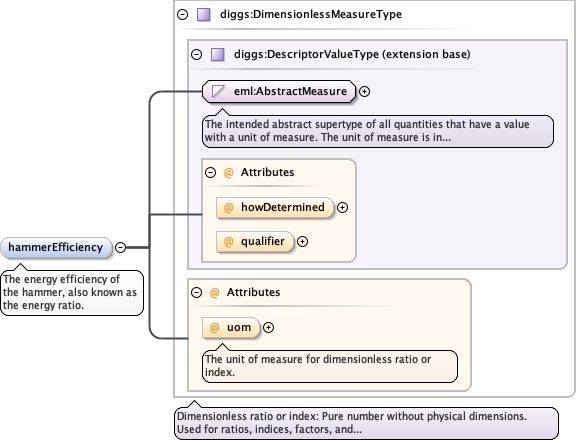

Element diggs:DynamicProbeTestType / diggs:hammerEfficiency
Namespace http://diggsml.org/schemas/3
Annotations

The energy efficiency of the hammer, also known as the energy ratio.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DimensionlessMeasureType.tmp#DimensionlessMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DimensionlessMeasureType.tmp#DimensionlessMeasureType
Type diggs:DimensionlessMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DimensionlessUomEnumType optional
The unit of measure for dimensionless ratio or index.
Source

<element name="hammerEfficiency" type="diggs:DimensionlessMeasureType" minOccurs="0">
  <annotation>
    <documentation>The energy efficiency of the hammer, also known as the energy ratio.</documentation>
  </annotation>
</element>
Element diggs:DynamicProbeTestType / diggs:samplerLength
Namespace http://diggsml.org/schemas/3
Annotations

The length of the sampler barrel.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="samplerLength" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The length of the sampler barrel.</documentation>
  </annotation>
</element>

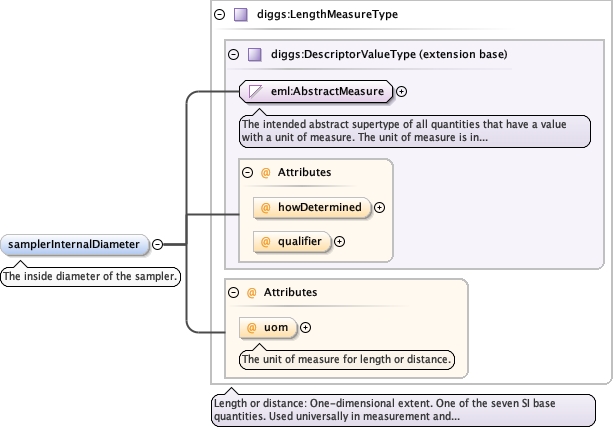

Element diggs:DynamicProbeTestType / diggs:samplerInternalDiameter
Namespace http://diggsml.org/schemas/3
Annotations

The inside diameter of the sampler.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="samplerInternalDiameter" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The inside diameter of the sampler.</documentation>
  </annotation>
</element>
Element diggs:DynamicProbeTestType / diggs:samplerLinerDescription
Namespace http://diggsml.org/schemas/3
Annotations

A description of the sampler liner, if one is used.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element name="samplerLinerDescription" type="string" minOccurs="0">
  <annotation>
    <documentation>A description of the sampler liner, if one is used.</documentation>
  </annotation>
</element>
Element diggs:DynamicProbeTestType / diggs:samplerRetainerDescription
Namespace http://diggsml.org/schemas/3
Annotations

A description of the basket retainer, if one is used.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element name="samplerRetainerDescription" type="string" minOccurs="0">
  <annotation>
    <documentation>A description of the basket retainer, if one is used.</documentation>
  </annotation>
</element>

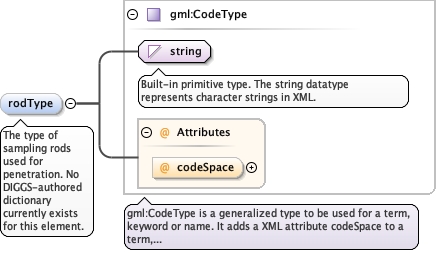

Element diggs:DynamicProbeTestType / diggs:rodType
Namespace http://diggsml.org/schemas/3
Annotations

The type of sampling rods used for penetration. No DIGGS-authored
dictionary currently exists for this element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="rodType" type="gml:CodeType" minOccurs="0">
  <annotation>
    <documentation>The type of sampling rods used for penetration. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>

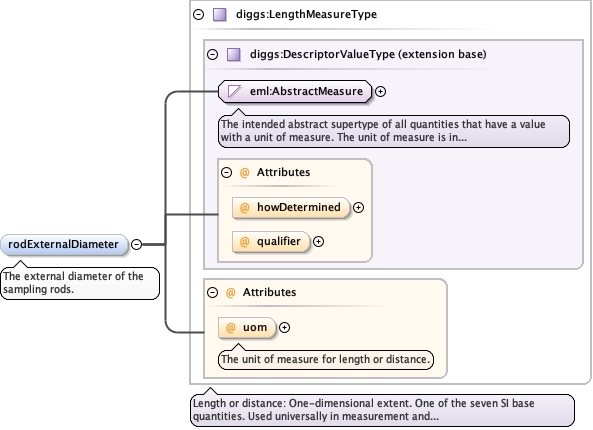

Element diggs:DynamicProbeTestType / diggs:rodExternalDiameter
Namespace http://diggsml.org/schemas/3
Annotations

The external diameter of the sampling rods.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="rodExternalDiameter" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The external diameter of the sampling rods.</documentation>
  </annotation>
</element>

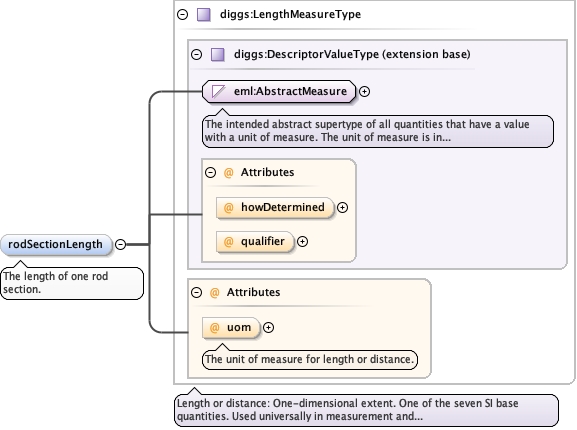

Element diggs:DynamicProbeTestType / diggs:rodSectionLength
Namespace http://diggsml.org/schemas/3
Annotations

The length of one rod section.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="rodSectionLength" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The length of one rod section.</documentation>
  </annotation>
</element>

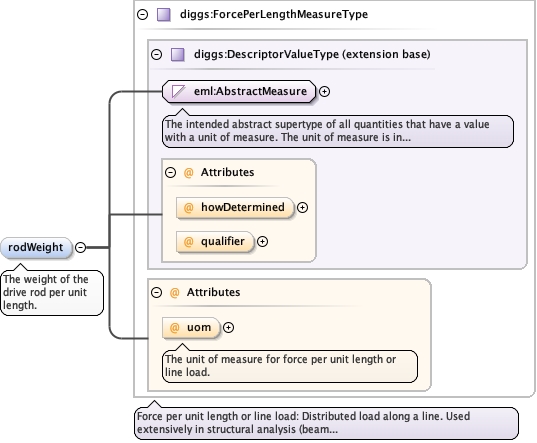

Element diggs:DynamicProbeTestType / diggs:rodWeight
Namespace http://diggsml.org/schemas/3
Annotations

The weight of the drive rod per unit length.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerLengthMeasureType.tmp#ForcePerLengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerLengthMeasureType.tmp#ForcePerLengthMeasureType
Type diggs:ForcePerLengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerLengthUomEnumType optional
The unit of measure for force per unit length or line load.
Source

<element name="rodWeight" type="diggs:ForcePerLengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The weight of the drive rod per unit length.</documentation>
  </annotation>
</element>

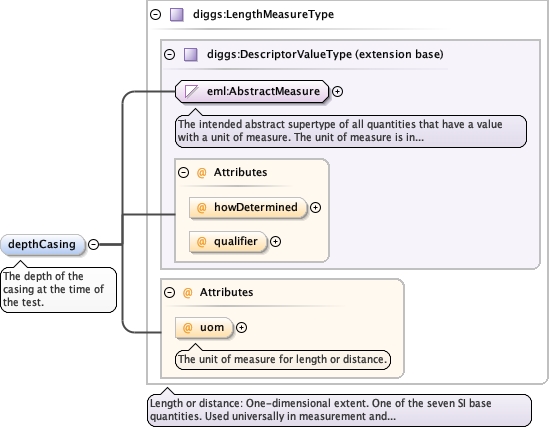

Element diggs:DynamicProbeTestType / diggs:depthCasing
Namespace http://diggsml.org/schemas/3
Annotations

The depth of the casing at the time of the test.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="depthCasing" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The depth of the casing at the time of the test.</documentation>
  </annotation>
</element>

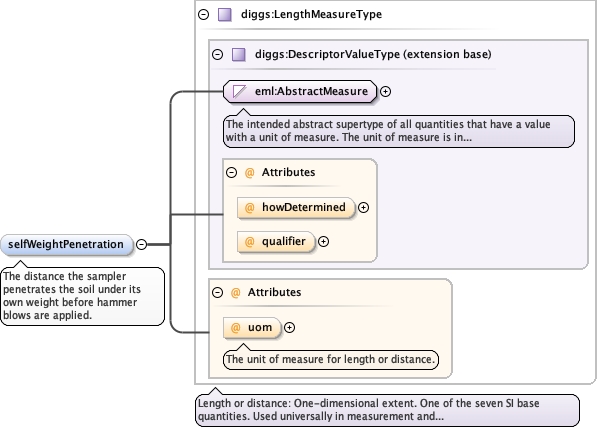

Element diggs:DynamicProbeTestType / diggs:selfWeightPenetration
Namespace http://diggsml.org/schemas/3
Annotations

The distance the sampler penetrates the soil under its own weight
before hammer blows are applied.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="selfWeightPenetration" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The distance the sampler penetrates the soil under its own weight before hammer blows are applied.</documentation>
  </annotation>
</element>

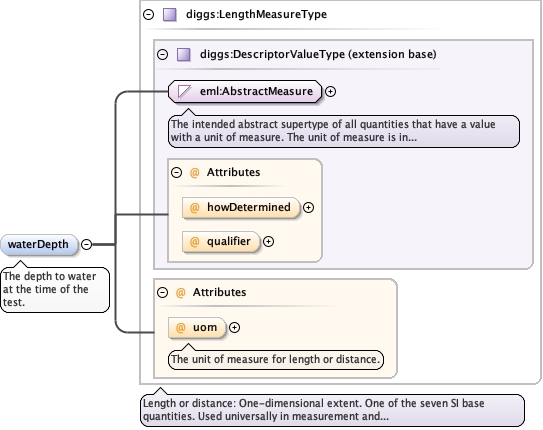

Element diggs:DynamicProbeTestType / diggs:waterDepth
Namespace http://diggsml.org/schemas/3
Annotations

The depth to water at the time of the test.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="waterDepth" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The depth to water at the time of the test.</documentation>
  </annotation>
</element>
Element diggs:DynamicProbeTestType / diggs:totalPenetration
Namespace http://diggsml.org/schemas/3
Annotations

The total distance the sampler penetrated the soil by the end of the
procedure.

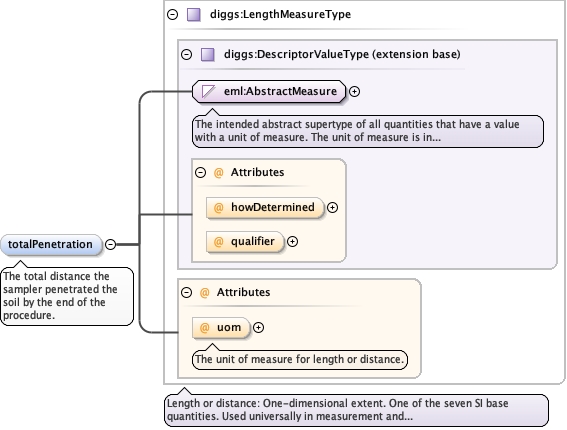

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="totalPenetration" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The total distance the sampler penetrated the soil by the end of the procedure.</documentation>
  </annotation>
</element>
Complex Type diggs:DynamicProbeTestType
Namespace http://diggsml.org/schemas/3

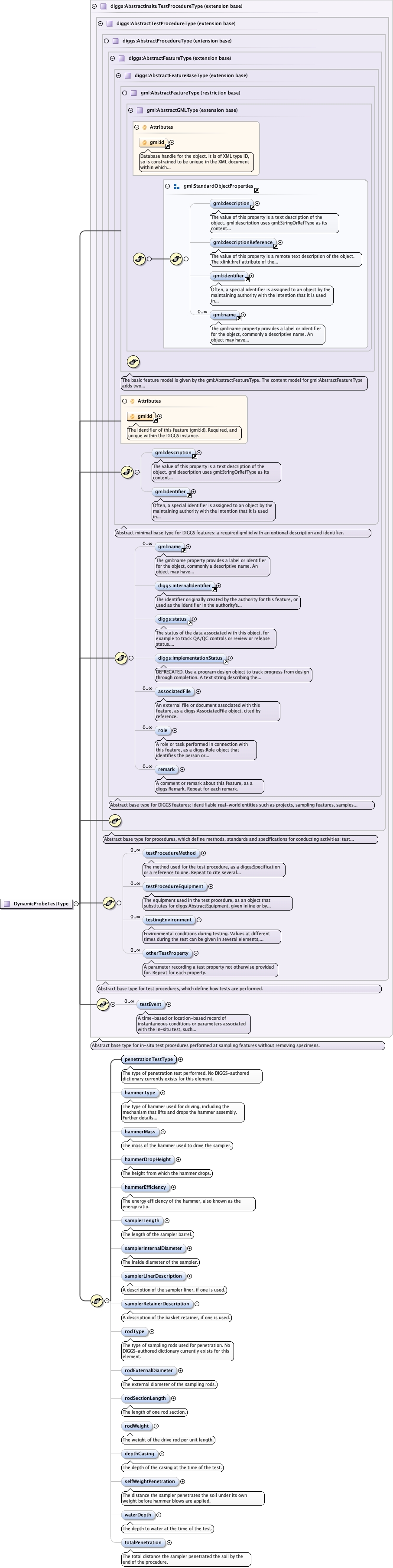

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_penetrationTestTypeExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_hammerTypeExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_hammerMassExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_hammerDropHeightExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_hammerEfficiencyExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_samplerLengthExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_samplerInternalDiameterExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_samplerLinerDescriptionExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_samplerRetainerDescriptionExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_rodTypeExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_rodExternalDiameterExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_rodSectionLengthExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_rodWeightExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_depthCasingExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_selfWeightPenetrationExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_waterDepthExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_totalPenetration
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:depthCasing, diggs:hammerDropHeight, diggs:hammerEfficiency, diggs:hammerMass, diggs:hammerType, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:penetrationTestType, diggs:remark, diggs:rodExternalDiameter, diggs:rodSectionLength, diggs:rodType, diggs:rodWeight, diggs:role, diggs:samplerInternalDiameter, diggs:samplerLength, diggs:samplerLinerDescription, diggs:samplerRetainerDescription, diggs:selfWeightPenetration, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs:totalPenetration, diggs:waterDepth, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="DynamicProbeTestType">
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element name="penetrationTestType" type="gml:CodeType">
          <annotation>
            <documentation>The type of penetration test performed. No DIGGS-authored dictionary currently exists for this element.</documentation>
          </annotation>
        </element>
        <element name="hammerType" type="gml:CodeType" minOccurs="0">
          <annotation>
            <documentation>The type of hammer used for driving, including the mechanism that lifts and drops the hammer assembly. Further details of the sampler, such as cathead diameter or number of turns, belong to the equipment object. No DIGGS-authored dictionary currently exists for this element.</documentation>
          </annotation>
        </element>
        <element name="hammerMass" type="diggs:MassMeasureType" minOccurs="0">
          <annotation>
            <documentation>The mass of the hammer used to drive the sampler.</documentation>
          </annotation>
        </element>
        <element name="hammerDropHeight" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The height from which the hammer drops.</documentation>
          </annotation>
        </element>
        <element name="hammerEfficiency" type="diggs:DimensionlessMeasureType" minOccurs="0">
          <annotation>
            <documentation>The energy efficiency of the hammer, also known as the energy ratio.</documentation>
          </annotation>
        </element>
        <element name="samplerLength" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The length of the sampler barrel.</documentation>
          </annotation>
        </element>
        <element name="samplerInternalDiameter" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The inside diameter of the sampler.</documentation>
          </annotation>
        </element>
        <element name="samplerLinerDescription" type="string" minOccurs="0">
          <annotation>
            <documentation>A description of the sampler liner, if one is used.</documentation>
          </annotation>
        </element>
        <element name="samplerRetainerDescription" type="string" minOccurs="0">
          <annotation>
            <documentation>A description of the basket retainer, if one is used.</documentation>
          </annotation>
        </element>
        <element name="rodType" type="gml:CodeType" minOccurs="0">
          <annotation>
            <documentation>The type of sampling rods used for penetration. No DIGGS-authored dictionary currently exists for this element.</documentation>
          </annotation>
        </element>
        <element name="rodExternalDiameter" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The external diameter of the sampling rods.</documentation>
          </annotation>
        </element>
        <element name="rodSectionLength" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The length of one rod section.</documentation>
          </annotation>
        </element>
        <element name="rodWeight" type="diggs:ForcePerLengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The weight of the drive rod per unit length.</documentation>
          </annotation>
        </element>
        <element name="depthCasing" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The depth of the casing at the time of the test.</documentation>
          </annotation>
        </element>
        <element name="selfWeightPenetration" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The distance the sampler penetrates the soil under its own weight before hammer blows are applied.</documentation>
          </annotation>
        </element>
        <element name="waterDepth" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The depth to water at the time of the test.</documentation>
          </annotation>
        </element>
        <element name="totalPenetration" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The total distance the sampler penetrated the soil by the end of the procedure.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
