Namespace http://diggsml.org/schemas/3
Annotations
A dynamic probe test procedure, in which a rod, with or without a sampler, is driven
by an impact hammer. The most common examples are the Standard Penetration Test and
the Becker Hammer Test.

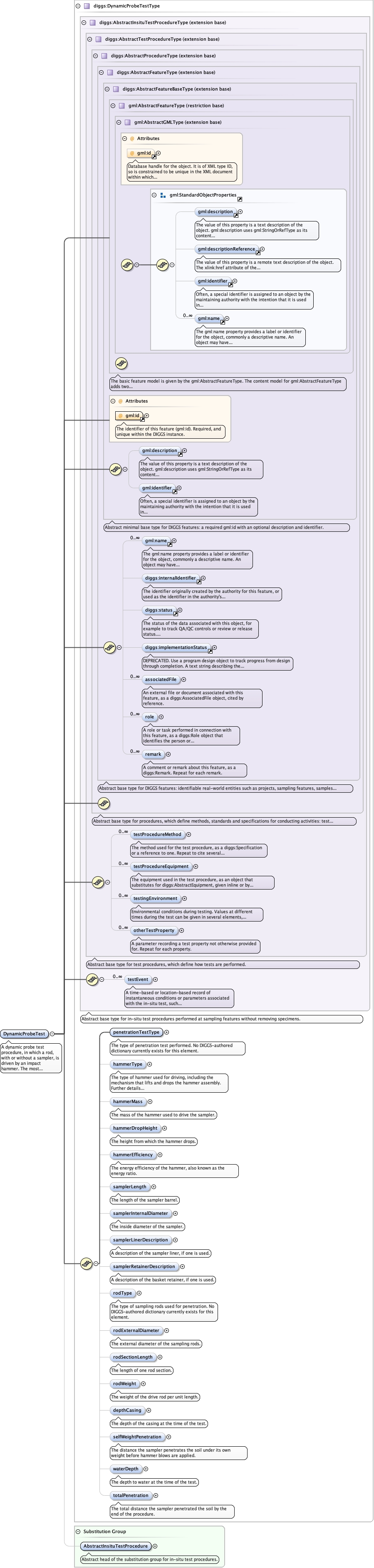

Diagram
Type diggs:DynamicProbeTestType
Type hierarchy
Properties
content
complex
abstract
false
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:testProcedureMethod* ,
diggs:testProcedureEquipment* ,
diggs:testingEnvironment* ,
diggs:otherTestProperty* ,
diggs:testEvent* ,
diggs:penetrationTestType ,
diggs:hammerType{0,1} ,
diggs:hammerMass{0,1} ,
diggs:hammerDropHeight{0,1} ,
diggs:hammerEfficiency{0,1} ,
diggs:samplerLength{0,1} ,
diggs:samplerInternalDiameter{0,1} ,
diggs:samplerLinerDescription{0,1} ,
diggs:samplerRetainerDescription{0,1} ,
diggs:rodType{0,1} ,
diggs:rodExternalDiameter{0,1} ,
diggs:rodSectionLength{0,1} ,
diggs:rodWeight{0,1} ,
diggs:depthCasing{0,1} ,
diggs:selfWeightPenetration{0,1} ,
diggs:waterDepth{0,1} ,
diggs:totalPenetration{0,1}
Children diggs:associatedFile diggs:depthCasing diggs:hammerDropHeight diggs:hammerEfficiency diggs:hammerMass diggs:hammerType diggs:implementationStatus diggs:internalIdentifier diggs:otherTestProperty diggs:penetrationTestType diggs:remark diggs:rodExternalDiameter diggs:rodSectionLength diggs:rodType diggs:rodWeight diggs:role diggs:samplerInternalDiameter diggs:samplerLength diggs:samplerLinerDescription diggs:samplerRetainerDescription diggs:selfWeightPenetration diggs:status diggs:testEvent diggs:testProcedureEquipment diggs:testProcedureMethod diggs:testingEnvironment diggs:totalPenetration diggs:waterDepth gml:description gml:identifier gml:name
Instance
<diggs:DynamicProbeTest gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:href= "" nilReason= "" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:testProcedureMethod xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:testProcedureMethod>
<diggs:testProcedureEquipment xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:testProcedureEquipment>
<diggs:testingEnvironment xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:testingEnvironment>
<diggs:otherTestProperty > {0,unbounded} </diggs:otherTestProperty>
<diggs:testEvent > {0,unbounded} </diggs:testEvent>
<diggs:penetrationTestType codeSpace= "" > {1,1} </diggs:penetrationTestType>
<diggs:hammerType codeSpace= "" > {0,1} </diggs:hammerType>
<diggs:hammerMass howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:hammerMass>
<diggs:hammerDropHeight howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:hammerDropHeight>
<diggs:hammerEfficiency howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:hammerEfficiency>
<diggs:samplerLength howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:samplerLength>
<diggs:samplerInternalDiameter howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:samplerInternalDiameter>
<diggs:samplerLinerDescription > {0,1} </diggs:samplerLinerDescription>
<diggs:samplerRetainerDescription > {0,1} </diggs:samplerRetainerDescription>
<diggs:rodType codeSpace= "" > {0,1} </diggs:rodType>
<diggs:rodExternalDiameter howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:rodExternalDiameter>
<diggs:rodSectionLength howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:rodSectionLength>
<diggs:rodWeight howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:rodWeight>
<diggs:depthCasing howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:depthCasing>
<diggs:selfWeightPenetration howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:selfWeightPenetration>
<diggs:waterDepth howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:waterDepth>
<diggs:totalPenetration howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:totalPenetration>
</diggs:DynamicProbeTest>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "DynamicProbeTest" type= "diggs:DynamicProbeTestType" abstract= "false" substitutionGroup= "diggs:AbstractInsituTestProcedure" >
<annotation >
<documentation > A dynamic probe test procedure, in which a rod, with or without a sampler, is driven by an impact hammer. The most common examples are the Standard Penetration Test and the Becker Hammer Test. </documentation>
</annotation>
</element>
