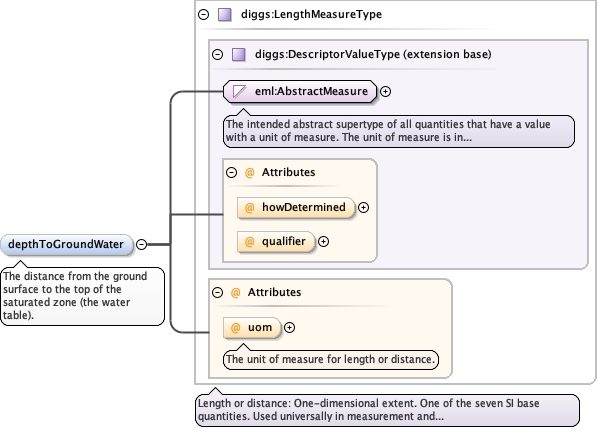

Element diggs:LugeonTestType / diggs:depthToGroundWater
Namespace http://diggsml.org/schemas/3
Annotations

The distance from the ground surface to the top of the saturated
zone (the water table).
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="depthToGroundWater" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The distance from the ground surface to the top of the saturated zone (the water table).</documentation>
  </annotation>
</element>
Element diggs:LugeonTestType / diggs:pressureMeasurementConfiguration
Namespace http://diggsml.org/schemas/3
Annotations

How pressure is measured during the test. Values come from the
enumerated list.
Diagram
DiagramExtProcedures_xsd_Simple_Type_diggs_PressureMeasurementConfigurationEnumType.tmp#PressureMeasurementConfigurationEnumType
Type diggs:PressureMeasurementConfigurationEnumType
Properties
content simple
minOccurs 0
Facets
enumeration pressure gauge
Pressure is measured with a pressure gauge at the ground surface.
enumeration borehole transducer
Pressure is measured with a transducer in the borehole.
Source

<element minOccurs="0" name="pressureMeasurementConfiguration" type="diggs:PressureMeasurementConfigurationEnumType">
  <annotation>
    <documentation>How pressure is measured during the test. Values come from the enumerated list.</documentation>
  </annotation>
</element>

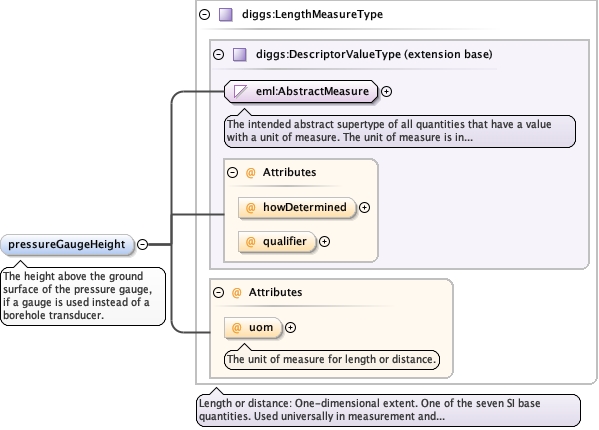

Element diggs:LugeonTestType / diggs:pressureGaugeHeight
Namespace http://diggsml.org/schemas/3
Annotations

The height above the ground surface of the pressure gauge, if a
gauge is used instead of a borehole transducer.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="pressureGaugeHeight" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The height above the ground surface of the pressure gauge, if a gauge is used instead of a borehole transducer.</documentation>
  </annotation>
</element>

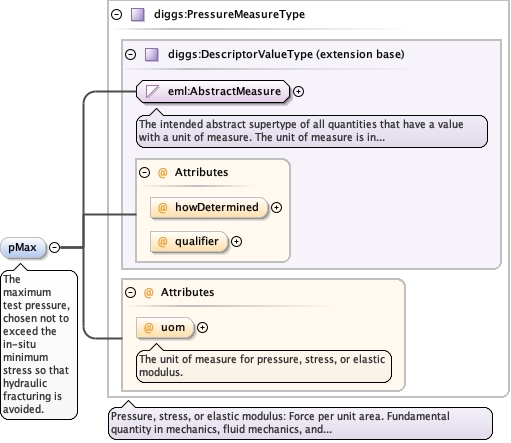

Element diggs:LugeonTestType / diggs:pMax
Namespace http://diggsml.org/schemas/3
Annotations

The maximum test pressure, chosen not to exceed the in-situ minimum
stress so that hydraulic fracturing is avoided.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="pMax" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>The maximum test pressure, chosen not to exceed the in-situ minimum stress so that hydraulic fracturing is avoided.</documentation>
  </annotation>
</element>

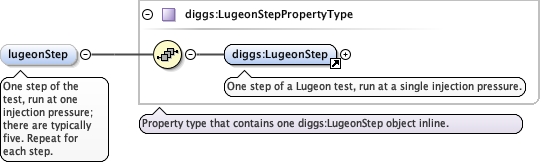

Element diggs:LugeonTestType / diggs:lugeonStep
Namespace http://diggsml.org/schemas/3
Annotations

One step of the test, run at one injection pressure; there are
typically five. Repeat for each step.
Diagram
DiagramExtProcedures_xsd_Element_diggs_LugeonStep.tmp#LugeonStepExtProcedures_xsd_Complex_Type_diggs_LugeonStepPropertyType.tmp#LugeonStepPropertyType
Type diggs:LugeonStepPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:LugeonStep
Instance

<diggs:lugeonStep xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LugeonStep gml:id="">{1,1}</diggs:LugeonStep>
</diggs:lugeonStep>
Source

<element maxOccurs="unbounded" minOccurs="0" name="lugeonStep" type="diggs:LugeonStepPropertyType">
  <annotation>
    <documentation>One step of the test, run at one injection pressure; there are typically five. Repeat for each step.</documentation>
  </annotation>
</element>

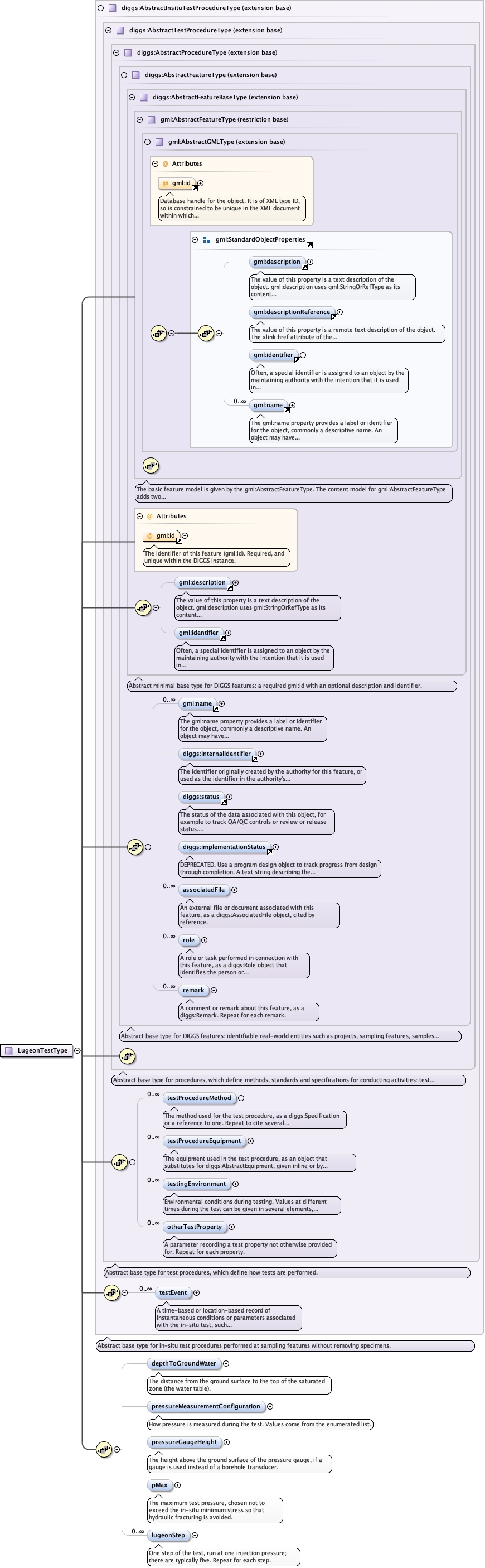

Complex Type diggs:LugeonTestType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_depthToGroundWaterExtProcedures_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_pressureMeasurementConfigurationExtProcedures_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_pressureGaugeHeightExtProcedures_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_pMaxExtProcedures_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_lugeonStep
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Properties
mixed false
Used by
Model
Children diggs:associatedFile, diggs:depthToGroundWater, diggs:implementationStatus, diggs:internalIdentifier, diggs:lugeonStep, diggs:otherTestProperty, diggs:pMax, diggs:pressureGaugeHeight, diggs:pressureMeasurementConfiguration, diggs:remark, diggs:role, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType mixed="false" name="LugeonTestType">
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element minOccurs="0" name="depthToGroundWater" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The distance from the ground surface to the top of the saturated zone (the water table).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pressureMeasurementConfiguration" type="diggs:PressureMeasurementConfigurationEnumType">
          <annotation>
            <documentation>How pressure is measured during the test. Values come from the enumerated list.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pressureGaugeHeight" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The height above the ground surface of the pressure gauge, if a gauge is used instead of a borehole transducer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pMax" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>The maximum test pressure, chosen not to exceed the in-situ minimum stress so that hydraulic fracturing is avoided.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="lugeonStep" type="diggs:LugeonStepPropertyType">
          <annotation>
            <documentation>One step of the test, run at one injection pressure; there are typically five. Repeat for each step.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
