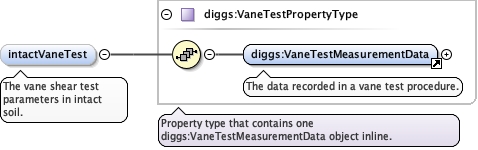

Element diggs:InsituVaneTestType / diggs:intactVaneTest
Namespace http://diggsml.org/schemas/3
Annotations

The vane shear test parameters in intact soil.
Diagram
DiagramCoreProcedures_xsd_Element_diggs_VaneTestMeasurementData.tmp#VaneTestMeasurementDataCoreProcedures_xsd_Complex_Type_diggs_VaneTestPropertyType.tmp#VaneTestPropertyType
Type diggs:VaneTestPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:VaneTestMeasurementData
Instance

<diggs:intactVaneTest xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:VaneTestMeasurementData gml:id="">{1,1}</diggs:VaneTestMeasurementData>
</diggs:intactVaneTest>
Source

<element minOccurs="0" name="intactVaneTest" type="diggs:VaneTestPropertyType">
  <annotation>
    <documentation>The vane shear test parameters in intact soil.</documentation>
  </annotation>
</element>

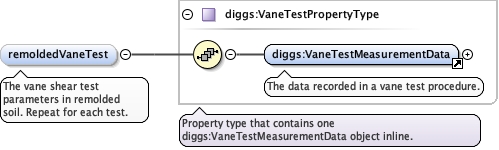

Element diggs:InsituVaneTestType / diggs:remoldedVaneTest
Namespace http://diggsml.org/schemas/3
Annotations

The vane shear test parameters in remolded soil. Repeat for each
test.
Diagram
DiagramCoreProcedures_xsd_Element_diggs_VaneTestMeasurementData.tmp#VaneTestMeasurementDataCoreProcedures_xsd_Complex_Type_diggs_VaneTestPropertyType.tmp#VaneTestPropertyType
Type diggs:VaneTestPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:VaneTestMeasurementData
Instance

<diggs:remoldedVaneTest xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:VaneTestMeasurementData gml:id="">{1,1}</diggs:VaneTestMeasurementData>
</diggs:remoldedVaneTest>
Source

<element minOccurs="0" name="remoldedVaneTest" type="diggs:VaneTestPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>The vane shear test parameters in remolded soil. Repeat for each test.</documentation>
  </annotation>
</element>

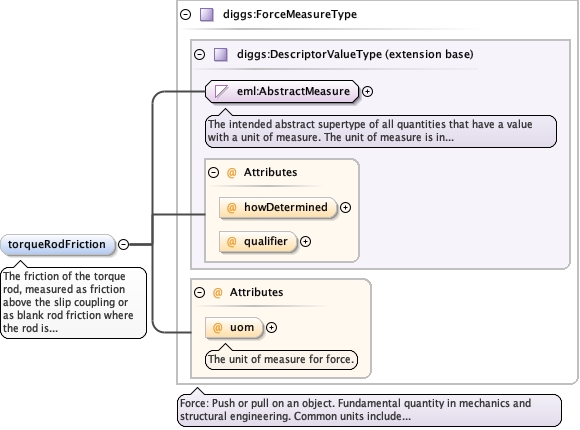

Element diggs:InsituVaneTestType / diggs:torqueRodFriction
Namespace http://diggsml.org/schemas/3
Annotations

The friction of the torque rod, measured as friction above the slip
coupling or as blank rod friction where the rod is in direct contact
with the soil.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Source

<element minOccurs="0" name="torqueRodFriction" type="diggs:ForceMeasureType">
  <annotation>
    <documentation>The friction of the torque rod, measured as friction above the slip coupling or as blank rod friction where the rod is in direct contact with the soil.</documentation>
  </annotation>
</element>

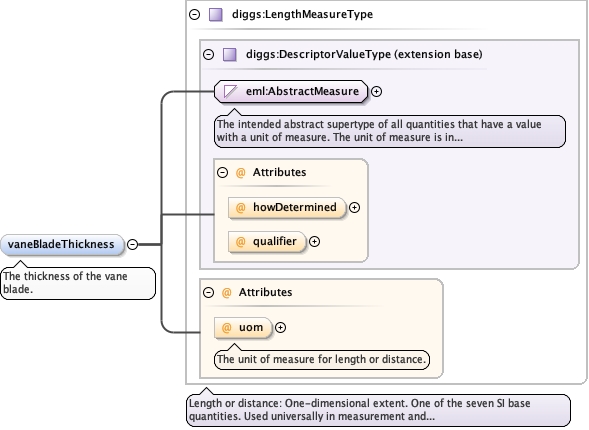

Element diggs:InsituVaneTestType / diggs:vaneBladeThickness
Namespace http://diggsml.org/schemas/3
Annotations

The thickness of the vane blade.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="vaneBladeThickness" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The thickness of the vane blade.</documentation>
  </annotation>
</element>

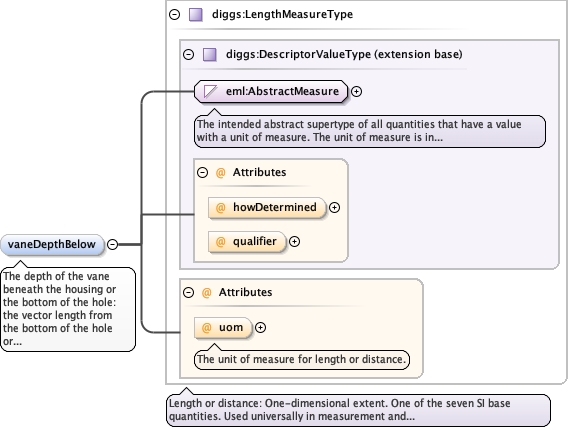

Element diggs:InsituVaneTestType / diggs:vaneDepthBelow
Namespace http://diggsml.org/schemas/3
Annotations

The depth of the vane beneath the housing or the bottom of the hole:
the vector length from the bottom of the hole or housing to the test
location.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="vaneDepthBelow" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The depth of the vane beneath the housing or the bottom of the hole: the vector length from the bottom of the hole or housing to the test location.</documentation>
  </annotation>
</element>

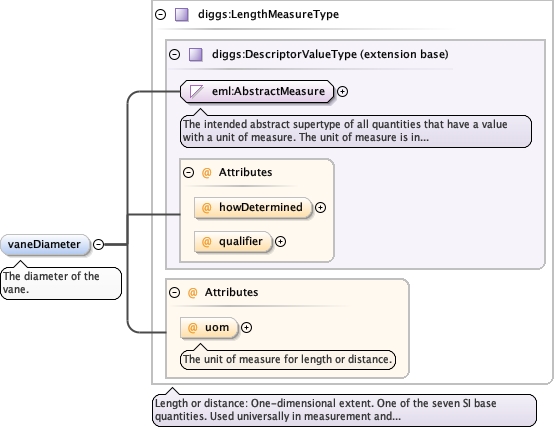

Element diggs:InsituVaneTestType / diggs:vaneDiameter
Namespace http://diggsml.org/schemas/3
Annotations

The diameter of the vane.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="vaneDiameter" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The diameter of the vane.</documentation>
  </annotation>
</element>

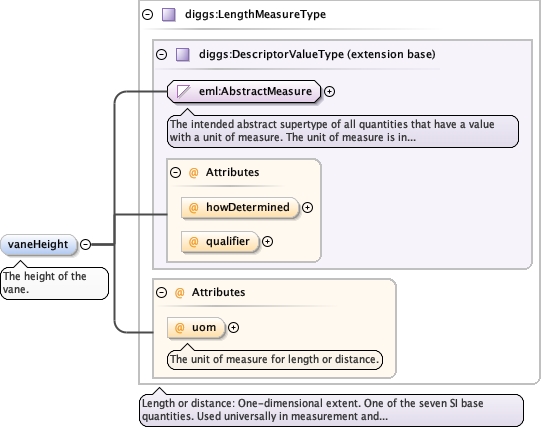

Element diggs:InsituVaneTestType / diggs:vaneHeight
Namespace http://diggsml.org/schemas/3
Annotations

The height of the vane.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="vaneHeight" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The height of the vane.</documentation>
  </annotation>
</element>

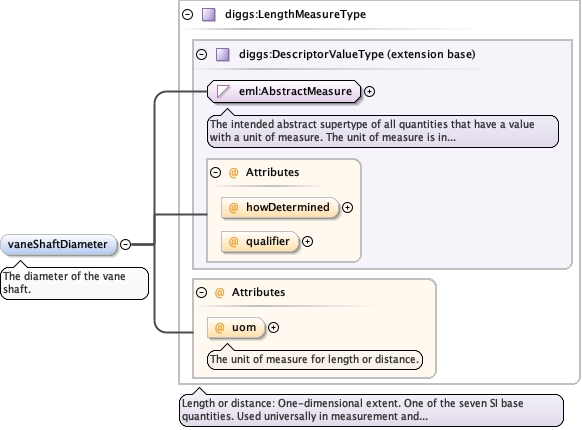

Element diggs:InsituVaneTestType / diggs:vaneShaftDiameter
Namespace http://diggsml.org/schemas/3
Annotations

The diameter of the vane shaft.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="vaneShaftDiameter" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The diameter of the vane shaft.</documentation>
  </annotation>
</element>

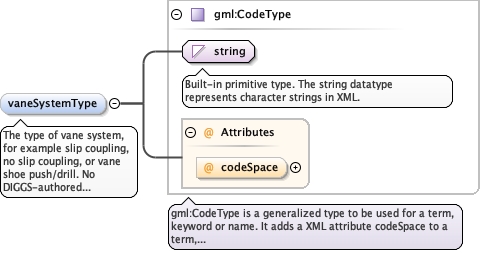

Element diggs:InsituVaneTestType / diggs:vaneSystemType
Namespace http://diggsml.org/schemas/3
Annotations

The type of vane system, for example slip coupling, no slip
coupling, or vane shoe push/drill. No DIGGS-authored dictionary
currently exists for this element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="vaneSystemType" type="gml:CodeType">
  <annotation>
    <documentation>The type of vane system, for example slip coupling, no slip coupling, or vane shoe push/drill. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>

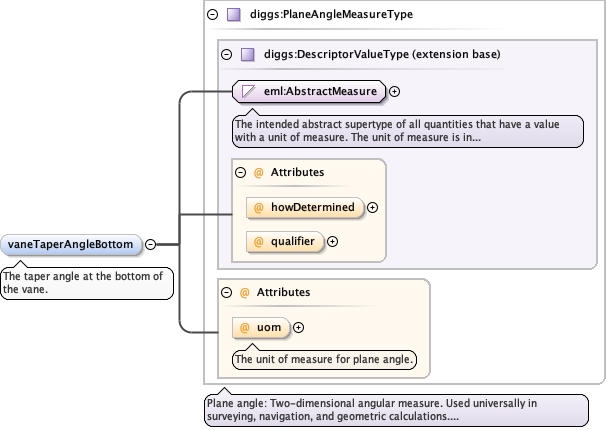

Element diggs:InsituVaneTestType / diggs:vaneTaperAngleBottom
Namespace http://diggsml.org/schemas/3
Annotations

The taper angle at the bottom of the vane.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType
Type diggs:PlaneAngleMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<element minOccurs="0" name="vaneTaperAngleBottom" type="diggs:PlaneAngleMeasureType">
  <annotation>
    <documentation>The taper angle at the bottom of the vane.</documentation>
  </annotation>
</element>

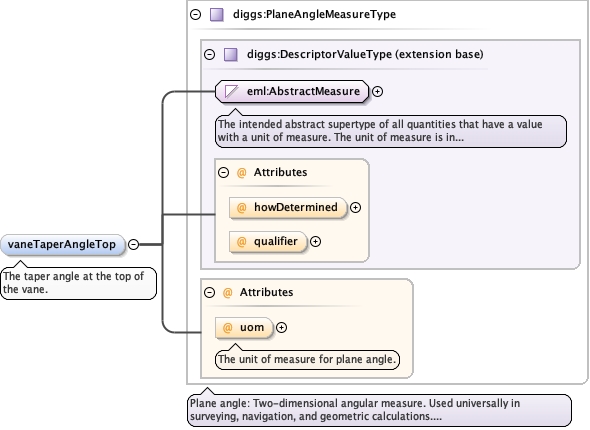

Element diggs:InsituVaneTestType / diggs:vaneTaperAngleTop
Namespace http://diggsml.org/schemas/3
Annotations

The taper angle at the top of the vane.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType
Type diggs:PlaneAngleMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<element minOccurs="0" name="vaneTaperAngleTop" type="diggs:PlaneAngleMeasureType">
  <annotation>
    <documentation>The taper angle at the top of the vane.</documentation>
  </annotation>
</element>

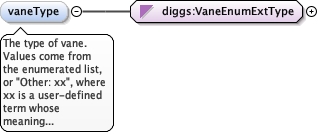

Element diggs:InsituVaneTestType / diggs:vaneType
Namespace http://diggsml.org/schemas/3
Annotations

The type of vane. Values come from the enumerated list, or "Other:
xx", where xx is a user-defined term whose meaning differs from
every listed value (not a synonym of one).
Diagram
DiagramExtProcedures_xsd_Simple_Type_diggs_VaneEnumExtType.tmp#VaneEnumExtType
Type diggs:VaneEnumExtType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="vaneType" type="diggs:VaneEnumExtType">
  <annotation>
    <documentation>The type of vane. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
  </annotation>
</element>

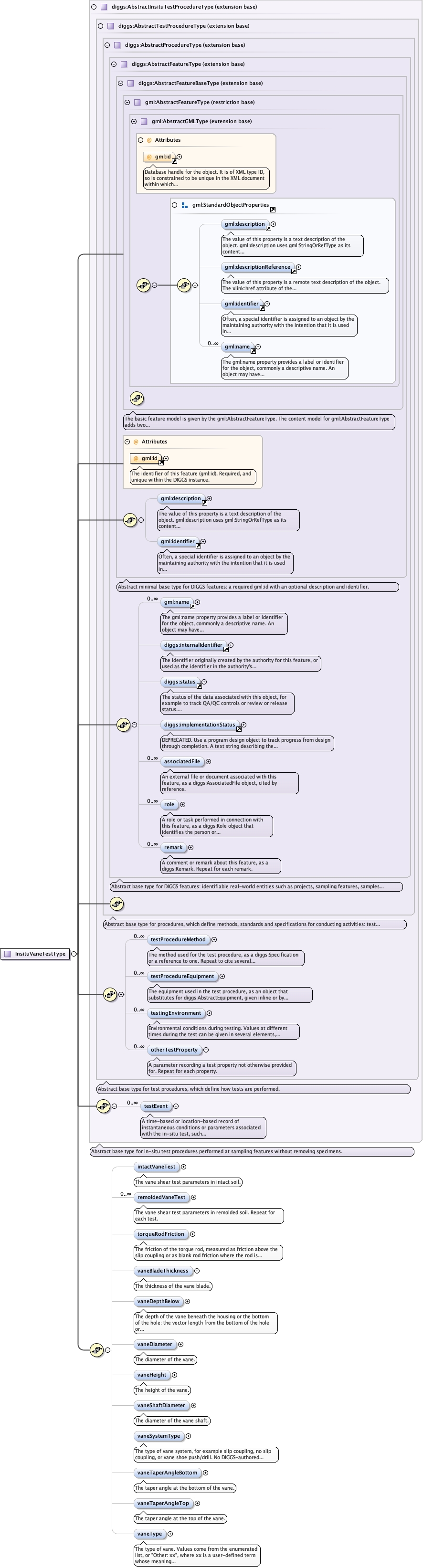

Complex Type diggs:InsituVaneTestType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_intactVaneTestExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_remoldedVaneTestExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_torqueRodFrictionExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneBladeThicknessExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneDepthBelowExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneDiameterExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneHeightExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneShaftDiameterExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneSystemTypeExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneTaperAngleBottomExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneTaperAngleTopExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneType
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:intactVaneTest, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:remoldedVaneTest, diggs:role, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs:torqueRodFriction, diggs:vaneBladeThickness, diggs:vaneDepthBelow, diggs:vaneDiameter, diggs:vaneHeight, diggs:vaneShaftDiameter, diggs:vaneSystemType, diggs:vaneTaperAngleBottom, diggs:vaneTaperAngleTop, diggs:vaneType, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="InsituVaneTestType">
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element minOccurs="0" name="intactVaneTest" type="diggs:VaneTestPropertyType">
          <annotation>
            <documentation>The vane shear test parameters in intact soil.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="remoldedVaneTest" type="diggs:VaneTestPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>The vane shear test parameters in remolded soil. Repeat for each test.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="torqueRodFriction" type="diggs:ForceMeasureType">
          <annotation>
            <documentation>The friction of the torque rod, measured as friction above the slip coupling or as blank rod friction where the rod is in direct contact with the soil.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneBladeThickness" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The thickness of the vane blade.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneDepthBelow" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The depth of the vane beneath the housing or the bottom of the hole: the vector length from the bottom of the hole or housing to the test location.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneDiameter" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The diameter of the vane.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneHeight" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The height of the vane.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneShaftDiameter" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The diameter of the vane shaft.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneSystemType" type="gml:CodeType">
          <annotation>
            <documentation>The type of vane system, for example slip coupling, no slip coupling, or vane shoe push/drill. No DIGGS-authored dictionary currently exists for this element.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneTaperAngleBottom" type="diggs:PlaneAngleMeasureType">
          <annotation>
            <documentation>The taper angle at the bottom of the vane.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneTaperAngleTop" type="diggs:PlaneAngleMeasureType">
          <annotation>
            <documentation>The taper angle at the top of the vane.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneType" type="diggs:VaneEnumExtType">
          <annotation>
            <documentation>The type of vane. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
