Element diggs:MixedGrout-SoilSpecificationType / diggs:mixedGrout-SoilSampleRef
Namespace http://diggsml.org/schemas/3
Annotations

A pointer to the mixed grout-soil sample (GroutBatch)
that is used as the model for the specification. Typically this is
the sample tested for a strength value that meets the specified
minimum strength value.

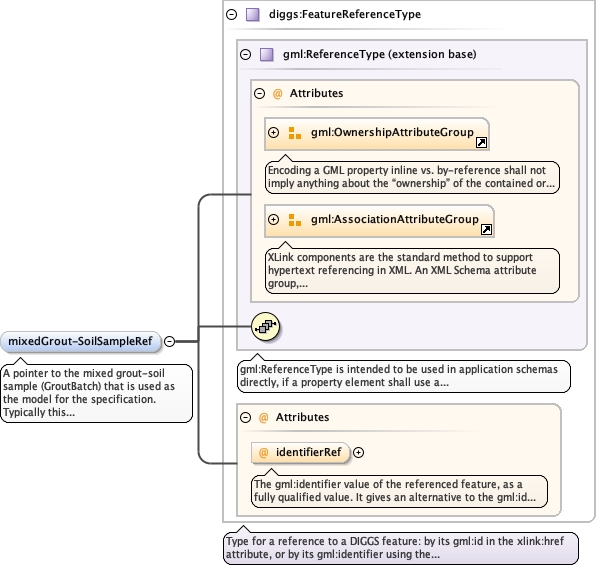

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Attributes
QName Type Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element minOccurs="0" name="mixedGrout-SoilSampleRef" type="diggs:FeatureReferenceType">
  <annotation>
    <documentation>A pointer to the mixed grout-soil sample (GroutBatch) that is used as the model for the specification. Typically this is the sample tested for a strength value that meets the specified minimum strength value.</documentation>
  </annotation>
</element>
Element diggs:MixedGrout-SoilSpecificationType / diggs:strengthMinimum
Namespace http://diggsml.org/schemas/3
Annotations

Minimum allowable strength for a grout-soil
mix

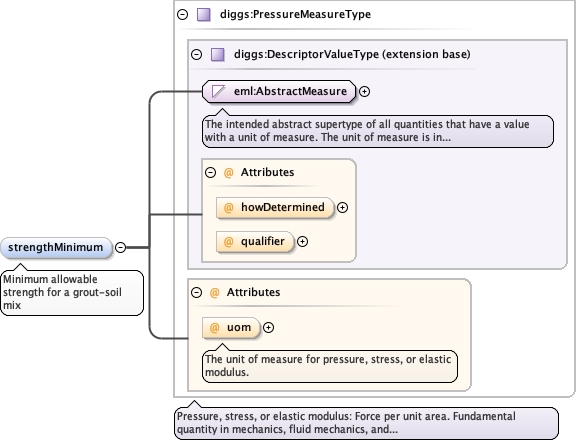

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="strengthMinimum" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>Minimum allowable strength for a grout-soil mix</documentation>
  </annotation>
</element>
Element diggs:MixedGrout-SoilSpecificationType / diggs:bkadeRotationNumber
Namespace http://diggsml.org/schemas/3
Annotations

The specified or target blade rotation
number
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="bkadeRotationNumber" type="positiveInteger">
  <annotation>
    <documentation>The specified or target blade rotation number</documentation>
  </annotation>
</element>
Element diggs:MixedGrout-SoilSpecificationType / diggs:volumeRatio
Namespace http://diggsml.org/schemas/3
Annotations

Volume ratio of mixed soil

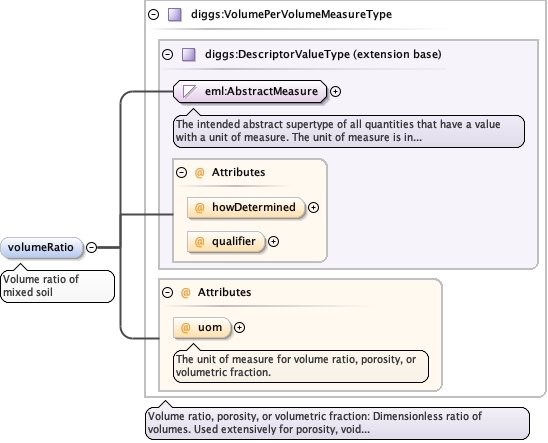

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerVolumeMeasureType.tmp#VolumePerVolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerVolumeMeasureType.tmp#VolumePerVolumeMeasureType
Type diggs:VolumePerVolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerVolumeUomEnumType optional
The unit of measure for volume ratio, porosity, or volumetric fraction.
Source

<element minOccurs="0" name="volumeRatio" type="diggs:VolumePerVolumeMeasureType">
  <annotation>
    <documentation>Volume ratio of mixed soil</documentation>
  </annotation>
</element>
Element diggs:MixedGrout-SoilSpecificationType / diggs:binderFactor
Namespace http://diggsml.org/schemas/3
Annotations

Binder factor expressed in terms of volume ratio and dry
unit weight of slurry.

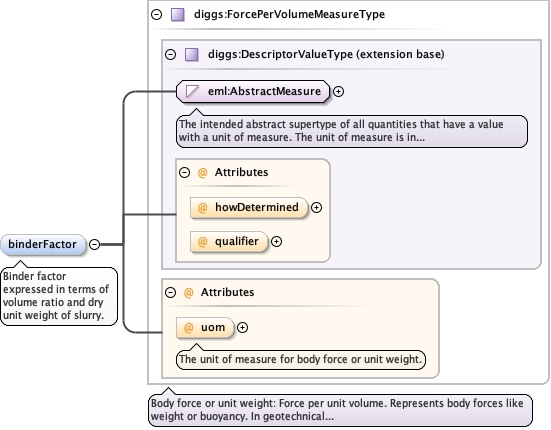

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerVolumeMeasureType.tmp#ForcePerVolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerVolumeMeasureType.tmp#ForcePerVolumeMeasureType
Type diggs:ForcePerVolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerVolumeUomEnumType optional
The unit of measure for body force or unit weight.
Source

<element minOccurs="0" name="binderFactor" type="diggs:ForcePerVolumeMeasureType">
  <annotation>
    <documentation>Binder factor expressed in terms of volume ratio and dry unit weight of slurry.</documentation>
  </annotation>
</element>
Element diggs:MixedGrout-SoilSpecificationType / diggs:binderFactorInPlace
Namespace http://diggsml.org/schemas/3
Annotations

Ratio of weight of cement used in the grout mix to the
volume soil in the grout-soil mix, for the specified
saturation

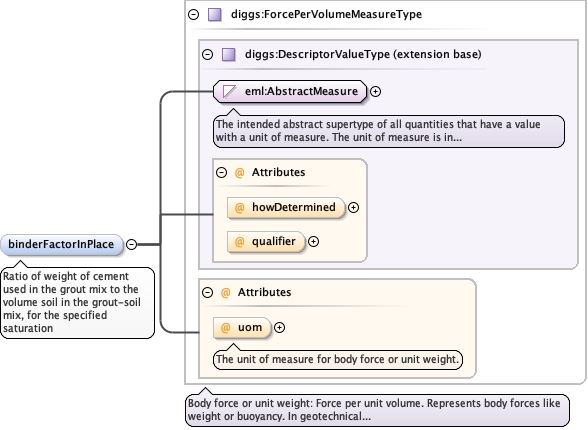

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerVolumeMeasureType.tmp#ForcePerVolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerVolumeMeasureType.tmp#ForcePerVolumeMeasureType
Type diggs:ForcePerVolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerVolumeUomEnumType optional
The unit of measure for body force or unit weight.
Source

<element minOccurs="0" name="binderFactorInPlace" type="diggs:ForcePerVolumeMeasureType">
  <annotation>
    <documentation>Ratio of weight of cement used in the grout mix to the volume soil in the grout-soil mix, for the specified saturation</documentation>
  </annotation>
</element>
Element diggs:MixedGrout-SoilSpecificationType / diggs:binderContent
Namespace http://diggsml.org/schemas/3
Annotations

Binder content of mixed soil, equal to the ratio of dry
unit weights of the soil and slurry times the volume
ratio.

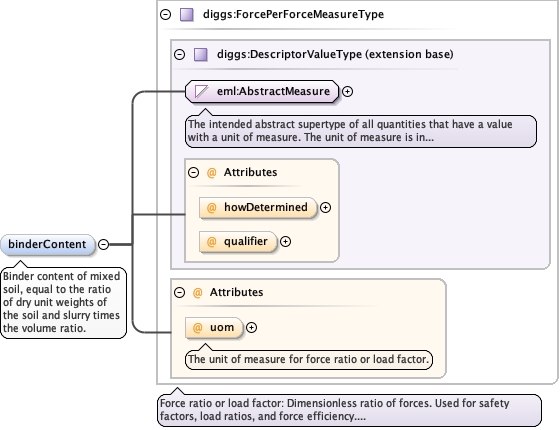

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType
Type diggs:ForcePerForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerForceUomEnumType optional
The unit of measure for force ratio or load factor.
Source

<element minOccurs="0" name="binderContent" type="diggs:ForcePerForceMeasureType">
  <annotation>
    <documentation>Binder content of mixed soil, equal to the ratio of dry unit weights of the soil and slurry times the volume ratio.</documentation>
  </annotation>
</element>
Element diggs:MixedGrout-SoilSpecificationType / diggs:totalWaterBinderRatio
Namespace http://diggsml.org/schemas/3
Annotations

Total water to binder ratio of mixed
soil.

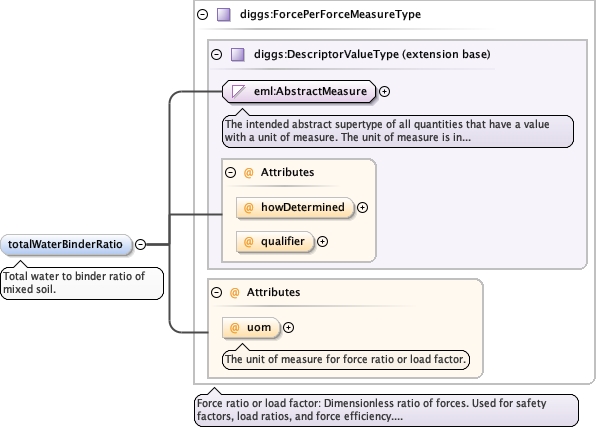

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType
Type diggs:ForcePerForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerForceUomEnumType optional
The unit of measure for force ratio or load factor.
Source

<element minOccurs="0" name="totalWaterBinderRatio" type="diggs:ForcePerForceMeasureType">
  <annotation>
    <documentation>Total water to binder ratio of mixed soil.</documentation>
  </annotation>
</element>
Complex Type diggs:MixedGrout-SoilSpecificationType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractProgramSpecificationType. Adds elements for mixed grout soil specification type definition.

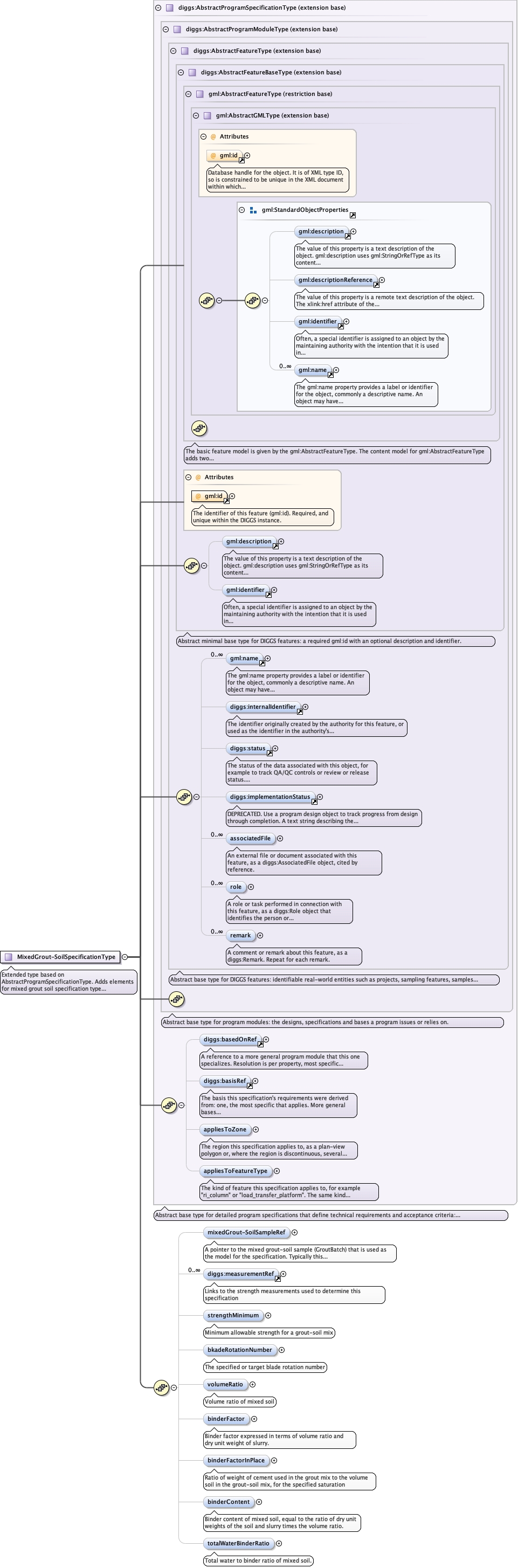

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramModuleType.tmp#AbstractProgramModuleTypeCommon_xsd_Element_diggs_basedOnRef.tmp#basedOnRefCommon_xsd_Element_diggs_basisRef.tmp#basisRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramSpecificationType.tmp#AbstractProgramSpecificationType_appliesToZoneAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramSpecificationType.tmp#AbstractProgramSpecificationType_appliesToFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramSpecificationType.tmp#AbstractProgramSpecificationTypeGrouting_xsd_Complex_Type_diggs_MixedGrout-SoilSpecificationType.tmp#MixedGrout-SoilSpecificationType_mixedGrout-SoilSampleRefCommon_xsd_Element_diggs_measurementRef.tmp#measurementRefGrouting_xsd_Complex_Type_diggs_MixedGrout-SoilSpecificationType.tmp#MixedGrout-SoilSpecificationType_strengthMinimumGrouting_xsd_Complex_Type_diggs_MixedGrout-SoilSpecificationType.tmp#MixedGrout-SoilSpecificationType_bkadeRotationNumberGrouting_xsd_Complex_Type_diggs_MixedGrout-SoilSpecificationType.tmp#MixedGrout-SoilSpecificationType_volumeRatioGrouting_xsd_Complex_Type_diggs_MixedGrout-SoilSpecificationType.tmp#MixedGrout-SoilSpecificationType_binderFactorGrouting_xsd_Complex_Type_diggs_MixedGrout-SoilSpecificationType.tmp#MixedGrout-SoilSpecificationType_binderFactorInPlaceGrouting_xsd_Complex_Type_diggs_MixedGrout-SoilSpecificationType.tmp#MixedGrout-SoilSpecificationType_binderContentGrouting_xsd_Complex_Type_diggs_MixedGrout-SoilSpecificationType.tmp#MixedGrout-SoilSpecificationType_totalWaterBinderRatio
Type extension of diggs:AbstractProgramSpecificationType
Type hierarchy
Used by
Model
Children diggs:appliesToFeatureType, diggs:appliesToZone, diggs:associatedFile, diggs:basedOnRef, diggs:basisRef, diggs:binderContent, diggs:binderFactor, diggs:binderFactorInPlace, diggs:bkadeRotationNumber, diggs:implementationStatus, diggs:internalIdentifier, diggs:measurementRef, diggs:mixedGrout-SoilSampleRef, diggs:remark, diggs:role, diggs:status, diggs:strengthMinimum, diggs:totalWaterBinderRatio, diggs:volumeRatio, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="MixedGrout-SoilSpecificationType">
  <annotation>
    <documentation>Extended type based on AbstractProgramSpecificationType. Adds elements for mixed grout soil specification type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProgramSpecificationType">
      <sequence>
        <element minOccurs="0" name="mixedGrout-SoilSampleRef" type="diggs:FeatureReferenceType">
          <annotation>
            <documentation>A pointer to the mixed grout-soil sample (GroutBatch) that is used as the model for the specification. Typically this is the sample tested for a strength value that meets the specified minimum strength value.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" ref="diggs:measurementRef" maxOccurs="unbounded">
          <annotation>
            <documentation>Links to the strength measurements used to determine this specification</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="strengthMinimum" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>Minimum allowable strength for a grout-soil mix</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="bkadeRotationNumber" type="positiveInteger">
          <annotation>
            <documentation>The specified or target blade rotation number</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="volumeRatio" type="diggs:VolumePerVolumeMeasureType">
          <annotation>
            <documentation>Volume ratio of mixed soil</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="binderFactor" type="diggs:ForcePerVolumeMeasureType">
          <annotation>
            <documentation>Binder factor expressed in terms of volume ratio and dry unit weight of slurry.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="binderFactorInPlace" type="diggs:ForcePerVolumeMeasureType">
          <annotation>
            <documentation>Ratio of weight of cement used in the grout mix to the volume soil in the grout-soil mix, for the specified saturation</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="binderContent" type="diggs:ForcePerForceMeasureType">
          <annotation>
            <documentation>Binder content of mixed soil, equal to the ratio of dry unit weights of the soil and slurry times the volume ratio.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalWaterBinderRatio" type="diggs:ForcePerForceMeasureType">
          <annotation>
            <documentation>Total water to binder ratio of mixed soil.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
