Element diggs:SourceLocationsType / diggs:sourceRef
Namespace http://diggsml.org/schemas/3
Annotations

A reference to a GP_Source object's gml:ID. At least one
GP_Source object must exist. If multiple sourceRef properties are
used the sourceLocations property must contain either a
MultiPointLocation or RectifiedGrid object and the order of the
tuples must correspond with the order of the sourceRef properties
within the instance.

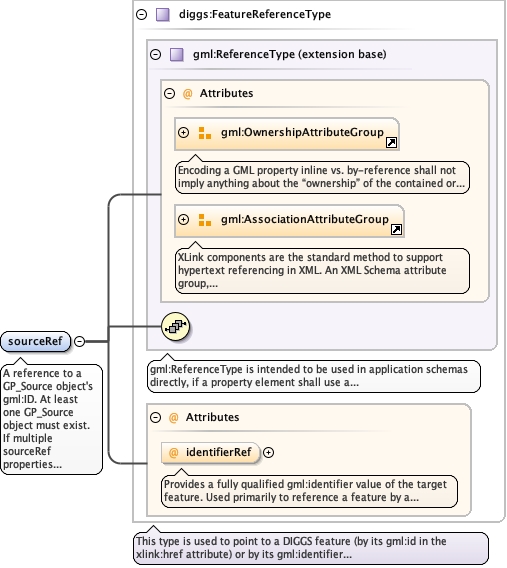

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
maxOccurs unbounded
Model
Attributes
QName Type Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element maxOccurs="unbounded" name="sourceRef" type="diggs:FeatureReferenceType">
  <annotation>
    <documentation>A reference to a GP_Source object's gml:ID. At least one GP_Source object must exist. If multiple sourceRef properties are used the sourceLocations property must contain either a MultiPointLocation or RectifiedGrid object and the order of the tuples must correspond with the order of the sourceRef properties within the instance.</documentation>
  </annotation>
</element>
Element diggs:SourceLocationsType / diggs:locations
Namespace http://diggsml.org/schemas/3
Annotations

One of several point style geometries (PointLocation,
MultiPoint,RectifiedGrid) defining the location of the sources used
in this configuration.

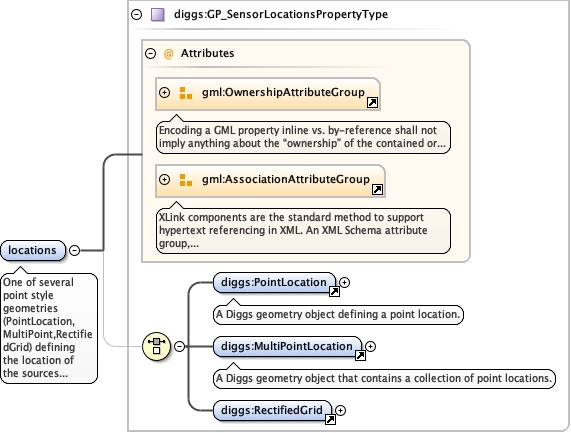

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCore_xsd_Element_diggs_PointLocation.tmp#PointLocationCore_xsd_Element_diggs_MultiPointLocation.tmp#MultiPointLocationCore_xsd_Element_diggs_RectifiedGrid.tmp#http___diggsml.org_schemas_3_RectifiedGridGeophysics_xsd_Complex_Type_diggs_GP_SensorLocationsPropertyType.tmp#GP_SensorLocationsPropertyType
Type diggs:GP_SensorLocationsPropertyType
Type hierarchy
Properties
content complex
Model
Children diggs:MultiPointLocation, diggs:PointLocation, diggs:RectifiedGrid
Instance

<diggs:locations owns="false" xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
  <diggs:MultiPointLocation aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:MultiPointLocation>
  <diggs:RectifiedGrid axisLabels="" dimension="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:RectifiedGrid>
</diggs:locations>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="locations" type="diggs:GP_SensorLocationsPropertyType">
  <annotation>
    <documentation>One of several point style geometries (PointLocation, MultiPoint,RectifiedGrid) defining the location of the sources used in this configuration.</documentation>
  </annotation>
</element>
Complex Type diggs:SourceLocationsType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractObjectType. Adds elements for source locations type definition.

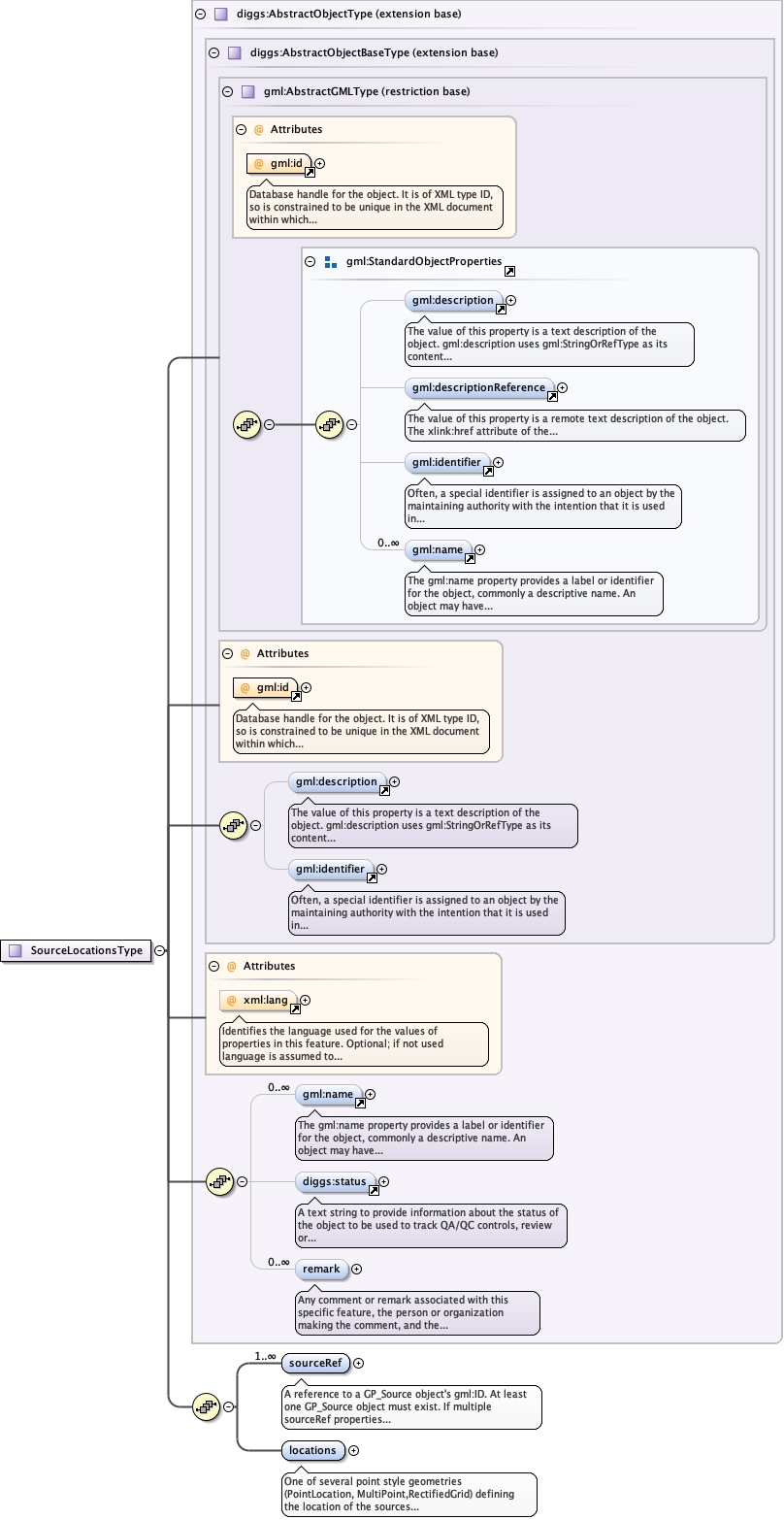

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeGeophysics_xsd_Complex_Type_diggs_SourceLocationsType.tmp#SourceLocationsType_sourceRefGeophysics_xsd_Complex_Type_diggs_SourceLocationsType.tmp#SourceLocationsType_locations
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:locations, diggs:remark, diggs:sourceRef, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="SourceLocationsType">
  <annotation>
    <documentation>Extended type based on AbstractObjectType. Adds elements for source locations type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element maxOccurs="unbounded" name="sourceRef" type="diggs:FeatureReferenceType">
          <annotation>
            <documentation>A reference to a GP_Source object's gml:ID. At least one GP_Source object must exist. If multiple sourceRef properties are used the sourceLocations property must contain either a MultiPointLocation or RectifiedGrid object and the order of the tuples must correspond with the order of the sourceRef properties within the instance.</documentation>
          </annotation>
        </element>
        <element name="locations" type="diggs:GP_SensorLocationsPropertyType">
          <annotation>
            <documentation>One of several point style geometries (PointLocation, MultiPoint,RectifiedGrid) defining the location of the sources used in this configuration.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
