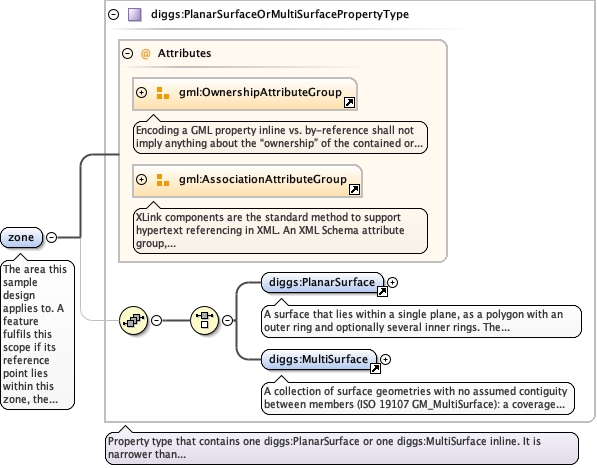

Element diggs:SampleDesignScopeType / diggs:zone
Namespace http://diggsml.org/schemas/3
Annotations

The area this sample design applies to. A feature fulfils this
scope if its reference point lies within this zone, the same
test diggs:SFDesignScopeType/zone applies.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PlanarSurface.tmp#PlanarSurfaceCore_xsd_Element_diggs_MultiSurface.tmp#MultiSurfaceCore_xsd_Complex_Type_diggs_PlanarSurfaceOrMultiSurfacePropertyType.tmp#PlanarSurfaceOrMultiSurfacePropertyType
Type diggs:PlanarSurfaceOrMultiSurfacePropertyType
Properties
content complex
Model
Children diggs:MultiSurface, diggs:PlanarSurface
Instance

<diggs:zone xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PlanarSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PlanarSurface>
  <diggs:MultiSurface aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:MultiSurface>
</diggs:zone>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="zone" type="diggs:PlanarSurfaceOrMultiSurfacePropertyType">
  <annotation>
    <documentation>The area this sample design applies to. A feature fulfils this scope if its reference point lies within this zone, the same test diggs:SFDesignScopeType/zone applies.</documentation>
  </annotation>
</element>

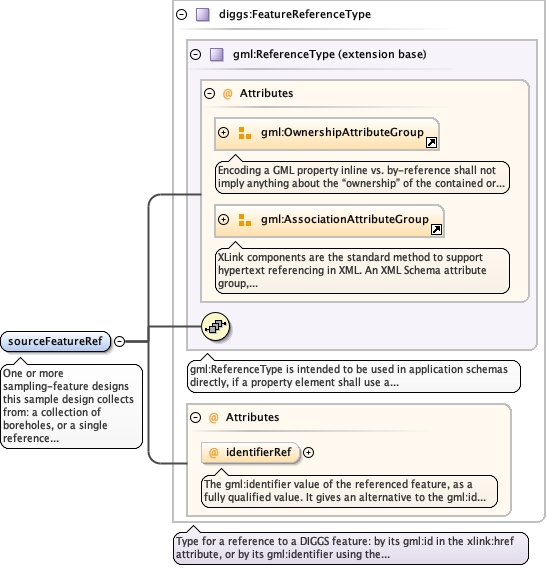

Element diggs:SampleDesignScopeType / diggs:sourceFeatureRef
Namespace http://diggsml.org/schemas/3
Annotations

One or more sampling-feature designs this sample design collects
from: a collection of boreholes, or a single reference for a
specific one. This is plan-to-plan: it cites a
diggs:AbstractSamplingFeatureDesign or a specialization (for
example diggs:DesignBorehole or diggs:DesignInstallation), an
antecedent within the plan graph, never a realized sampling
feature.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
maxOccurs unbounded
Model
Attributes
QName Type Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element maxOccurs="unbounded" name="sourceFeatureRef" type="diggs:FeatureReferenceType">
  <annotation>
    <appinfo source="urn:x-gml:targetElement">diggs:AbstractSamplingFeatureDesign</appinfo>
    <documentation>One or more sampling-feature designs this sample design collects from: a collection of boreholes, or a single reference for a specific one. This is plan-to-plan: it cites a diggs:AbstractSamplingFeatureDesign or a specialization (for example diggs:DesignBorehole or diggs:DesignInstallation), an antecedent within the plan graph, never a realized sampling feature.</documentation>
  </annotation>
</element>

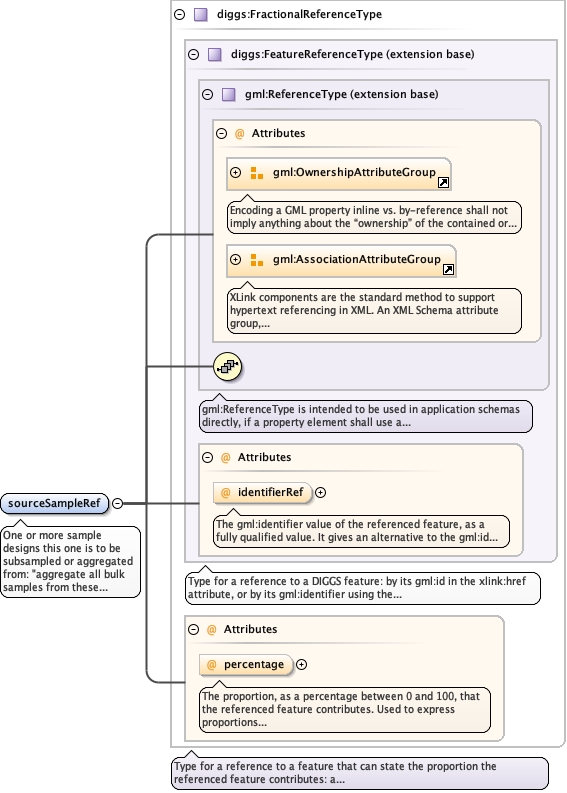

Element diggs:SampleDesignScopeType / diggs:sourceSampleRef
Namespace http://diggsml.org/schemas/3
Annotations

One or more sample designs this one is to be subsampled or
aggregated from: "aggregate all bulk samples from these three
test pits" cites the sample designs of the source pits, not the
pits. This is plan-to-plan: it cites a diggs:DesignSample, an
antecedent within the plan graph, never a realized sample.
Meaningful only where the activityType of the host design is
aggregate or subsample; the schema cannot enforce that
correlation.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceTypeCommon_xsd_Complex_Type_diggs_FractionalReferenceType.tmp#FractionalReferenceType_percentageCommon_xsd_Complex_Type_diggs_FractionalReferenceType.tmp#FractionalReferenceType
Type diggs:FractionalReferenceType
Type hierarchy
Properties
content complex
maxOccurs unbounded
Model
Attributes
QName Type Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
The gml:identifier value of the referenced feature, as a fully qualified
value. It gives an alternative to the gml:id in xlink:href for finding
the referenced feature, mainly to reference a feature by a globally
unique identifier and where naming conflicts occur with gml:id when
accessing data in external files.
nilReason gml:NilReasonType optional
owns boolean false optional
percentage diggs:Val0-100Type optional
The proportion, as a percentage between 0 and 100, that the referenced
feature contributes. Used to express proportions or composition.
xlink:href anyURI optional
Source

<element maxOccurs="unbounded" name="sourceSampleRef" type="diggs:FractionalReferenceType">
  <annotation>
    <appinfo source="urn:x-gml:targetElement">diggs:DesignSample</appinfo>
    <documentation>One or more sample designs this one is to be subsampled or aggregated from: "aggregate all bulk samples from these three test pits" cites the sample designs of the source pits, not the pits. This is plan-to-plan: it cites a diggs:DesignSample, an antecedent within the plan graph, never a realized sample. Meaningful only where the activityType of the host design is aggregate or subsample; the schema cannot enforce that correlation.</documentation>
  </annotation>
</element>

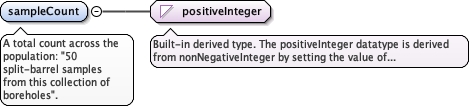

Element diggs:SampleDesignScopeType / diggs:sampleCount
Namespace http://diggsml.org/schemas/3
Annotations

A total count across the population: "50 split-barrel samples
from this collection of boreholes".
Diagram
Diagram
Type positiveInteger
Properties
content simple
Source

<element name="sampleCount" type="positiveInteger">
  <annotation>
    <documentation>A total count across the population: "50 split-barrel samples from this collection of boreholes".</documentation>
  </annotation>
</element>
Element diggs:SampleDesignScopeType / diggs:samplingInterval
Namespace http://diggsml.org/schemas/3
Annotations

A regular spacing along each referenced feature, optionally
bounded: "every 5 ft", or "every 5 ft between 2 m and 20 m".
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCommon_xsd_Element_diggs_SamplingInterval.tmp#SamplingIntervalCommon_xsd_Complex_Type_diggs_SamplingIntervalPropertyType.tmp#SamplingIntervalPropertyType
Type diggs:SamplingIntervalPropertyType
Properties
content complex
Model
Children diggs:SamplingInterval
Instance

<diggs:samplingInterval xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:SamplingInterval gml:id="">{1,1}</diggs:SamplingInterval>
</diggs:samplingInterval>
Attributes
QName Type Use
nilReason gml:NilReasonType optional
xlink:href anyURI optional
Source

<element name="samplingInterval" type="diggs:SamplingIntervalPropertyType">
  <annotation>
    <documentation>A regular spacing along each referenced feature, optionally bounded: "every 5 ft", or "every 5 ft between 2 m and 20 m".</documentation>
  </annotation>
</element>

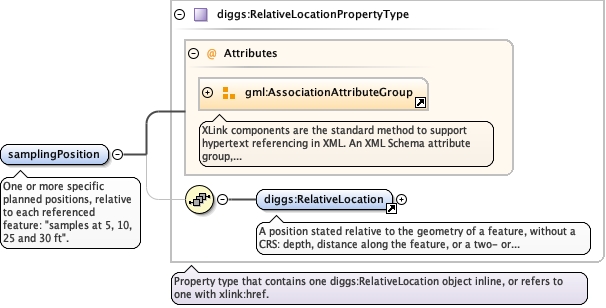

Element diggs:SampleDesignScopeType / diggs:samplingPosition
Namespace http://diggsml.org/schemas/3
Annotations

One or more specific planned positions, relative to each
referenced feature: "samples at 5, 10, 25 and 30 ft".
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCommon_xsd_Element_diggs_RelativeLocation.tmp#RelativeLocationCommon_xsd_Complex_Type_diggs_RelativeLocationPropertyType.tmp#RelativeLocationPropertyType
Type diggs:RelativeLocationPropertyType
Properties
content complex
Model
Children diggs:RelativeLocation
Instance

<diggs:samplingPosition xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:RelativeLocation gml:id="">{1,1}</diggs:RelativeLocation>
</diggs:samplingPosition>
Attributes
QName Type Use
nilReason gml:NilReasonType optional
xlink:href anyURI optional
Source

<element name="samplingPosition" type="diggs:RelativeLocationPropertyType">
  <annotation>
    <documentation>One or more specific planned positions, relative to each referenced feature: "samples at 5, 10, 25 and 30 ft".</documentation>
  </annotation>
</element>

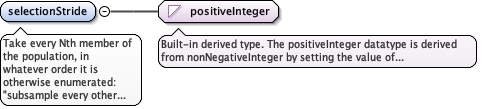

Element diggs:SampleDesignScopeType / diggs:selectionStride
Namespace http://diggsml.org/schemas/3
Annotations

Take every Nth member of the population, in whatever order it is
otherwise enumerated: "subsample every other split-barrel
sample" is a stride of 2. Meaningful only for a sourceSampleRef
or sourceFeatureRef population with an inherent order;
meaningless for zone, which has none.
Diagram
Diagram
Type positiveInteger
Properties
content simple
Source

<element name="selectionStride" type="positiveInteger">
  <annotation>
    <documentation>Take every Nth member of the population, in whatever order it is otherwise enumerated: "subsample every other split-barrel sample" is a stride of 2. Meaningful only for a sourceSampleRef or sourceFeatureRef population with an inherent order; meaningless for zone, which has none.</documentation>
  </annotation>
</element>

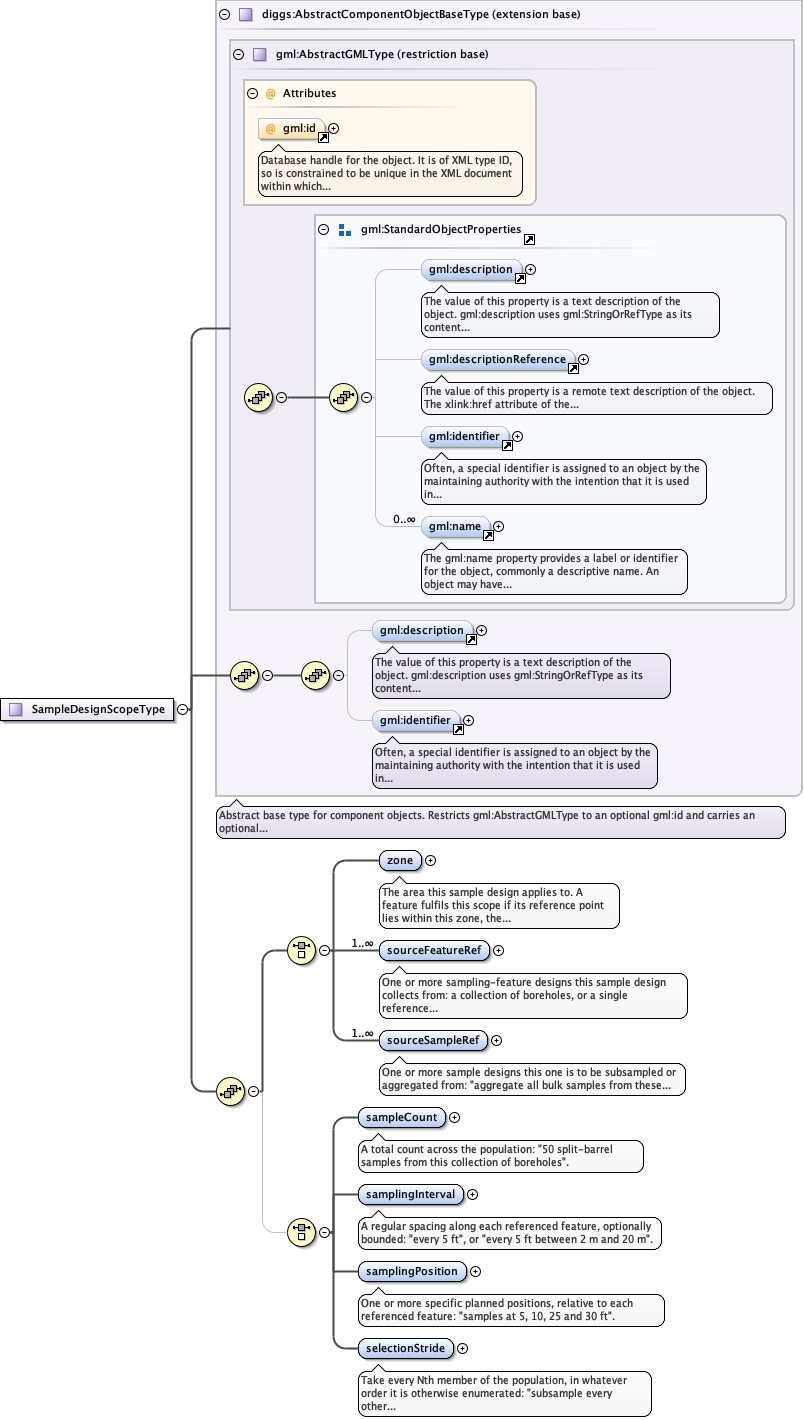

Complex Type diggs:SampleDesignScopeType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCommon_xsd_Complex_Type_diggs_SampleDesignScopeType.tmp#SampleDesignScopeType_zoneCommon_xsd_Complex_Type_diggs_SampleDesignScopeType.tmp#SampleDesignScopeType_sourceFeatureRefCommon_xsd_Complex_Type_diggs_SampleDesignScopeType.tmp#SampleDesignScopeType_sourceSampleRefCommon_xsd_Complex_Type_diggs_SampleDesignScopeType.tmp#SampleDesignScopeType_sampleCountCommon_xsd_Complex_Type_diggs_SampleDesignScopeType.tmp#SampleDesignScopeType_samplingIntervalCommon_xsd_Complex_Type_diggs_SampleDesignScopeType.tmp#SampleDesignScopeType_samplingPositionCommon_xsd_Complex_Type_diggs_SampleDesignScopeType.tmp#SampleDesignScopeType_selectionStride
Type extension of diggs:AbstractComponentObjectBaseType
Type hierarchy
Used by
Model
Children diggs:sampleCount, diggs:samplingInterval, diggs:samplingPosition, diggs:selectionStride, diggs:sourceFeatureRef, diggs:sourceSampleRef, diggs:zone, gml:description, gml:identifier
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="SampleDesignScopeType">
  <complexContent>
    <extension base="diggs:AbstractComponentObjectBaseType">
      <sequence>
        <choice>
          <element name="zone" type="diggs:PlanarSurfaceOrMultiSurfacePropertyType">
            <annotation>
              <documentation>The area this sample design applies to. A feature fulfils this scope if its reference point lies within this zone, the same test diggs:SFDesignScopeType/zone applies.</documentation>
            </annotation>
          </element>
          <element maxOccurs="unbounded" name="sourceFeatureRef" type="diggs:FeatureReferenceType">
            <annotation>
              <appinfo source="urn:x-gml:targetElement">diggs:AbstractSamplingFeatureDesign</appinfo>
              <documentation>One or more sampling-feature designs this sample design collects from: a collection of boreholes, or a single reference for a specific one. This is plan-to-plan: it cites a diggs:AbstractSamplingFeatureDesign or a specialization (for example diggs:DesignBorehole or diggs:DesignInstallation), an antecedent within the plan graph, never a realized sampling feature.</documentation>
            </annotation>
          </element>
          <element maxOccurs="unbounded" name="sourceSampleRef" type="diggs:FractionalReferenceType">
            <annotation>
              <appinfo source="urn:x-gml:targetElement">diggs:DesignSample</appinfo>
              <documentation>One or more sample designs this one is to be subsampled or aggregated from: "aggregate all bulk samples from these three test pits" cites the sample designs of the source pits, not the pits. This is plan-to-plan: it cites a diggs:DesignSample, an antecedent within the plan graph, never a realized sample. Meaningful only where the activityType of the host design is aggregate or subsample; the schema cannot enforce that correlation.</documentation>
            </annotation>
          </element>
        </choice>
        <choice minOccurs="0">
          <element name="sampleCount" type="positiveInteger">
            <annotation>
              <documentation>A total count across the population: "50 split-barrel samples from this collection of boreholes".</documentation>
            </annotation>
          </element>
          <element name="samplingInterval" type="diggs:SamplingIntervalPropertyType">
            <annotation>
              <documentation>A regular spacing along each referenced feature, optionally bounded: "every 5 ft", or "every 5 ft between 2 m and 20 m".</documentation>
            </annotation>
          </element>
          <element name="samplingPosition" type="diggs:RelativeLocationPropertyType">
            <annotation>
              <documentation>One or more specific planned positions, relative to each referenced feature: "samples at 5, 10, 25 and 30 ft".</documentation>
            </annotation>
          </element>
          <element name="selectionStride" type="positiveInteger">
            <annotation>
              <documentation>Take every Nth member of the population, in whatever order it is otherwise enumerated: "subsample every other split-barrel sample" is a stride of 2. Meaningful only for a sourceSampleRef or sourceFeatureRef population with an inherent order; meaningless for zone, which has none.</documentation>
            </annotation>
          </element>
        </choice>
      </sequence>
    </extension>
  </complexContent>
</complexType>
